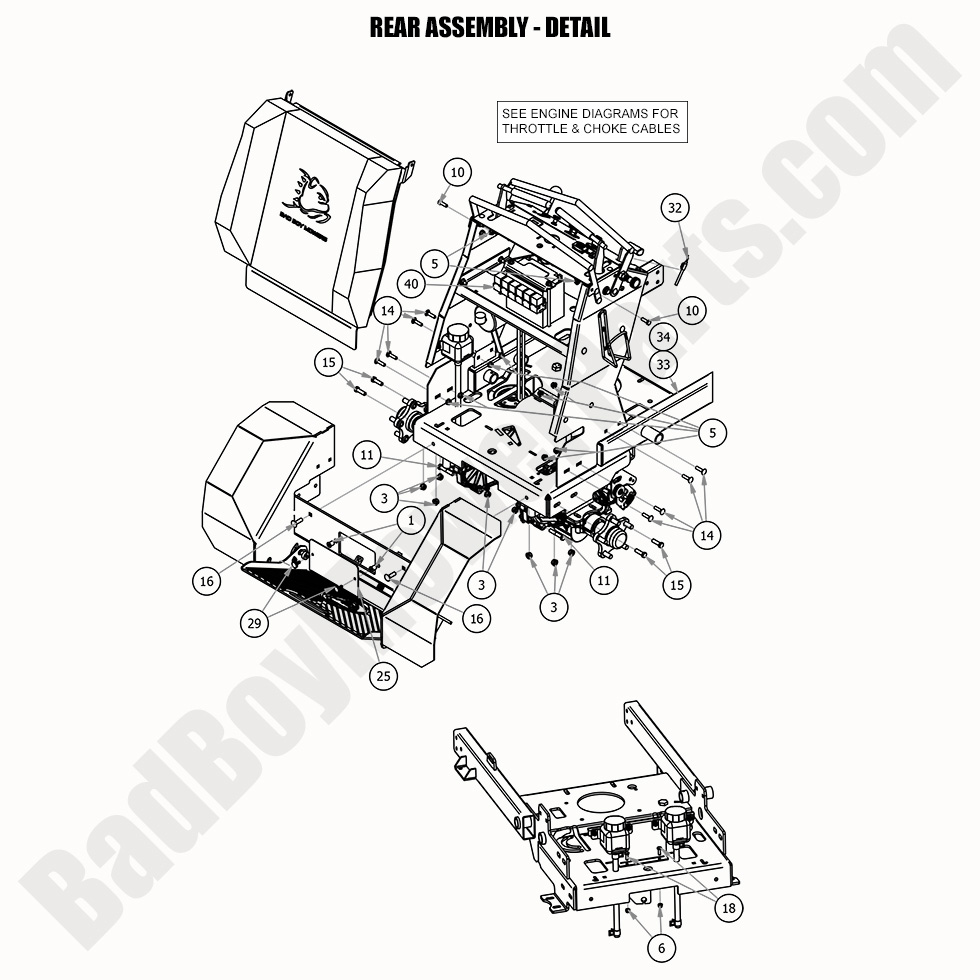

The 2020 Revolt Rear Assembly Detail offers an in-depth look at the components that make up this essential part of the mower. These components are carefully engineered for durability and to enhance the performance of your Bad Boy Mower, ensuring that you get the best out of your machine. By referring to the Bad Boy Mower Part diagrams, you can easily pinpoint which parts are needed for replacement or repair. Our online store, BadBoyMowerParts.com, offers a comprehensive selection of Bad Boy Mower Parts at competitive prices. Whether you're looking for Bad Boy Lawn Mower Parts for maintenance or upgrades, we’ve got you covered. Enjoy the added benefit of Free Shipping On Orders Over $100 and a seamless shopping experience when you shop for Bad Boy Parts Online. Find everything you need to maintain your mower’s rear assembly in top condition right here.

|
| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 1 | 013-0057-00 | 013-0057-00 - Wellnut 1/4-20 x 5/8 |
$4.39
|
||
| 3 | 013-5202-00 | 013-5202-00 - 3/8 Nylock Flange Nut |
$2.99
|
||
| 5 | 013-8049-00 | 013-8049-00 - 5/16-18 Nylon Flange Nut |
$2.99
|
||
| 6 | 013-8073-00 | 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc |
$2.99
|
||
| 10 | 018-2007-00 | 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc |
$2.99
|
||
| 11 | 018-3000-00 | 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc |
$2.99
|
||
| 14 | 018-4703-00 | 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt |
$2.99
|
||
| 15 | 018-5040-00 | 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt |
$2.99
|
||
| 16 | 018-5043-00 | 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt |
$2.99
|
||
| 18 | 018-8052-00 | 018-8052-00 - 1/4-20 X 3/4 Hex Bolt |
$2.99
|
||
| 25 | 026-0063-00 | 026-0063-00 - 2019-2022 Revolt Access Panel Plate |
$35.48
|
||
| 29 | 030-0015-00 | 030-0015-00 - 1/4-20 x 3/4 Knurled Thumb Screw |
$16.04
|
||
| 33 | 070-5220-19 | 070-5220-19 - 2019-2022 Revolt Frame |
$1149.99
|
||
| 34 | 070-5221-20 | 070-5221-20 - 2020 36" Revolt Frame |
$1299.99
|
||
| 40 | 086-0091-00 | 086-0091-00 - 2019 - 2025 Revolt Wiring Harness |
$363.44
|
