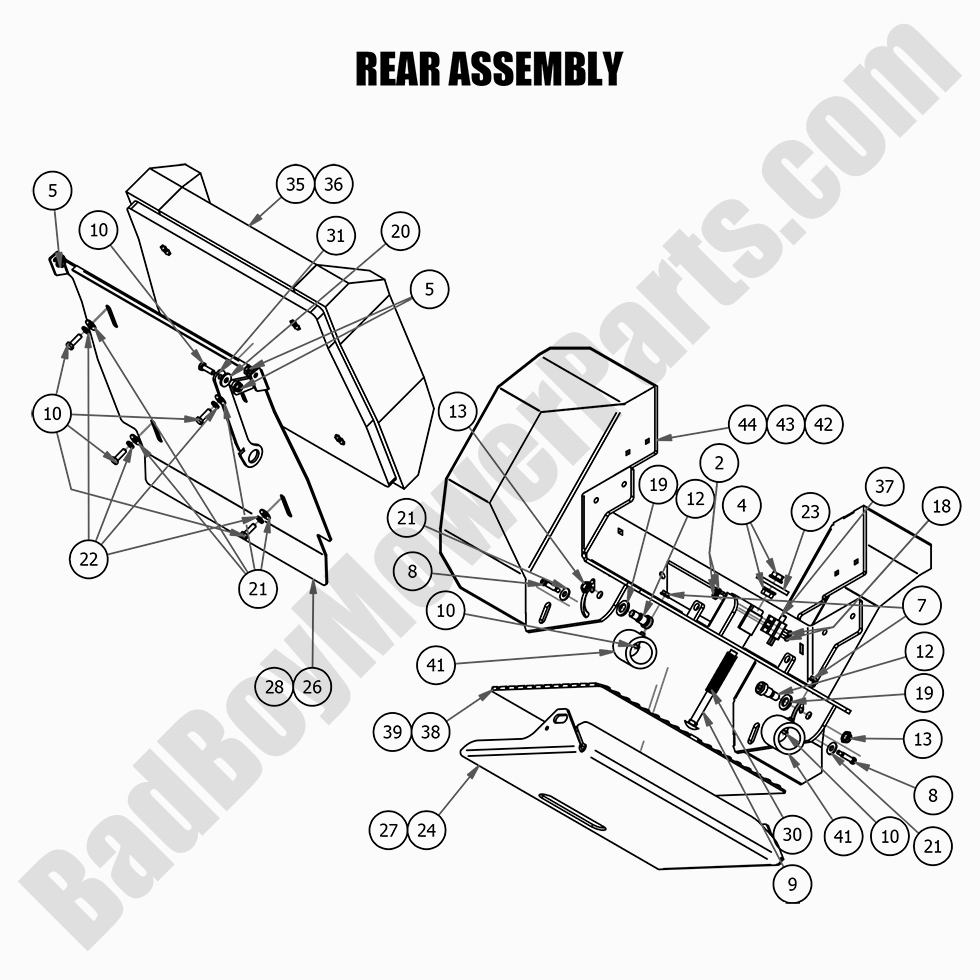

2021 Revolt - Rear Assembly

2021 Revolt - Rear Assembly

The Rear Assembly of the 2021 Revolt is crucial for maintaining the structural integrity and operational efficiency of the mower. This component includes everything from rear wheels to the rear frame, all of which need to be in top condition for optimal performance. BadBoyMowerParts.com provides high-quality Bad Boy Mower Parts to replace or repair any part of the Rear Assembly. With our detailed Bad Boy Mower Part diagrams, you can easily find the parts you need. Our wide range of Bad Boy Lawn Mower Parts ensures your 2021 Revolt will run like new. By purchasing Bad Boy Parts Online, you also enjoy the benefit of Free Shipping On Orders Over $100, making it even easier to keep your mower maintained.

Bad Boy Mower Parts Lookup

2021 Revolt - Rear Assembly
  Position Number SKU Product Title Price
2 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
4 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
8 018-0059-00 018-0059-00 - Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16"
$4.39
9 018-0069-00 018-0069-00 - 1/2-13 x 6" with 2" thread length
$36.37
10 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
12 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
13 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
18 018-8057-00 018-8057-00 - 10-24 X 3/4 Button Screw
$2.99
19 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
20 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
21 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
22 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
23 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
24 026-0062-00 026-0062-00 - Revolt Platform Plate for 48"-61" Models
$67.99
26 026-0096-00 026-0096-00 - Pad Plate for 2019-2022 Revolt (For 48"-61" Models Only)
$99.32
27 026-0158-00 026-0158-00 - 36" Revolt Platform Plate (Not for 48"-61" Models)
$113.99
28 026-0159-00 026-0159-00 - 36" Pad Plate Weldment
$74.85
30 034-1001-00 034-1001-00 - 3-1/8" x 0.75 OD x 0.568 ID Compression Spring
$12.83
31 039-0082-00 039-0082-00 - Operator Pad Kickstand 2019-2022 Stand On
$28.39
35 071-6004-00 071-6004-00 - Revolt Platform Pad, 48"-61" Models Only (See Models Used On For Details)
$189.99
36 071-6006-00 071-6006-00 - 36" Revolt Seat Pad
$144.50
37 077-0002-00 077-0002-00 - Safety Switch (See Models Used On For Detail)
$23.41
38 081-3001-00 081-3001-00 - 2019 Revolt Mat
$56.81
39 081-3002-00 081-3002-00 - 2020 36" Revolt Mat
$64.19
41 087-0003-00 087-0003-00 - 2019-2022 Revolt Platform Dampener
$85.17
42 201-1118-20 201-1118-20 - Stand On Platform Support For 61" Models (Not For 36"-54" Models)
$308.99
43 201-1119-20 201-1119-20 - 36" Stand On Platform Support weldment (Not for 48"-61" Models)
$179.99
44 201-1120-19 201-1120-19 - 2019-2022 Stand On Platform Support Welded Assembly (For 48" and 54" Models Only)
$584.99
