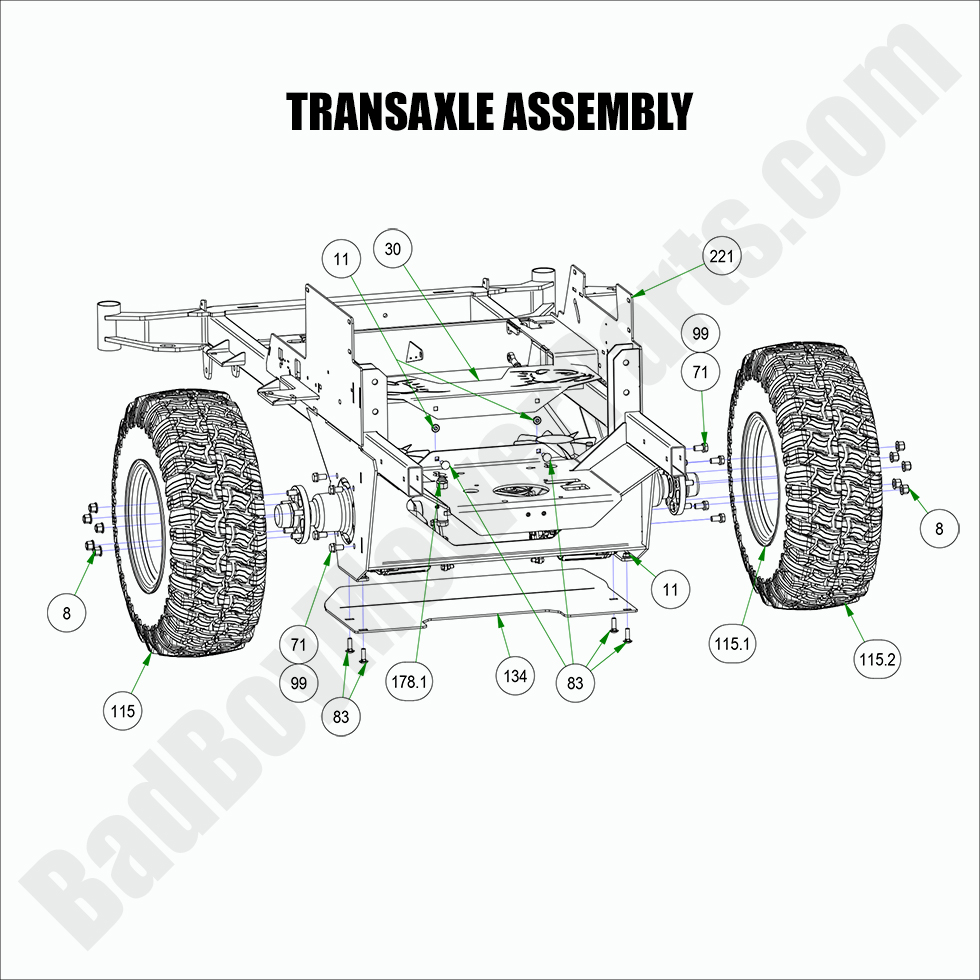

The 2022 Rebel Transaxle Assembly is essential for efficient power transfer and smooth mower operation. If you need to service or replace key transmission components, our Bad Boy Mower Part diagrams simplify the process by identifying each part clearly. At BadBoyMowerParts.com, we carry a wide selection of Bad Boy Mower Parts, ensuring that your mower remains in top working condition. Investing in genuine Bad Boy Lawn Mower Parts guarantees reliability and long-lasting performance. Ordering Bad Boy Parts Online makes it easy to get the right gears, filters, and seals needed for maintenance. Plus, enjoy Free Shipping On Orders Over $100, so you can keep your mower running smoothly without additional costs. Whether you’re performing regular servicing or a full replacement, trust our top-quality inventory to keep your 2022 Rebel Transaxle Assembly operating at its best.

|
| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 8 | 013-3000-00 | 013-3000-00 - Acorn Lug Nut |
$3.29
|
||
| 11 | 013-5202-00 | 013-5202-00 - 3/8 Nylock Flange Nut |
$2.99
|
||
| 30 | 014-5070-00 | 014-5070-00 - Rigid Fan Guard |
$21.39
|
||
| 71 | 018-2030-00 | 018-2030-00 - 1/2 x 1 Bolt |
$2.99
|
||
| 83 | 018-5043-00 | 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt |
$2.99
|
||
| 99 | 019-5007-00 | 019-5007-00 - 1/2 Lockwasher Zinc |
$2.99
|
||
| 115.1 | 022-4070-00 | 022-4070-00 - Black Wheel 12x8.5 (See Models Used On for Detail) |
$141.99
|
||
| 115.2 | 022-4095-00 | 022-4095-00 - 24x12-12 Reaper Turf Tire |
$229.99
|
||
| 115 | 022-4100-00 | 022-4100-00 - 2018-Newer Outlaw Tire & Rim Assy - 24x12-12 Reaper Turf |
$329.99
|
||

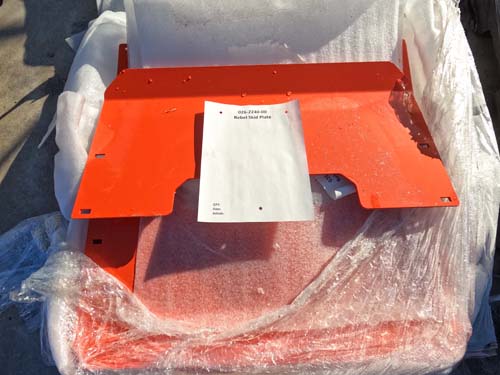

| 134 | 026-2240-00 | 026-2240-00 - Rigid Skid Plate 2019-2022 Rebel |
$53.49
|
||
| 178.1 | 013-5301-00 | 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc |
$2.99
|
