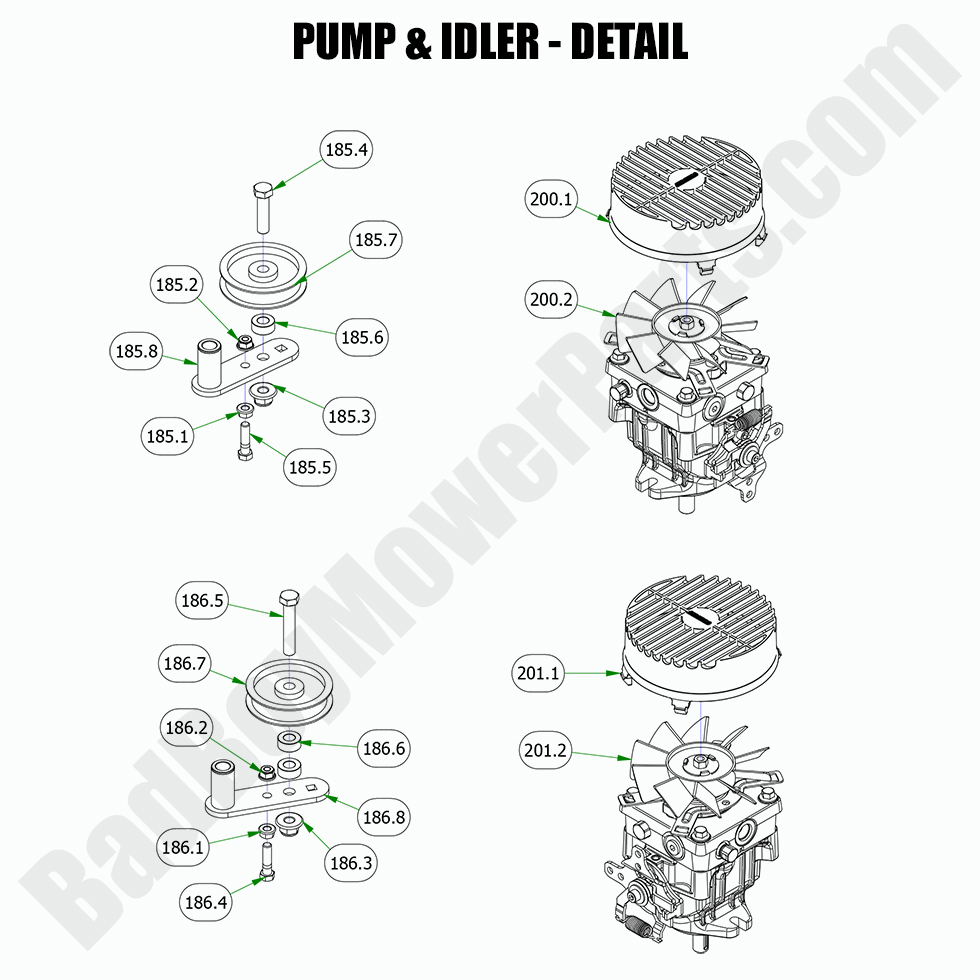

For a more detailed look at the 2022 Renegade - Gas Pump & Idler Detail, Bad Boy Mower Parts offers an extensive collection of parts for repairs and replacements. Whether it’s the pump, the idler pulley, or related components, we have all the Bad Boy Lawn Mower Parts you’ll need. Our Bad Boy Mower Part diagrams provide clear, easy-to-follow guidance for part identification, ensuring that you can find exactly what you're looking for. Shopping Bad Boy Parts Online is simple, and with Free Shipping On Orders Over $100, you can save on delivery costs as well. For all your 2022 Renegade - Gas Pump & Idler Detail needs, head to BadBoyMowerParts.com.

|
| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 185.1 | 013-5201-00 | 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations |
$2.99
|
||
| 185.2 | 013-5202-00 | 013-5202-00 - 3/8 Nylock Flange Nut |
$2.99
|
||
| 185.3 | 013-8050-00 | 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon |
$2.99
|
||
| 185.4 | 018-0022-00 | 018-0022-00 - 1/2-13 x 2 Grade 8 Hex Bolt |
$2.99
|
||
| 185.5 | 018-6012-00 | 018-6012-00 - 3/8 x 1 1/2 Bolt |
$2.99
|
||
| 185.6 | 025-7036-00 | 025-7036-00 - 1/2 Set Collar w/set screw |
$4.60
|
||

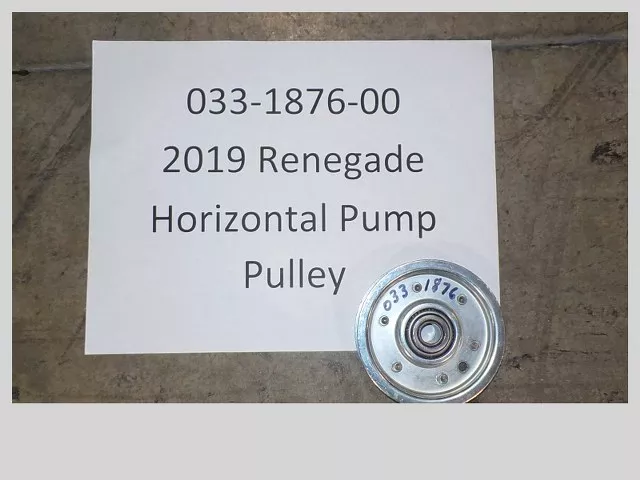

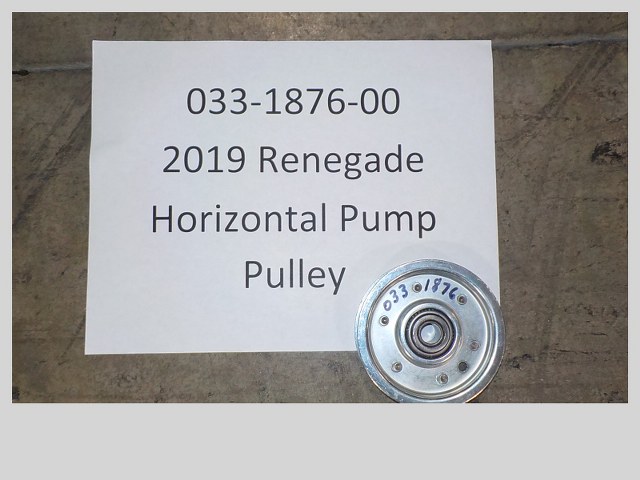

| 185.7 | 033-1876-00 | 033-1876-00 - Horizontal Pump Pulley |
$28.39
|
||

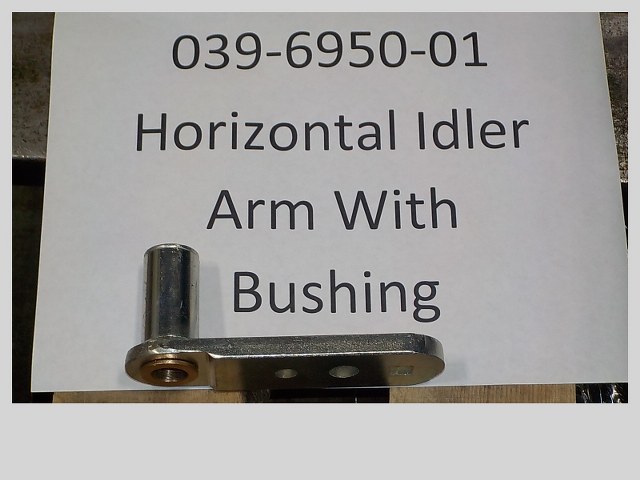

| 185.8 | 039-6950-01 | 039-6950-01 - Horizontal Idler Arm With Bushings |
$29.80
|
||
| 186.5 | 018-6036-00 | 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc |
$2.99
|
||
| 200.1 | 014-5600-00 | 014-5600-00 - Fan Guard 6.5" - Fits Wheel Motor Pumps |
$39.81
|
||
| 200.2 | 015-9999-00 | 015-9999-00 - Hydro Fan - Fits Hydraulic Pumps |
$42.79
|
