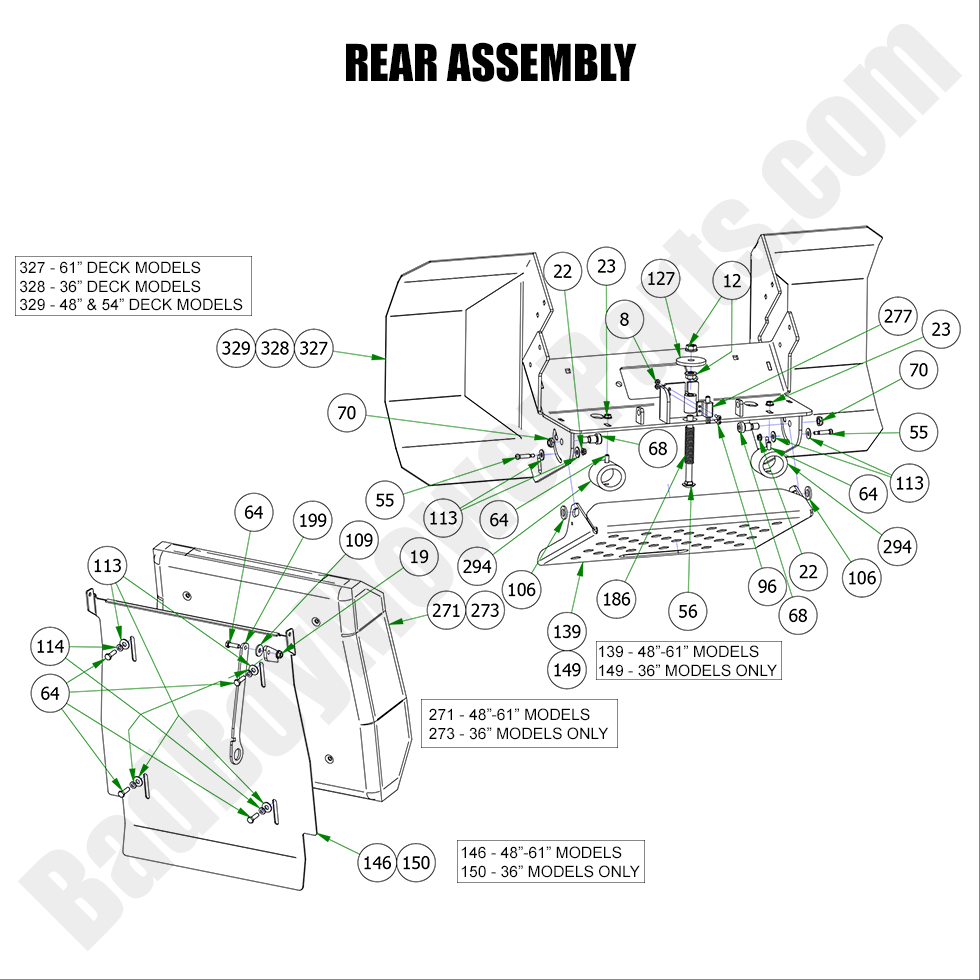

2022 Revolt - Rear Assembly

2022 Revolt - Rear Assembly

The 2022 Revolt Rear Assembly is vital for ensuring the durability and stability of your mower. At BadBoyMowerParts.com, we carry a wide selection of Bad Boy Mower Parts designed specifically for the rear assembly of the 2022 Revolt. Whether you're replacing rear wheels, axle components, or other parts, we have the Bad Boy Lawn Mower Parts to keep your mower in top condition. Our Bad Boy Mower Part diagrams help you easily identify the right parts for your rear assembly. Shopping Bad Boy Parts Online provides a fast and easy way to place your order from the comfort of your home. Additionally, we offer Free Shipping On Orders Over $100, so you won’t have to worry about extra shipping costs. Get your 2022 Revolt rear assembly parts today at BadBoyMowerParts.com.

Bad Boy Mower Parts Lookup

2022 Revolt - Rear Assembly
  Position Number SKU Product Title Price
8 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
12 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
19 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
22 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
23 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
55 018-0059-00 018-0059-00 - Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16"
$4.39
56 018-0069-00 018-0069-00 - 1/2-13 x 6" with 2" thread length
$36.37
64 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
68 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
70 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
96 018-8057-00 018-8057-00 - 10-24 X 3/4 Button Screw
$2.99
106 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
109 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
113 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
114 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
127 025-0025-00 025-0025-00 - Round Spacer (See Models Used On For Details)
$7.28
139 026-0062-00 026-0062-00 - Revolt Platform Plate for 48"-61" Models
$67.99
146 026-0096-00 026-0096-00 - Pad Plate for 2019-2022 Revolt (For 48"-61" Models Only)
$99.32
149 026-0158-00 026-0158-00 - 36" Revolt Platform Plate (Not for 48"-61" Models)
$113.99
150 026-0159-00 026-0159-00 - 36" Pad Plate Weldment
$74.85
186 034-1001-00 034-1001-00 - 3-1/8" x 0.75 OD x 0.568 ID Compression Spring
$12.83
199 039-0082-00 039-0082-00 - Operator Pad Kickstand 2019-2022 Stand On
$28.39
271 071-6004-22 071-6004-22 - 2022 48, 54, 61 Revolt seat pad
$210.99
273 071-6006-22 071-6006-22 - 2022 36 revolt seat pad
$264.99
277 077-0002-00 077-0002-00 - Safety Switch (See Models Used On For Detail)
$23.41
294 087-0003-00 087-0003-00 - 2019-2022 Revolt Platform Dampener
$85.17
327 201-1118-20 201-1118-20 - Stand On Platform Support For 61" Models (Not For 36"-54" Models)
$308.99
328 201-1119-20 201-1119-20 - 36" Stand On Platform Support weldment (Not for 48"-61" Models)
$179.99
329 201-1120-19 201-1120-19 - 2019-2022 Stand On Platform Support Welded Assembly (For 48" and 54" Models Only)
$584.99
