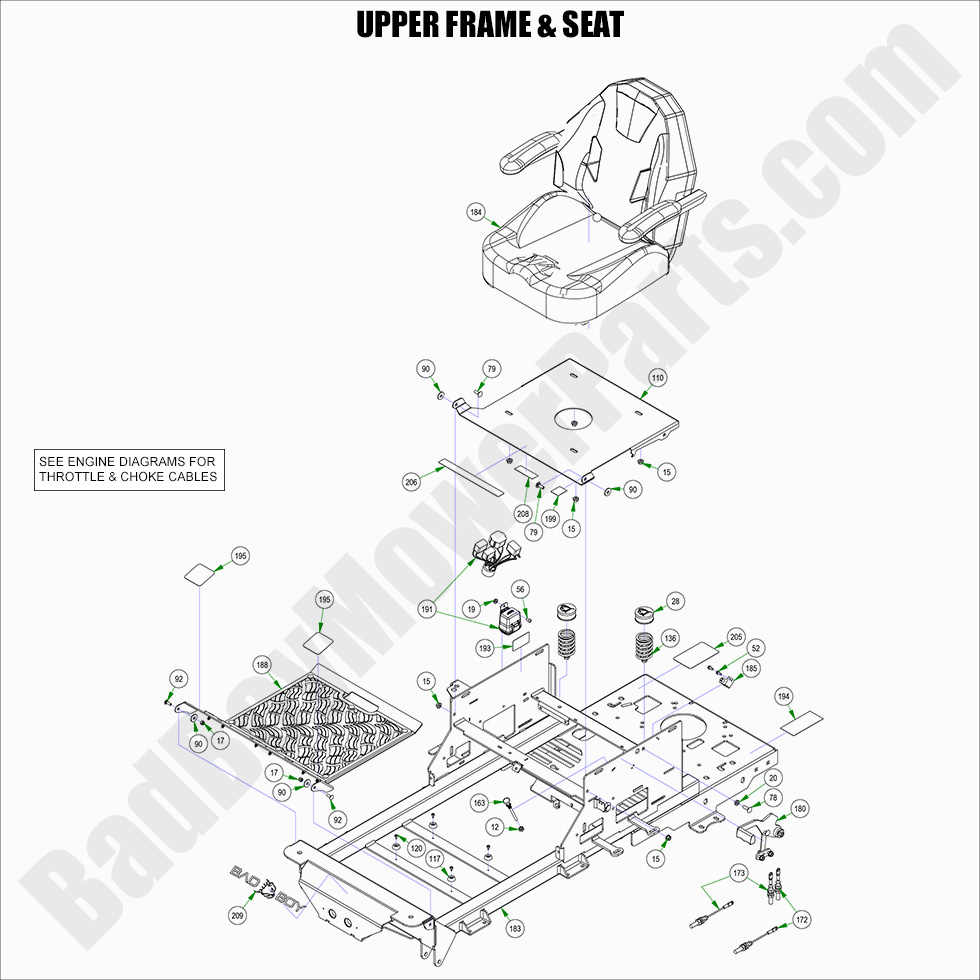

2022 ZT Elite Upper Frame & Seat

Upper Frame & Seat

Find the parts for your 2022 ZT Elite at BadBoyMowerParts.com. We have the Upper Frame & Seat parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

2022 ZT Elite Upper Frame & Seat
  Position Number SKU Product Title Price
12 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nuts Zinc
$2.99
15 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
17 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
19 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/ Serrations
$2.99
20 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
28 014-8047-00 014-8047-00 - Rubber Cap Cover
$8.93
52 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch-ZT
$2.99
56 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
78 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
79 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
90 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
92 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
110 026-1016-00 026-1016-00 - Seat Plate (See Models Used On For Details)
$109.26

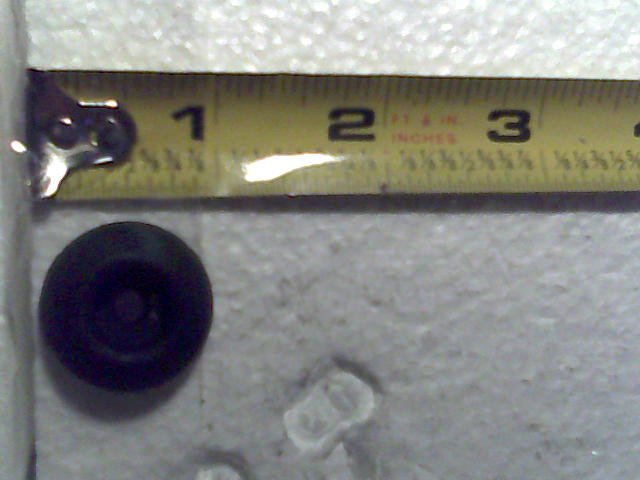

117 029-4010-00 029-4010-00 - Button Bumper
$2.99

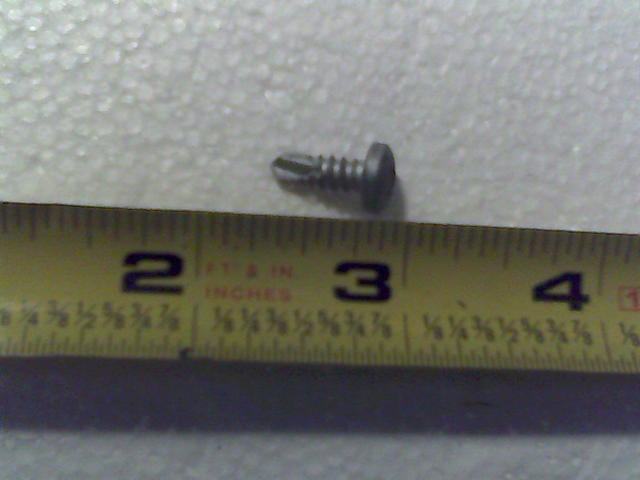

120 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
136 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
163 054-8017-00 054-8017-00 - 62" Choke Cable For MZ, ZT, CZT, Maverick, Rebel, Rogue, Outlaw XP Also Works On Outlaw & Pup/Lightning Models with 30hp Kohler (Not For 2013-2016 MZs With Kawasaki Engines)
$25.80
172 064-3050-21 064-3050-21 - 2021-2024 Load Balanced Brake Cable 1
$56.77
173 064-3051-21 064-3051-21 - 2021-2024 Load Balanced Brake Cable 2
$56.77
180 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
183 070-5423-00 070-5423-00 - 2022 Suspension ZT Frame--Painted
$706.19
184 071-2101-00 071-2101-00 - 2021-2024 ZT Elite Seat
$669.99
185 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
188 079-3470-21 079-3470-21 - 2021 Maverick Floorboard Assembly
$171.99

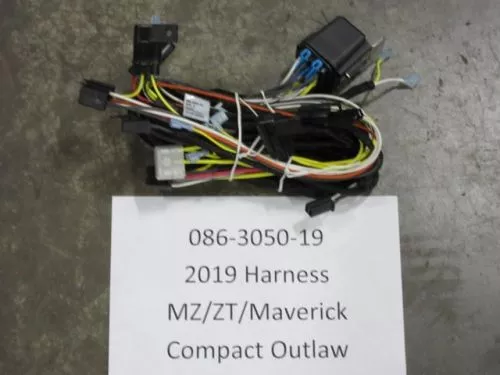

191 086-3050-19 086-3050-19 - 2019-2023 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
$388.88
193 091-0010-22 091-0010-22 - ANSI Decal BZS60KT745 2022 No Longer Available
Obsolete.
194 091-0015-22 091-0015-22 - EPA Build Date Punch Label
$3.62
195 091-0021-00 091-0021-00 - Steering Control Sticker
$11.76
199 091-0339-18 091-0339-18 - 2018-2022 MZ/Magnum/ZT/MAV/Comp Out Brake Dec
$11.76
205 091-3017-00 091-3017-00 - Pump Belt Route Decal-Pump Pla
$4.92
206 091-3150-00 091-3150-00 - Outlaw Warning Decal
$10.91
209 091-4063-00 091-4063-00 - Flying Bulldog Front Bumper Decal
$12.83
