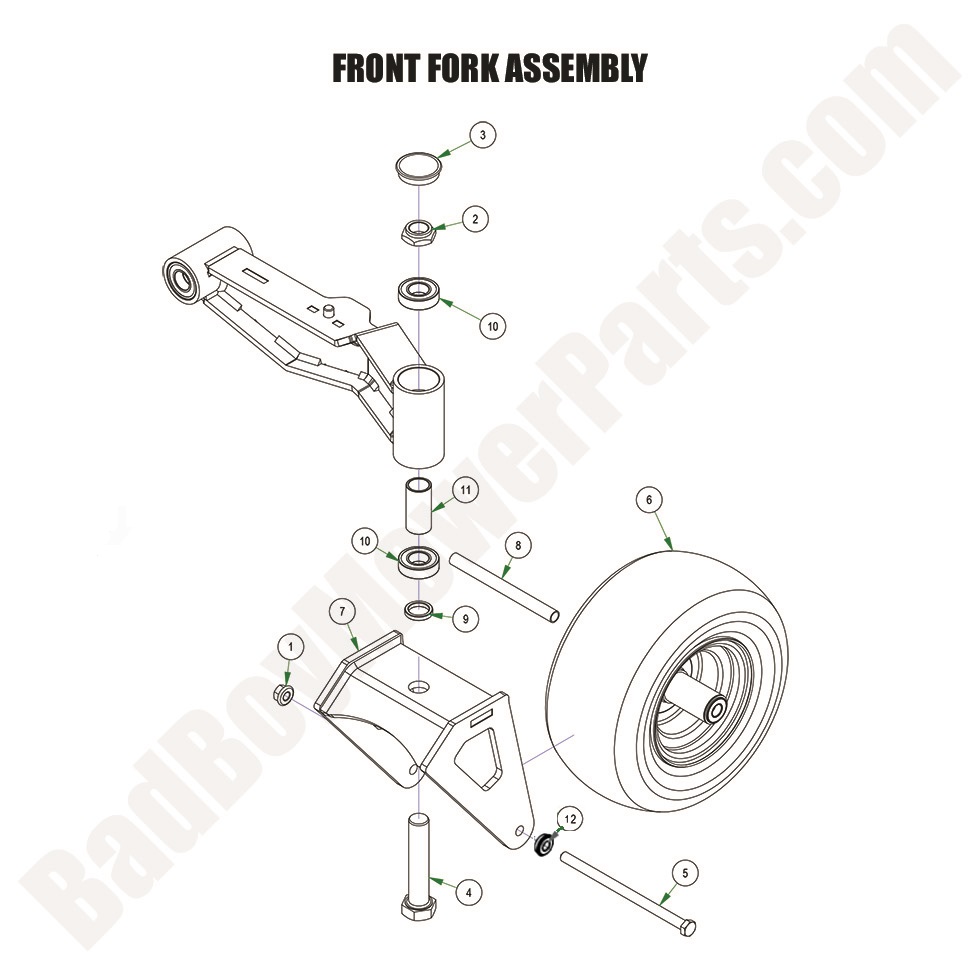

The 2024 Maverick Front Fork Assembly plays a crucial role in ensuring stability, maneuverability, and durability while mowing. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts to keep your Maverick operating smoothly. Whether you need to replace worn bushings, bolts, or the entire assembly, our Bad Boy Mower Part Diagrams help you identify the exact part needed for your repair. Our selection of Bad Boy Lawn Mower Parts is designed to fit perfectly with your 2024 Maverick, ensuring long-lasting performance. Shopping for Bad Boy Parts Online has never been easier—find what you need quickly and order with confidence. Plus, don’t forget about Free Shipping On Orders Over $100, allowing you to maintain your mower without extra costs. Keep your 2024 Maverick Front Fork Assembly in top shape by shopping at BadBoyMowerParts.com today.

|
| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 1 | 013-8050-00 | 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon |
$2.99
|
||
| 2 | 013-9004-00 | 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread |
$3.62
|
||
| 3 | 014-2025-00 | 014-2025-00 - Caster Bearing Cover (See Models Used On For Details) |
$2.99
|
||
| 4 | 018-0005-00 | 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc |
$7.69
|
||
| 5 | 018-0040-00 | 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt |
$7.18
|
||
| 6 | 022-2017-00 | 022-2017-00 - 13 x 6.50 - 6 Black Tire and Wheel Assembly |
$94.15
|
||
| 7 | 023-1010-00 | 023-1010-00 - Front Fork 2019-2022 Revolt, 2021-2022 Maverick |
$145.95
|
||
| 8 | 025-5202-00 | 025-5202-00 - Front Wheel Spanner-All Models Except MZ |
$10.44
|
||
| 9 | 058-1000-00 | 058-1000-00 - MZ Bar Stop |
$6.41
|
||
| 10 | 010-1050-00 | 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details) |
$18.39
|
||
| 11 | 025-0003-00 | 025-0003-00 - Front Bearing Spacer |
$14.04
|
||
| 12 | 022-7009-00 | 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier |
$13.36
|
