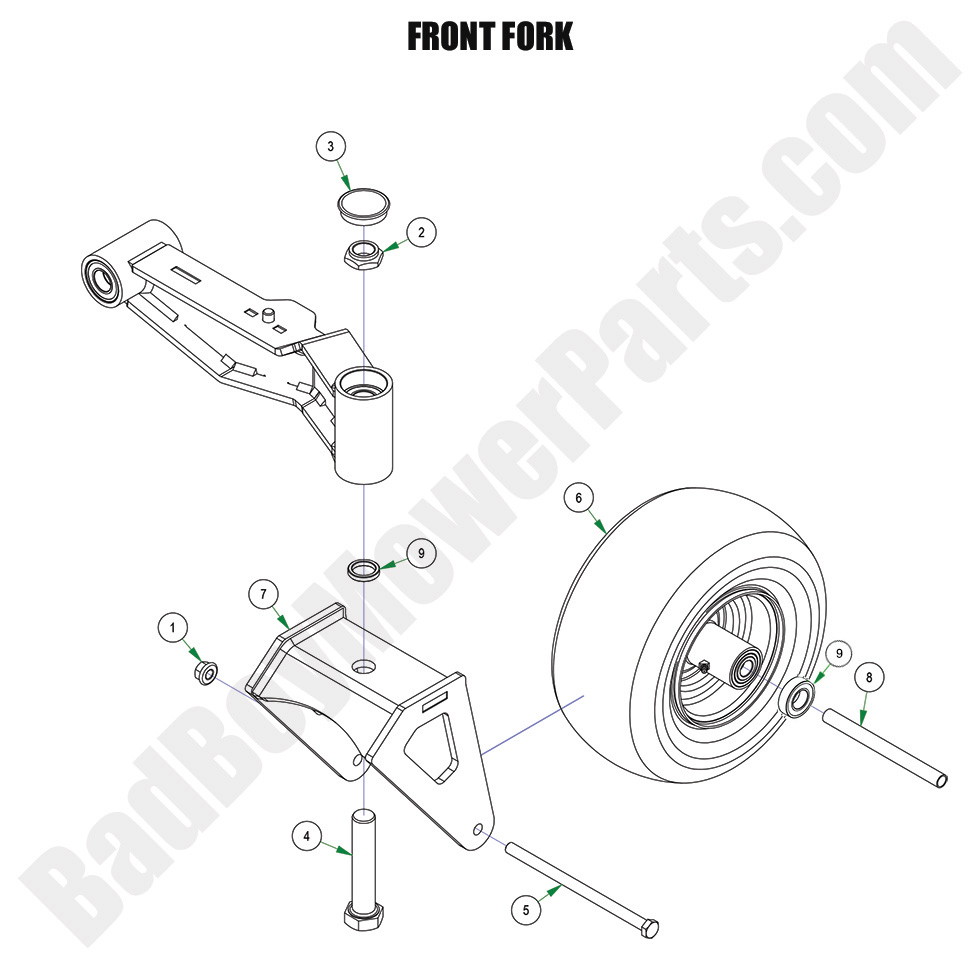

The 2024 Maverick HD Front Fork Assembly plays a crucial role in the stability and maneuverability of your mower. At BadBoyMowerParts.com, we offer a selection of high-quality Bad Boy Mower Parts for the 2024 Maverick HD Front Fork Assembly, ensuring your mower performs at its best. With the help of our detailed Bad Boy Mower Part Diagrams, you can easily find the correct parts needed for maintenance or replacement. Whether you're looking for Bad Boy Lawn Mower Parts for a repair or an upgrade, we have everything you need to keep your mower in excellent condition. Shopping Bad Boy Parts Online makes it simple to browse and order parts from the comfort of your home. Plus, we offer Free Shipping On Orders Over $100, making it more affordable to maintain your 2024 Maverick HD and ensure it keeps running smoothly.

|
| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 1 | 013-8050-00 | 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon |
$2.99
|
||
| 2 | 013-9004-00 | 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread |
$3.62
|
||
| 3 | 014-2025-00 | 014-2025-00 - Caster Bearing Cover (See Models Used On For Details) |
$2.99
|
||
| 4 | 018-0005-00 | 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc |
$7.69
|
||
| 5 | 018-0040-00 | 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt |
$7.18
|
||
| 6 | 022-3088-00 | 022-3088-00 - 13x6.50-6 Black No Flat Assy 2015-2019 Outlaw, 2022 - 2025 Maverick, Maverick HD, Rebel (Will Not Work On Renegade & Rogue) |
$145.99
|
||
| 7 | 023-1010-00 | 023-1010-00 - Front Fork 2019-2022 Revolt, 2021-2022 Maverick |
$145.95
|
||
| 8 | 025-5202-00 | 025-5202-00 - Front Wheel Spanner-All Models Except MZ |
$10.44
|
||
| 9 | 058-1000-00 | 058-1000-00 - MZ Bar Stop |
$6.41
|
||
| 9 | 022-7010-00 | 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel |
$20.32
|
