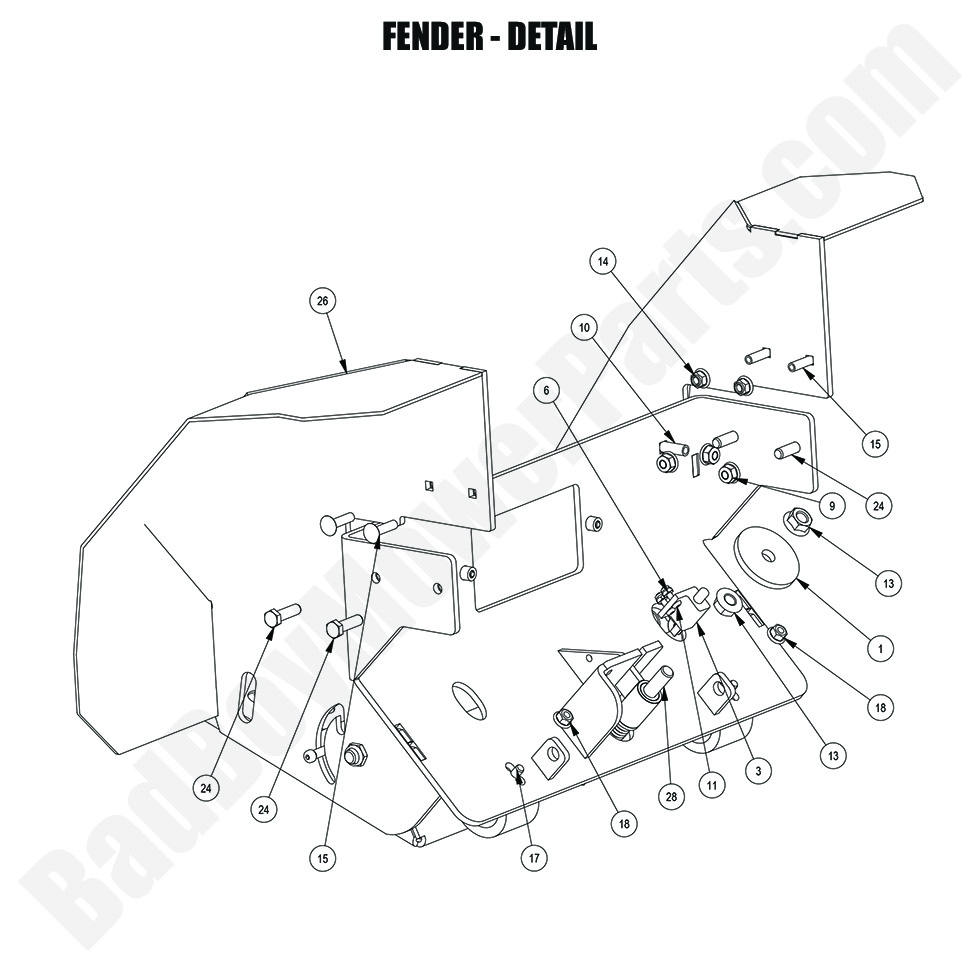

Click Image to Change Diagram

If you’re looking to replace or repair the 2024 Revolt (36" Deck) Fender - Detail, you’ll find everything you need at Bad Boy Mower Parts. We offer a wide selection of Bad Boy Mower Parts specifically for the 2024 Revolt model, including fenders and other important components. Our Bad Boy Mower Part Diagrams help you identify the exact fender you need, along with all the related hardware for installation. Whether it’s for aesthetic purposes or to repair damage, you can rely on us for high-quality Bad Boy Lawn Mower Parts. Our online store makes it easy to shop for Bad Boy Parts Online, ensuring you get the exact part for your 2024 Revolt (36" Deck). Plus, we offer Free Shipping On Orders Over $100, so your replacement fender and other parts are delivered quickly and without any extra shipping fees.

|
| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 1 | 025-0025-00 | 025-0025-00 - Round Spacer (See Models Used On For Details) |
$7.28
|
||
| 3 | 077-0002-00 | 077-0002-00 - Safety Switch (See Models Used On For Detail) |
$23.41
|
||
| 6 | 013-5019-00 | 013-5019-00 - 10-24 Nylon Insert Locknut Zinc |
$2.99
|
||
| 9 | 013-5202-00 | 013-5202-00 - 3/8 Nylock Flange Nut |
$2.99
|
||
| 10 | 018-5043-00 | 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt |
$2.99
|
||
| 11 | 018-8057-00 | 018-8057-00 - 10-24 X 3/4 Button Screw |
$2.99
|
||
| 13 | 013-5300-00 | 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations |
$2.99
|
||
| 14 | 013-8049-00 | 013-8049-00 - 5/16-18 Nylon Flange Nut |
$2.99
|
||
| 15 | 018-4703-00 | 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt |
$2.99
|
||
| 17 | 018-2007-00 | 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc |
$2.99
|
||
| 18 | 013-9002-00 | 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations |
$2.99
|
||
| 24 | 018-5040-00 | 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt |
$2.99
|
||
| 28 | 018-0062-00 | 018-0062-00 - 1/2-13 X 6 Hex Head Bolt Gr5 |
$3.29
|
