The Front Fork Assembly is a critical component of your 2025 MZ Magnum, ensuring smooth steering and stability while mowing. At BadBoyMowerParts.com, we offer a full selection of Bad Boy Mower parts to keep your front fork assembly in peak condition. Whether you need replacement bearings, bushings, or mounting hardware, our Bad Boy Mower part diagrams for 2025 MZ Magnum make it easy to locate and order the correct components. A worn or damaged front fork can lead to steering issues, uneven cutting, and operator discomfort. Regular maintenance and timely replacements ensure better control and overall mower performance. We stock fast-moving parts for quick shipping, reducing downtime and getting you back to mowing efficiently. Plus, with Free Shipping On Orders Over $100, you can keep your mower running at its best without extra costs. Don’t let worn steering components slow you down—order Front Fork Assembly replacement parts today.

|

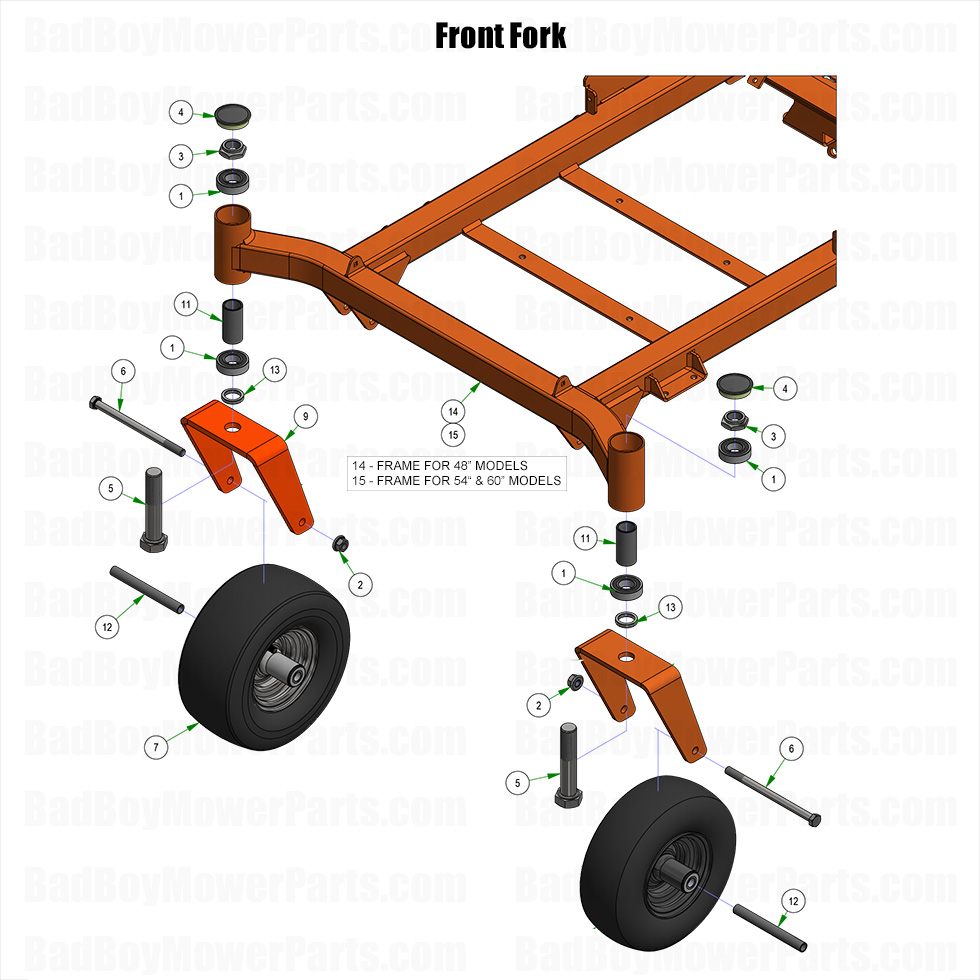

| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 1 | 010-1050-00 | 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details) |
$18.39
|
||
| 2 | 013-8050-00 | 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon |
$2.99
|
||
| 3 | 013-9004-00 | 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread |
$3.62
|
||
| 4 | 014-2025-00 | 014-2025-00 - Caster Bearing Cover (See Models Used On For Details) |
$2.99
|
||
| 5 | 018-0005-00 | 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc |
$7.69
|
||
| 6 | 018-0035-00 | 018-0035-00 - 1/2-13 x 7 1/2 Hex Bolt |
$5.49
|
||
| 7 | 022-8049-22 | 022-8049-22 - 11x6.00-5 Front Assembly - Black Wheel |
$99.39
|
||
| 9 | 023-0002-00 | 023-0002-00 - 2017-2025 Walkbehind & MZ Front Fork |
$31.23
|
||
| 11 | 025-0003-00 | 025-0003-00 - Front Bearing Spacer |
$14.04
|
||
| 12 | 025-0008-00 | 025-0008-00 - Front Wheel Spanner - MZ |
$15.60
|
||
| 13 | 058-1000-00 | 058-1000-00 - MZ Bar Stop |
$6.41
|
||
| 14 | 070-2500-00 | 070-2500-00 - 2025 MZ 42-48 Frame--Orange |
$899.99
|
||
| 15 | 070-2501-00 | 070-2501-00 - 2025 MZ-Avenger 54-60 Frame--Orange |
$899.99
|
