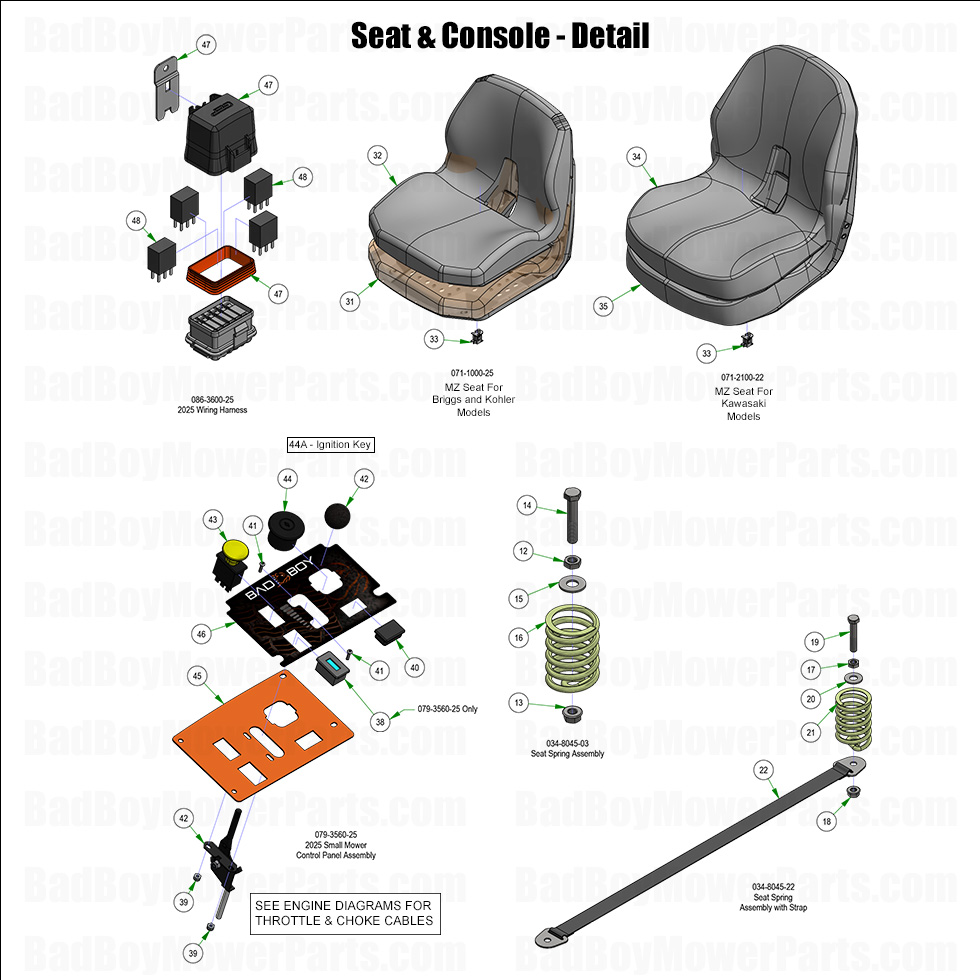

2025 MZ Magnum - Seat & Console - Detail

2025 MZ Magnum - Seat & Console - Detail

Your Seat & Console - Detail components contribute to both comfort and control while operating your 2025 MZ Magnum. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower parts to ensure your seat, console, and control system remain in top condition. Our Bad Boy Mower part diagrams for 2025 MZ Magnum help you find everything from seat cushions and armrests to control panel switches and brackets. A worn seat can lead to operator discomfort, while a damaged console can affect your ability to control your mower efficiently. Regular maintenance ensures better comfort, improved handling, and increased overall productivity. We stock fast-moving parts for immediate repairs, and with Free Shipping On Orders Over $100, keeping your mower’s seat and console in excellent condition is hassle-free. Upgrade or replace your Seat & Console - Detail components today for a more comfortable and efficient mowing experience.

Bad Boy Mower Parts Lookup

2025 MZ Magnum - Seat & Console - Detail
  Position Number SKU Product Title Price
12A 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
12 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
13 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
14 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
15 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
16 034-8045-00 034-8045-00 - Seat Spring
$20.49
17A 034-8045-22 034-8045-22 - Seat Spring Assembly with Strap
$32.09
22 064-8083-00 064-8083-00 Seat Strap w/Buckles
$24.60
31A 071-1000-25 071-1000-25 - 2025 Magnum & Rambler Seat - Kohler Models
$429.99

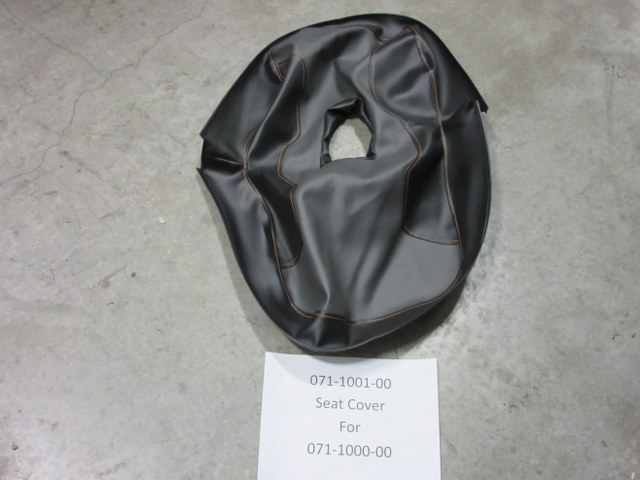

32 071-1001-00 071-1001-00 - Seat Cover for 071-1000-00
$119.41
33A 071-2100-22 071-2100-22 - 2022-2024 Avenger & 2025 MZ Magnum (Kawasaki Model)
$559.99
34 071-2108-00 071-2108-00 - Bad Boy SK130 Avenger Cover for 071-2100-22
$119.99
35 071-2110-00 071-2110-00 - SK130 Water Proofing Protection for 071-2100-22 No Longer Available
Obsolete.
38 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
39A 079-3560-25 079-3560-25 - Control Panel Assembly
$199.99
39 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
40 018-1040-00 018-1040-00 - Light Plug
$2.99
41 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
43 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
44A 042-9000-00 042-9000-00 - Ignition Key
$4.06
44 077-8078-00 077-8078-00 - 4-Way Key Switch
$11.76
45 079-3462-00 079-3462-00 - Control Panel--Orange
$10.99
46 091-4082-00 091-4082-00 - 2025 Reaper Control Panel Decal
$10.99
47A 086-3600-25 086-3600-25 - Wiring Harness with Clips and Light Option
$299.99
47 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
48 086-1202-19 086-1202-19 - Relay Terminal
$24.97
