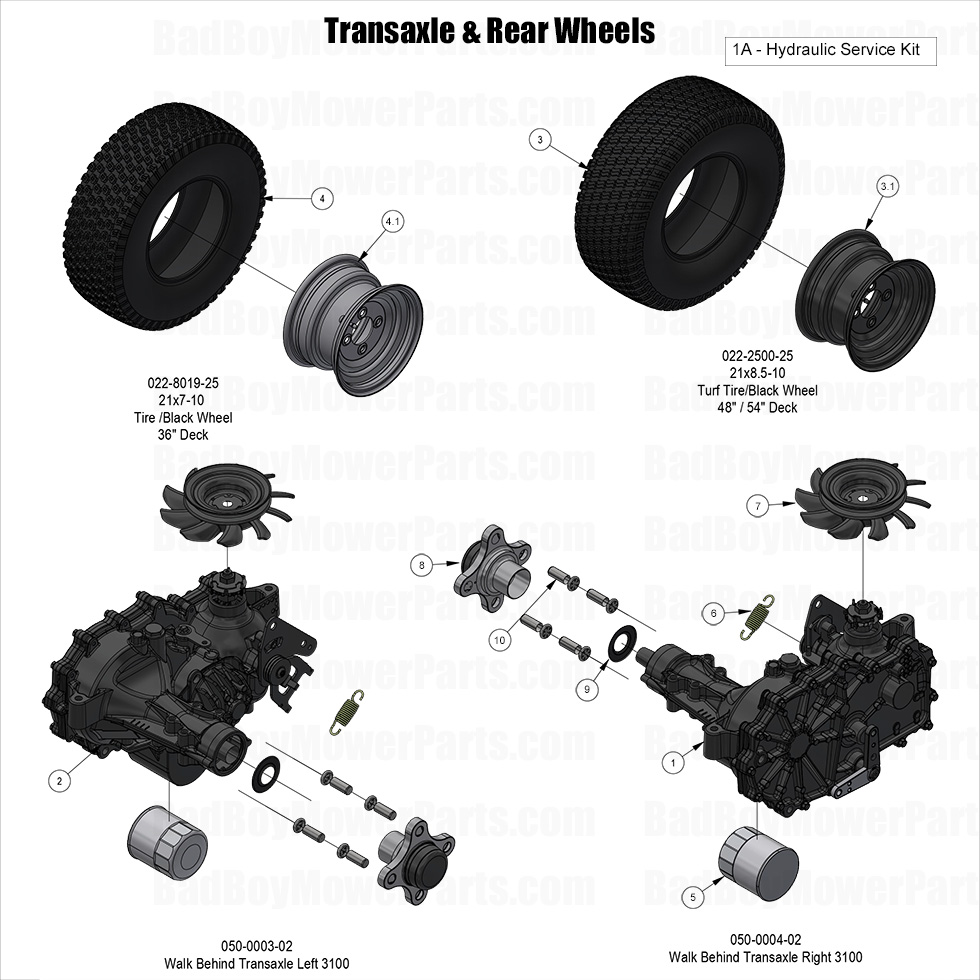

The 2025 Raider Transaxle & Rear Wheel system is responsible for power transmission and smooth traction while mowing. At BadBoyMowerParts.com, we provide premium Bad Boy Mower Parts to maintain your mower’s drivetrain. Our Bad Boy Lawn Mower Parts inventory includes transaxles, rear wheels, hubs, and bearings for reliable performance. Using our Bad Boy Mower Part diagrams, you can quickly find and order the exact parts needed for efficient repairs. A faulty transaxle or worn-out rear wheel can lead to poor traction, uneven mowing, and reduced power efficiency. We stock Bad Boy Parts Online to ensure quick replacements, reducing downtime. Plus, with Free Shipping On Orders Over $100, maintaining your mower’s drivetrain is both affordable and hassle-free. Don’t let traction issues slow you down—order 2025 Raider Transaxle & Rear Wheel parts today and keep your mower running smoothly across all terrains.

|
| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 1A | 085-4051-00 | 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400 |
$118.99
|
||
| 3.1 | 022-2501-22 | 022-2501-22 - Rim for 022-2500-22 |
$43.86
|
||
| 3 | 022-2502-22 | 022-2502-22 - Tire for 022-2500-22 |
$101.64
|
||
| 4.1 | 022-8022-22 | 022-8022-22 - Black 10" Wheel Only-36" Stand On |
$85.59
|
||
| 4 | 022-8023-00 | 022-8023-00 - - Walk Behind 36" Tire Only 21 X 7-10 Kenda K 500 Model |
$119.99
|
||
| 5 | 063-1050-00 | 063-1050-00 - ZT Hydraulic Filter |
$22.71
|
||
| 6 | 034-9080-00 | 034-9080-00 - Gold Transaxle Spring |
$14.89
|
||
| 7 | 050-2070-00 | 050-2070-00 - ZT Avenger/ ZT/Maverick Transaxle Fan/Pulley Kit |
$85.59
|
||
| 8 | 050-2076-00 | 050-2076-00 - Transaxle Wheel Hub (See Models Used On For Details) |
$129.99
|
||
| 9 | 050-8010-00 | 050-8010-00 - ZT/Maverick Transaxle Seal Kit (ZT-2800) |
$109.46
|
||
| 10 | 050-2012-00 | 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs |
$5.61
|
