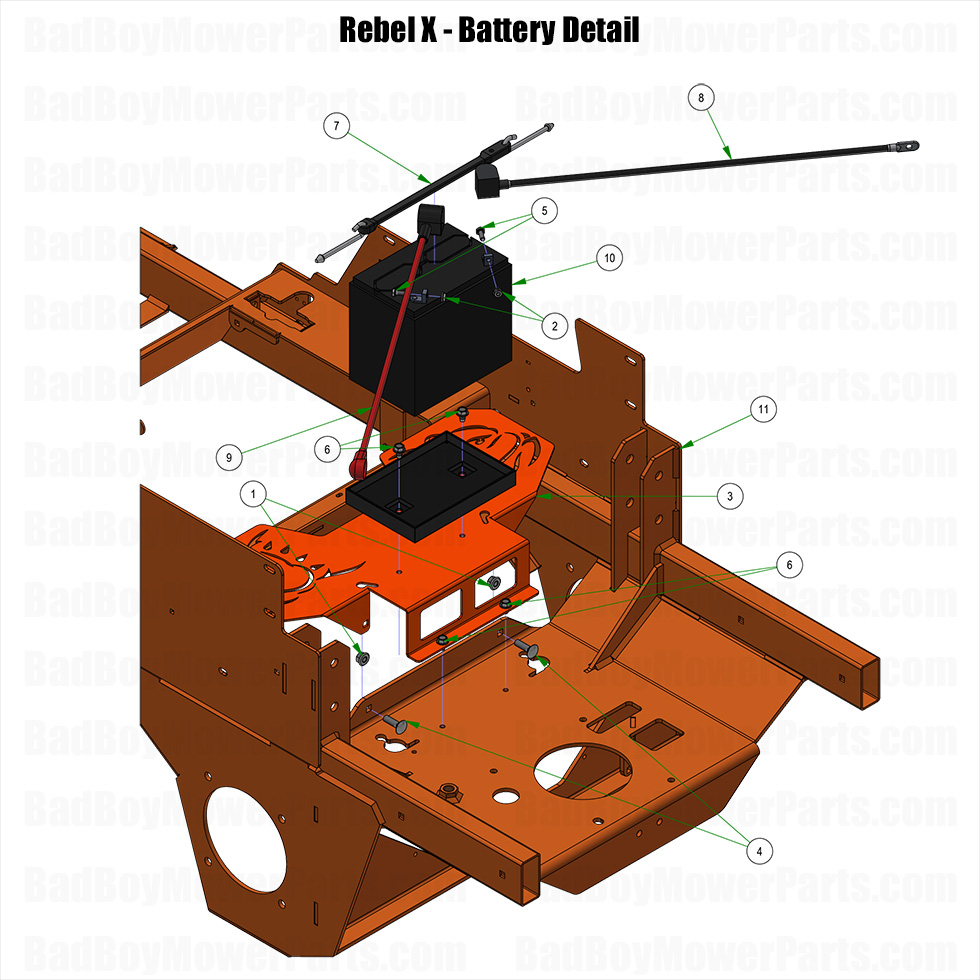

The 2025 Rebel & Rebel X Rebel X - Battery Detail system ensures reliable starting power and electrical functionality. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts to maintain your battery connections, terminals, and mounting brackets. Our Bad Boy Lawn Mower Parts inventory includes durable battery cables, hold-down kits, and wiring harnesses for long-lasting performance. With our Bad Boy Mower Part diagrams, finding and ordering the correct battery-related parts is quick and easy. A properly maintained battery system ensures dependable starts, efficient power distribution, and optimal electrical performance. We stock Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, enjoy Free Shipping On Orders Over $100, making battery maintenance more cost-effective. Keep your electrical system in top shape—order 2025 Rebel & Rebel X Rebel X - Battery Detail parts today for reliable power and performance.

|
| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 1 | 013-5202-00 | 013-5202-00 - 3/8 Nylock Flange Nut |
$2.99
|
||
| 2 | 013-9001-00 | 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations |
$2.99
|
||
| 4 | 018-5043-00 | 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt |
$2.99
|
||
| 5 | 018-8052-00 | 018-8052-00 - 1/4-20 X 3/4 Hex Bolt |
$2.99
|
||
| 6 | 030-7044-00 | 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc |
$2.99
|
||
| 7 | 043-8930-98 | 043-8930-98 - 2023-2024 Battery Hold Down Assembly Strap |
$26.74
|
||
| 8 | 064-0030-00 | 064-0030-00 - 24 inch Black Battery Cable |
$18.72
|
||
| 9 | 064-5300-00 | 064-5300-00 - 24" Red Battery Cable |
$21.85
|
||
| 11 | 070-2304-00 | 070-2304-00 - 2023-Newer Rebel Frame--Orange |
$1099.99
|
