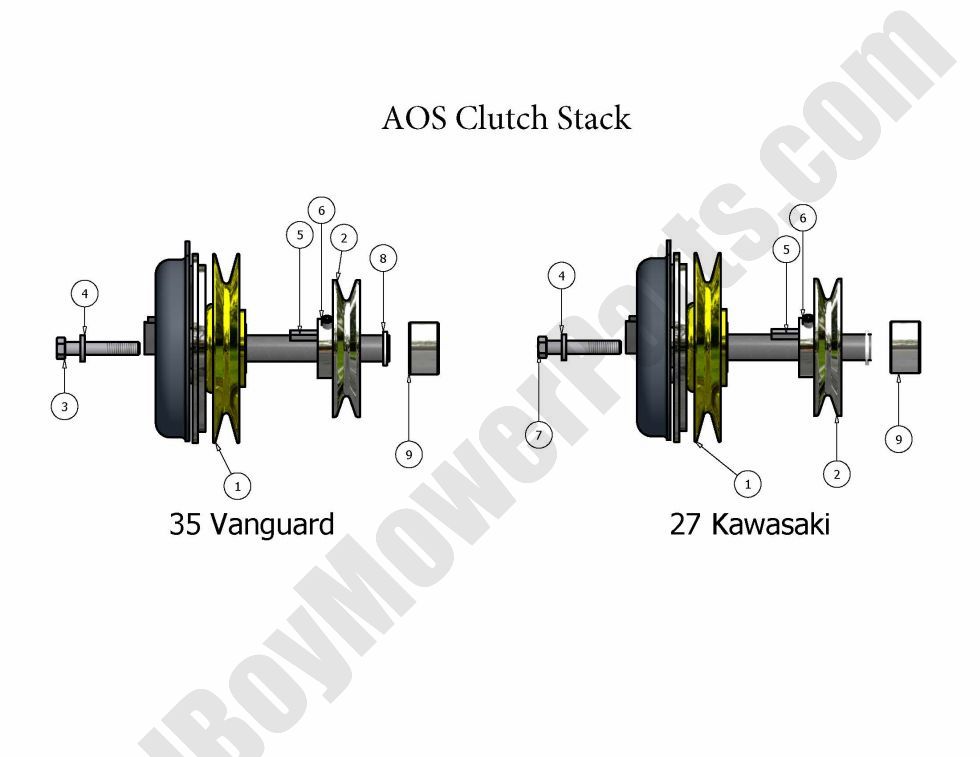

The 2008 AOS Clutch Stack plays a vital role in regulating the engagement and disengagement of your mower’s blades. This part is essential for ensuring smooth operation of the mower’s drive system. At BadBoyMowerParts.com, we offer the 2008 AOS Clutch Stack and a variety of other Bad Boy Mower Parts to help maintain the high performance of your machine. Whether you need to replace worn-out components or upgrade to improve functionality, we have you covered. Our Bad Boy Mower Part diagrams provide a detailed visual guide to help you install the 2008 AOS Clutch Stack with precision. We’re committed to providing you with the best Bad Boy Lawn Mower Parts for your 2008 AOS. Additionally, you can enjoy Free Shipping On Orders Over $100 when you shop with us. Shop Bad Boy Parts Online and keep your mower working at its best.

|
| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 1 | 070-5035-00 | 070-5035-00 - PTO Clutch - AOS Gas Models |
$278.64
|
||
| 2 | 033-5034-00 | 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Keyway IS NOT included. (See Models Used On For Details) |
$35.48
|
||
| 3 | 018-5300-00 | 018-5300-00 - 7/16-20 X 2-1/2 Hex Bolt |
$2.99
|
||
| 4 | 018-5028-00 | 018-5028-00 - M10 X 1.5 X 60MM |
$2.99
|
||
| 4 | 019-8053-00 | 019-8053-00 - 7/16 Lockwasher zinc |
$3.29
|
||
| 5 | 042-6030-00 | 042-6030-00 - 1/4" x 1" Square Key |
$4.81
|
||
| 6 | 030-6029-00 | 030-6029-00 - 3/8-16x1/2 Set Screw |
$2.99
|
||
| 8 | 019-6029-00 | 019-6029-00 - 1.140x1.750x.132 Flat Washer |
$2.99
|
||
| 9 | 025-5032-00 | 025-5032-00 - 1.130 ID X 1.75 OD X 1" Countersunk Zinc Spacer |
$12.83
|
