Click Image to Change Diagram

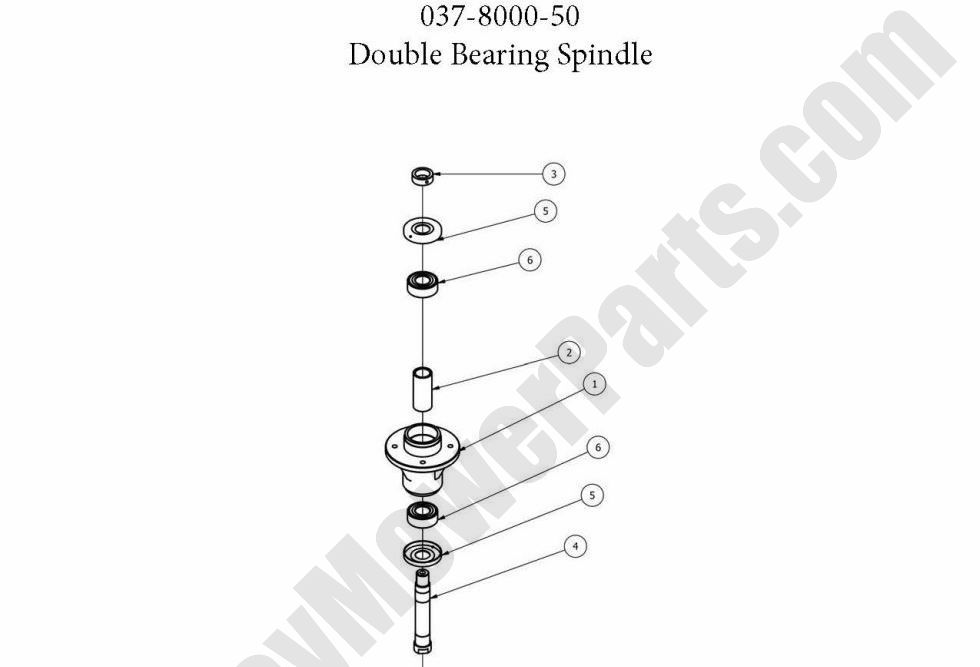

The Bad Boy Mower parts diagram for the 2013 Outlaw XP Double Bearing Spindle is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 Outlaw XP models. Find all of your Bad Boy mowers 2013 Outlaw XP parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 Outlaw XP Double Bearing Spindle. If you are not able to find the Bad Boy parts for your 2013 Outlaw XP please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 037-8005-50 |
037-8005-50 - Aluminum Spindle Housing- Obsolete - Use 037-4000-00 (obsolete) use part #037-4000-00 |
$312.34
|
||
2 | 037-8003-00 | 037-8003-00 - Tube Spacer-Double Bearing Spi ndle-2009 Lightning, Pup, AOS |
$11.34
|
||
3 | 037-9050-00 | 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details) |
$7.28
|
||
4 | 037-6026-00 | 037-6026-00 - Short Spindle Shaft w/Locking Collar - No Grooved Shaft |
$83.77
|
||
5 | 037-8002-00 | 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50) |
$11.76
|
||
6 | 037-8001-00 | 037-8001-00 - Double Bearing for Spindle (See Models Used On For Details) |
$46.78
|
