2013 Stand-On Engine - Kawasaki FS730V

Engine - Kawasaki FS730V

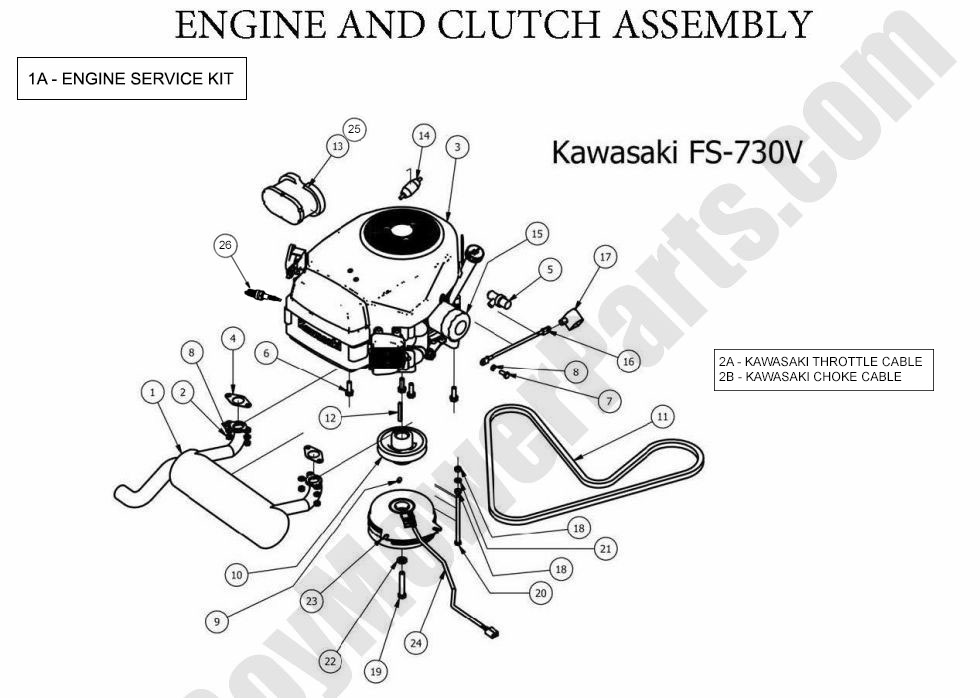

The Bad Boy Mower parts diagram for the 2013 Stand-On Engine & Clutch (Kaw. FS730V) is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2013 Stand-On models. Find all of your Bad Boy mowers 2013 Stand-On parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2013 Stand-On Engine & Clutch (Kaw. FS730V). If you are not able to find the Bad Boy parts for your 2013 Stand-On please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2013 Stand-On Engine - Kawasaki FS730V
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
1 015-0008-00 015-0008-00 - Exhaust-Stand On 26hp Kawasaki
$141.97
2 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
3 015-0075-00 015-0075-00 - Heat Shield for Muffler
$21.39
4 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
5 015-5404-00 015-5404-00 - Oil Drain Valve - For Kawasaki FR, FS and FX Engines (obsolete)
use part #051-5404-00
$28.11
6 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
7 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
8 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
9 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
10 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
11 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
12 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
13 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
14 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
15 063-2096-00 063-2096-00 - Oil Filter Kawasaki FR/FS/FX691/FX730/FX751
$18.18
16 064-0030-00 064-0030-00 - 24 inch Black Cable
$18.72
17 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
18 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
19 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
20 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 GR 5 Hex Bolt
$2.99
21 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
23 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
24 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
25 063-2098-00 063-2098-00 - Kawasaki Pre Cleaner for 063-2097-00 Filter
$8.24
26 015-8001-00 015-8001-00 - Spark plug-Kawasaki (NGK or Equivalent)
$8.79
