The 2007 AOS Hydraulic Cooler is a critical component in your mower's hydraulic system, preventing overheating and ensuring smooth operation. If you need a replacement or part for maintenance, BadBoyMowerParts.com offers a broad range of Bad Boy Mower Parts, including the 2007 AOS Hydraulic Cooler. Our Bad Boy Mower Part diagrams make it easy to locate the specific part you need for your mower’s hydraulic system. Whether you're replacing the cooler itself or checking related components, we have a wide selection of Bad Boy Lawn Mower Parts to keep your mower performing at its best. You can shop conveniently with Bad Boy Parts Online and enjoy the added benefit of Free Shipping On Orders Over $100. With fast delivery and top-quality parts, we’re here to help keep your 2007 AOS Hydraulic Cooler and mower in prime working condition.

|

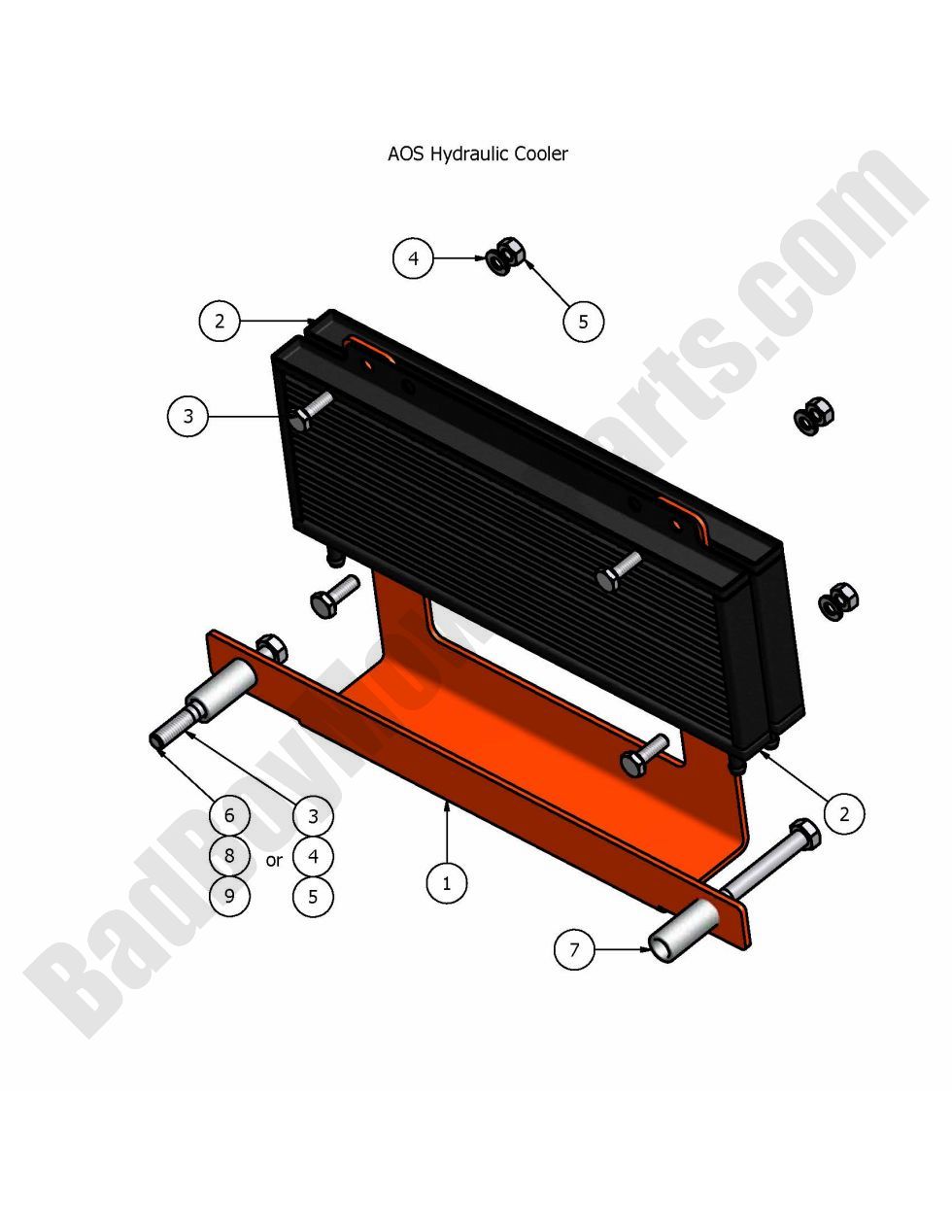

| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 1 | 057-5950-00 | 057-5950-00 - 2007-2017 Hydraulic Cooler Holder Diesel and AOS Models |
$34.97
|
||
| 2 | 061-8012-00 | 061-8012-00 - Hydraulic Cooler-Diesel Models (See Models Used On For Details) |
$76.53
|
||
| 3 | 018-8052-00 | 018-8052-00 - 1/4-20 X 3/4 Hex Bolt |
$2.99
|
||
| 4 | 019-4008-00 | 019-4008-00 - 1/4 Lockwasher Zinc |
$2.99
|
||
| 5 | 013-8039-00 | 013-8039-00 - 1/4-20 Hex Nut |
$2.99
|
||
| 6 | 018-5355-00 | 018-5355-00 - 5/16-18 X 6 Hex Bolt Zinc |
$2.99
|
||
| 7 | 025-3100-00 | 025-3100-00 -.370x.630x4.530 Spacer Zinc |
$8.74
|
||
| 8 | 019-8051-00 | 019-8051-00 - 5/16" Lockwasher Zinc |
$2.99
|
||
| 9 | 013-8043-00 | 013-8043-00 - 5/16-18 Hex Nut |
$2.99
|
