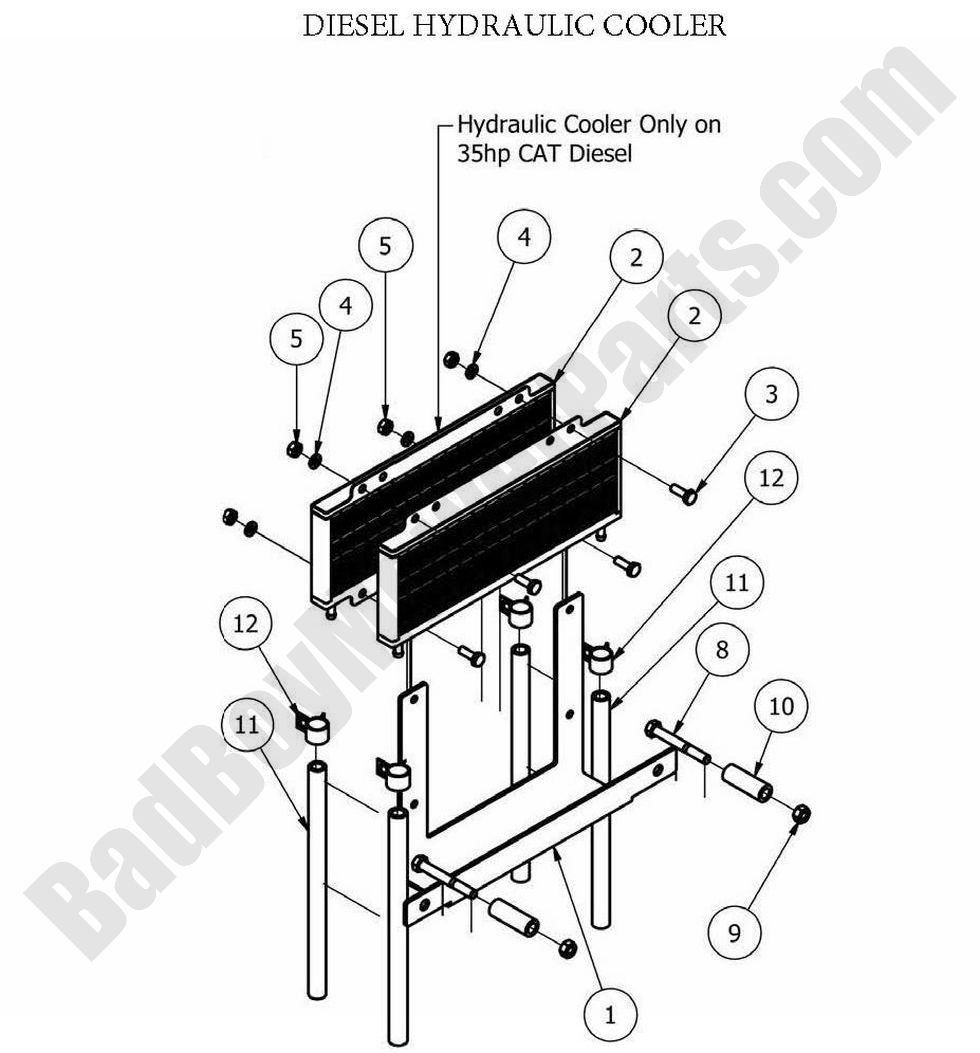

The 2013 Diesels Hydraulic Cooler plays a critical role in maintaining the efficiency of your mower’s hydraulic system by preventing overheating. At BadBoyMowerParts.com, we carry a full selection of Bad Boy Mower Parts to help you replace or repair your hydraulic cooler. Our Bad Boy Mower Part diagrams make it simple to identify the correct parts for your 2013 Diesels mower, ensuring you get the right fit every time. From hoses and seals to the cooler itself, our Bad Boy Lawn Mower Parts inventory provides everything you need for a reliable hydraulic system. Shopping for Bad Boy Parts Online is easy, and you can take advantage of our Free Shipping On Orders Over $100 to save even more. Keep your hydraulic system running at peak performance with high-quality parts from our trusted inventory.

|
| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 1 | 057-5950-00 | 057-5950-00 - 2007-2017 Hydraulic Cooler Holder Diesel and AOS Models |
$34.97
|
||
| 2 | 061-8012-00 | 061-8012-00 - Hydraulic Cooler-Diesel Models (See Models Used On For Details) |
$76.53
|
||
| 3 | 018-8052-00 | 018-8052-00 - 1/4-20 X 3/4 Hex Bolt |
$2.99
|
||
| 4 | 019-4008-00 | 019-4008-00 - 1/4 Lockwasher Zinc |
$2.99
|
||
| 5 | 013-8039-00 | 013-8039-00 - 1/4-20 Hex Nut |
$2.99
|
||
| 8 | 018-5344-00 | 018-5344-00 - 5/16 x 2 1/2 Bolt |
$2.99
|
||
| 9 | 013-8043-00 | 013-8043-00 - 5/16-18 Hex Nut |
$2.99
|
||
| 10 | 025-8000-00 | 025-8000-00 -.378x.625x1.750 Spacer Zinc |
$4.81
|
||
| 11 | 051-8063-00 | 051-8063-00 - 3/8 Clear Hose PRICED PER FOOT |
$2.99
|
||
| 12 | 072-8065-00 | 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS |
$2.99
|
