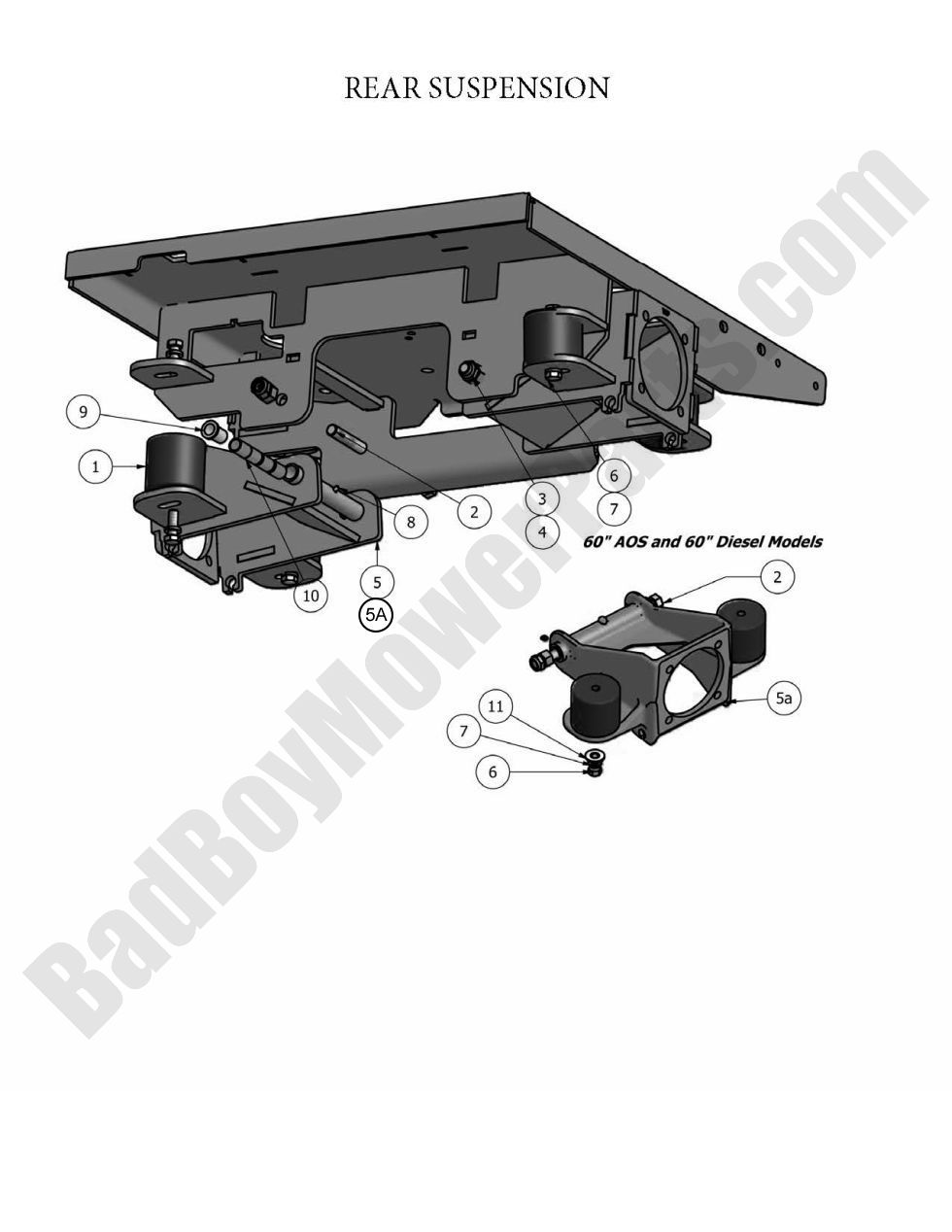

The 2010 AOS Rear Suspension is essential for stability, shock absorption, and smooth operation on uneven terrain. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including rear suspension arms, shock absorbers, mounting brackets, and bushings for long-lasting durability. Our Bad Boy Lawn Mower Parts inventory guarantees factory-grade replacements designed for strength and comfort. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct rear suspension components for seamless installation. Routine maintenance prevents excessive vibration, improves ride quality, and extends the lifespan of your mower’s suspension system. We also stock Bad Boy Parts Online, making ordering replacement suspension components fast and convenient. Plus, with Free Shipping On Orders Over $100, maintaining your 2010 AOS Rear Suspension is now more cost-effective. Order today to ensure smoother rides, enhanced stability, and long-term durability, keeping your mower performing efficiently in all types of mowing conditions.

|
| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 1 | 032-9000-00 | 032-9000-00 - Isolator - Green Dot |
$70.97
|
||
| 2 | 018-2051-00 | 018-2051-00 - 5/8 x 10 Bolt Grade 8 |
$15.61
|
||
| 3 | 013-5301-00 | 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc |
$2.99
|
||
| 4 | 013-5020-00 | 013-5020-00 - 5/8-11 Hex Nuts Zinc |
$3.51
|
||
| 5A | 070-8000-00 | 070-8000-00 - Suspension Kit Wheel Motor (See Models Used On For Details) |
$291.91
|
||
| 6 | 018-5006-00 | 018-5006-00 - 1/2-13 X 1-1/2 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details) |
$2.99
|
||
| 7 | 019-5007-00 | 019-5007-00 - 1/2 Lockwasher Zinc |
$2.99
|
||
| 8 | 024-6034-00 | 024-6034-00 - 1/4 Drive-in Grease Fitting |
$2.99
|
||
| 9 | 032-5051-00 | 032-5051-00 - Bronze Bushing - SF2024-24 Wheel Motor Cage |
$4.37
|
||
| 10 | 032-6033-00 | 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms |
$3.84
|
||
| 11 | 019-5702-00 | 019-5702-00 - 1/2 SAE Flat Washer GR 8 |
$2.99
|
