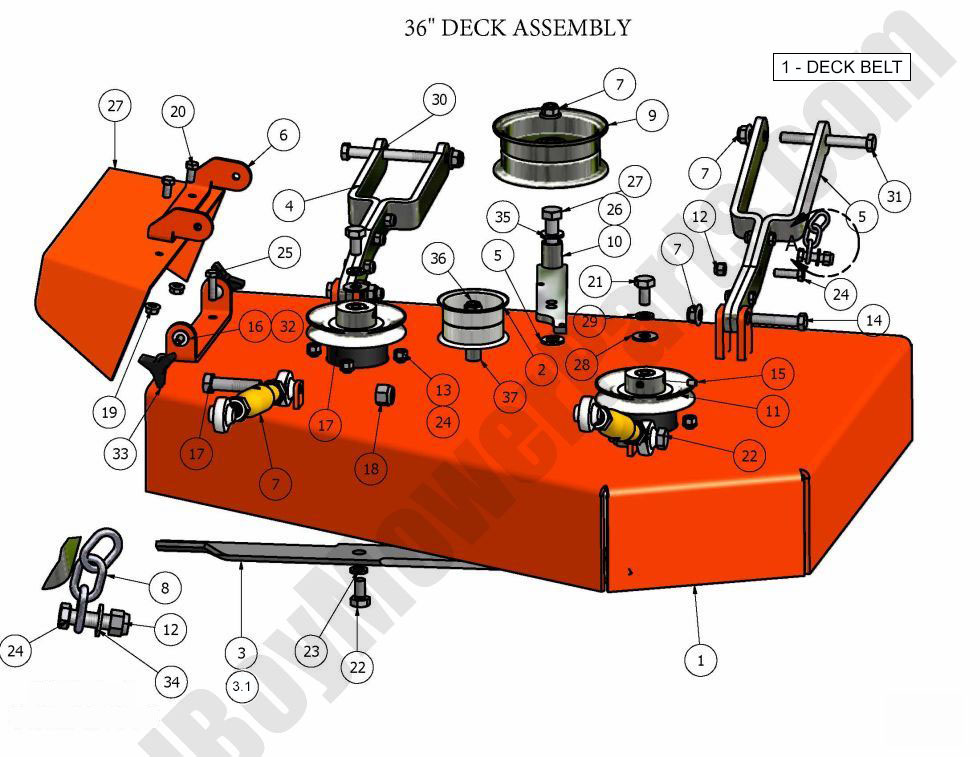

2009 ZT 36" Deck Assembly

36" Deck Assembly

The Bad Boy Mower parts diagram for the 2009 ZT 36" Deck is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2009 ZT models. Find all of your Bad Boy mowers 2009 ZT parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2009 ZT 36" Deck. If you are not able to find the Bad Boy parts for your 2009 ZT please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2009 ZT 36" Deck Assembly
  Position Number SKU Product Title Price
1 041-5200-00 041-5200-00 - Deck Belt (Not for 48"/50" ZT) (See Models Used On For Details)
$80.24
1 060-3500-00 060-3500-00 - 36" Deck - Shell Only
$1338.57
2 033-4000-00 033-4000-00 - Flat Idler-36" ZT-26FI-64
$42.58
3.1 038-5203-00 038-5203-00 - 36" & 52" Gator Mulching Blade
$22.99
3 038-3010-00 038-3010-00 - 36 & 52" High Lift Fusion Blade
$22.99
4 031-6020-00 031-6020-00 - Deck Hanger-Black - (Replaces 031-5351-00 - 031-5352-00 - 031-6000-00 - 031-6010-00)
$141.97
5 031-6000-00 031-6000-00 - OBSOLETE use 031-6020-00 Deck Arm Assembly (obsolete)
use part #031-6020-00
$141.97
6 039-4860-00 039-4860-00 - Deck Chute Bracket for 36 ZT
$16.04
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
8 047-6047-00 047-6047-00 - 3 Chain
$2.99
9 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley
$56.77
10 039-6936-00 039-6936-00 - Deck Idler Bracket
$39.74
11 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
12 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
13 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
14 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
15 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
16 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
17 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 GR 5 Hex Bolts
$2.99
18 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
19 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
20 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
21 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 GR 5 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
22 018-6021-00 018-6021-00 - DO NOT USE - USE #018-6020-00 (obsolete)
use part #018-6020-00
$2.99
23 019-4807-00 019-4807-00 - 5/8 Lockwasher Zinc
$2.99
24 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
25 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
26 032-6033-00 032-6033-00 - Brass Bushing - SS-2024-18 Pump Idler Arms
$3.84
27 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
28 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
29 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
30 019-5010-00 019-5010-00 -.565x1.25x.095 Washer Brass
$2.99
31 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 GR 5 Hex Bolts
$2.99
32 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
33 045-6043-00 045-6043-00 - 5/16 Black Plastic Knob Spindle Cover
$4.39
34 019-5050-00 019-5050-00 - 3/8 X 2-1/4 OD Fibre Washer
$2.99
35 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
37 025-5000-00 025-5000-00 - 1.125 ID X 1.750 OD X.625 THK Spacer Zinc
$6.51
37 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
38 210-3600-00 210-3600-00 - 2007-2009 ZT 36" Deck Discharge Chute
$53.49
