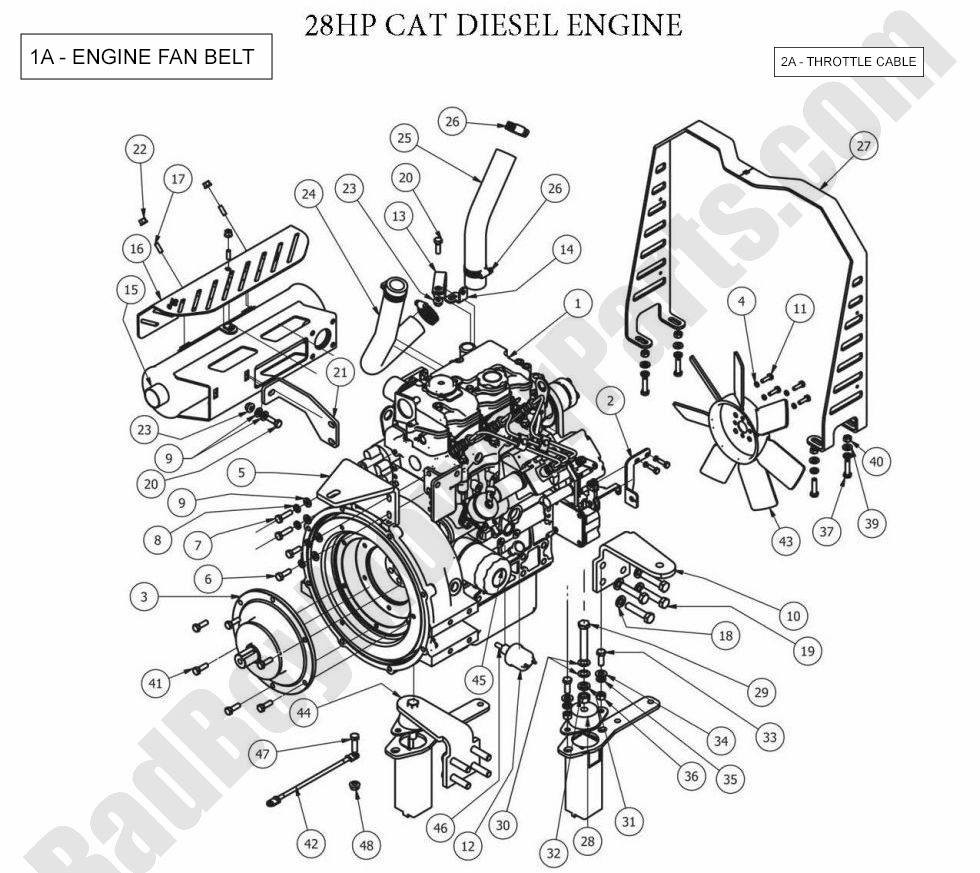

802 - Bad Boy Mower Parts Lookup > 2013 > Diesels > Engine (28Hp)
086-0017-00 - 2019 Deck Actuator Adaptor
015-0004-00

In stock

015-0004-00 - 28hp Caterpillar Diesel Engine

$6,700.00 Usually ship in 1-3 days

In stock

1
041-0010-00 – Caterpillar/Perkins Fan Belt
041-0010-00

In stock

041-0010-00 - Caterpillar/Perkins Fan Belt

$85.17 Usually ship in 1-3 days

In stock

1A
039-1010-00 - Bad Boy Mower Parts
039-1010-00

In stock

039-1010-00 - Diesel Throttle Bracket - Tier

$5.49 Usually ship in 1-3 days

In stock

2
055-8018-00 - Bad Boy Mower Parts
055-8018-00

In stock

055-8018-00 - Throttle Cable

$60.92 Usually ship in 1-3 days

In stock

2A
017-3000-00 - Bad Boy Mower Parts
017-3000-00

In stock

017-3000-00 - Stub shaft - Diesel

$229.90 Usually ship in 1-3 days

In stock

3
019-4008-00 - Bad Boy Mower Parts
019-4008-00

In stock

019-4008-00 - 1/4 Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

4
201-8005-00 - Bad Boy Mower Parts
201-8005-00

In stock

201-8005-00 - Air Cleaner Support Diesel

$42.58 Usually ship in 1-3 days

In stock

5
018-2001-00 - Bad Boy Mower Parts
018-2001-00

In stock

018-2001-00 - M8 - 1.25 - 25MM Class 10.9 He - Bolts Zinc

$2.99 Usually ship in 1-3 days

In stock

6
018-5320-00 - Bad Boy Mower Parts
018-5320-00

In stock

018-5320-00 - M8 - 1.25 - 30MM Hex Head Bolt

$2.99 Usually ship in 1-3 days

In stock

7
019-8051-00 - Bad Boy Mower Parts
019-8051-00

In stock

019-8051-00 - 5/16" Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

8
019-8044-00 - Bad Boy Mower Parts
019-8044-00

In stock

019-8044-00 - 5/16 USS Flat Washer Zinc

$2.99 Usually ship in 1-3 days

In stock

9
201-8008-00 - Bad Boy Mower Parts
201-8008-00

In stock

201-8008-00 - Diesel Motor Side Support Right

$31.22 Usually ship in 1-3 days

In stock

10
018-2000-00 - Bad Boy Mower Parts
018-2000-00

In stock

018-2000-00 - M6x1.0x20MM 8.8 Hex Bolts Zinc

$2.99 Usually ship in 1-3 days

In stock

11
086-7004-00 - Bad Boy Mower Parts
086-7004-00

In stock

086-7004-00 - Oil Pressure Sender- For 2012 and Newer Units

$119.99 Usually ship in 1-3 days

In stock

12
072-8090-00 - Bad Boy Mower Parts
072-8090-00

In stock

072-8090-00 - Diesel Clamp - 1 3/4 Vinyl

$3.63 Usually ship in 1-3 days

In stock

13
039-1015-00 - Bad Boy Mower Parts
039-1015-00

In stock

039-1015-00 - Radiator Hose Clamp Bracket

$2.99 Usually ship in 1-3 days

In stock

14
015-0010-00 - Bad Boy Mower Parts
015-0010-00

In stock

015-0010-00 - 28/35hp Caterpillar Muffler

$225.56 Usually ship in 1-3 days

In stock

15
043-1010-00 - Bad Boy Mower Parts
043-1010-00

In stock

043-1010-00 - 2010-2017 Diesel Muffler Cover

$22.71 Usually ship in 1-3 days

In stock

16
030-8000-00 - Bad Boy Mower Parts
030-8000-00

In stock

030-8000-00 - 1/4x3/4 Set Screw-Diesel Exhau

$2.99 Usually ship in 1-3 days

In stock

17
019-5007-00 - Bad Boy Mower Parts
019-5007-00

In stock

019-5007-00 - 1/2 Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

18
018-6022-00 - Bad Boy Mower Parts
018-6022-00

In stock

018-6022-00 - 12mm Bolt

$2.99 Usually ship in 1-3 days

In stock

19
018-2007-00 - Bad Boy Mower Parts
018-2007-00

In stock

018-2007-00 - 5/16-18 - 1 GR - Hex Bolt Zinc

$2.99 Usually ship in 1-3 days

In stock

20
203-8000-00 - Bad Boy Mower Parts
203-8000-00

In stock

203-8000-00 - Muffler Brace Diesel

$19.25 Usually ship in 1-3 days

In stock

21
013-2050-00 - Bad Boy Mower Parts
013-2050-00

In stock

013-2050-00 - 1/4-20 Nylon Insert Flange Nut

$2.99 Usually ship in 1-3 days

In stock

22
013-9002-00 - Bad Boy Mower Parts
013-9002-00

In stock

013-9002-00 - 5/16-18 Hex Flange Nuts Zinc - /Serrations

$2.99 Usually ship in 1-3 days

In stock

23
051-3001-00 - Bad Boy Mower Parts
051-3001-00

In stock

051-3001-00 - Diesel Radiator Hose - Bottom

$28.09 Usually ship in 1-3 days

In stock

24
051-3000-00 - Bad Boy Mower Parts
051-3000-00

In stock

051-3000-00 - 2010-2020 Top Radiator Hose - Diesel

$22.03 Usually ship in 1-3 days

In stock

25
072-2003-00 - Bad Boy Mower Parts
072-2003-00

In stock

072-2003-00 - 1 1/8 Hose Clamp

$5.82 Usually ship in 1-3 days

In stock

26
201-8001-00 - Bad Boy Mower Parts
201-8001-00

In stock

201-8001-00 - Hood Holder Diesel

$42.79 Usually ship in 1-3 days

In stock

27
032-4050-00 - Bad Boy Mower Parts
032-4050-00

In stock

032-4050-00 - Rubber Compression Mount Side Motor Mount-Diesel

$76.53 Usually ship in 1-3 days

In stock

28
018-7016-00 - Bad Boy Mower Parts
018-7016-00

In stock

018-7016-00 - 1/2-13 - 3 GR 5 - Hex Bolts Zinc

$2.99 Usually ship in 1-3 days

In stock

29
019-5010-00 - Bad Boy Mower Parts
019-5010-00

In stock

019-5010-00 -.565x1.25x.095 Washer Brass

$2.99 Usually ship in 1-3 days

In stock

30
019-5007-00 - Bad Boy Mower Parts
019-5007-00

In stock

019-5007-00 - 1/2 Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

31
013-7018-00 - Bad Boy Mower Parts
013-7018-00

In stock

013-7018-00 - 1/2-13 Hex Nuts Zinc

$2.99 Usually ship in 1-3 days

In stock

32
018-6049-00 - Bad Boy Mower Parts
018-6049-00

In stock

018-6049-00 - 3/8-16 - 1 GR - Hex Bolts Zinc

$2.99 Usually ship in 1-3 days

In stock

33
019-5029-00 - Bad Boy Mower Parts
019-5029-00

In stock

019-5029-00 - 3/8 USS Flat Washer Zinc

$2.99 Usually ship in 1-3 days

In stock

34
019-5037-00 - Bad Boy Mower Parts
019-5037-00

In stock

019-5037-00 - 3/8" Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

35
013-6014-00 - Bad Boy Mower Parts
013-6014-00

In stock

013-6014-00 - 3/8-16 Hex Nuts Zinc

$2.99 Usually ship in 1-3 days

In stock

36
018-5025-00 - Bad Boy Mower Parts
018-5025-00

In stock

018-5025-00 - 5/16-18 - 1-1/4 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

37
019-8044-00 - Bad Boy Mower Parts
019-8044-00

In stock

019-8044-00 - 5/16 USS Flat Washer Zinc

$2.99 Usually ship in 1-3 days

In stock

39
013-8043-00 - Bad Boy Mower Parts
013-8043-00

In stock

013-8043-00 - 5/16-18 Hex Nuts Zinc

$2.99 Usually ship in 1-3 days

In stock

40
018-0016-00 - Bad Boy Mower Parts
018-0016-00

In stock

018-0016-00 - 5/16-18 - 1 Button Head Torx Drive Bolt

$2.99 Usually ship in 1-3 days

In stock

41
086-0004-00 - Bad Boy Mower Parts
086-0004-00

In stock

086-0004-00 - Starter to Chassis Cable - Diesel Models

$7.69 Usually ship in 1-3 days

In stock

42
015-6050-00 - Bad Boy Mower Parts
015-6050-00

In stock

015-6050-00 - Engine Fan - Diesel

$202.89 Usually ship in 1-3 days

In stock

43
201-8009-00 - Bad Boy Mower Parts
201-8009-00

In stock

201-8009-00 - Diesel Side Motor Mount Left

$31.22 Usually ship in 1-3 days

In stock

44
063-2010-00 - Bad Boy Mower Parts
063-2010-00

In stock

063-2010-00 - Caterpillar Oil Filter

$42.79 Usually ship in 1-3 days

In stock

45
019-2050-00 - Bad Boy Mower Parts
019-2050-00

In stock

019-2050-00 - Brass Washer for Weld-on Hinge

$2.99 Usually ship in 1-3 days

In stock

46
018-6012-00 - Bad Boy Mower Parts
018-6012-00

In stock

018-6012-00 - 3/8 - 1 1/2 Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

47
013-5201-00 - Bad Boy Mower Parts
013-5201-00

In stock

013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations

$2.99 Usually ship in 1-3 days

In stock

48

The 2013 Diesels Engine (28Hp) provides robust power for your mower, and keeping it in prime condition is crucial for maintaining optimal performance. At BadBoyMowerParts.com, we offer a wide variety of Bad Boy Mower Parts for the 2013 Diesels Engine (28Hp). Our Bad Boy Mower Part diagrams make it easy to find the exact parts you need, whether you're working on the fuel system, cooling components, or other engine parts. We stock only high-quality Bad Boy Lawn Mower Parts designed to fit your engine’s specifications. By ordering Bad Boy Parts Online, you can quickly access everything necessary to keep your mower's engine running smoothly. Plus, with Free Shipping On Orders Over $100, it’s easier than ever to maintain your mower without extra costs. Visit our website today for all the engine parts you need for your 2013 Diesels mower.
