2015 CZT Elite Engine - Vanguard 810cc

Engine - Vanguard 810cc

BadBoyMowerParts.com has the parts diagrams for the 2015 CZT Elite models. Find all of your Bad Boy parts for your 2015 CZT Elite parts here. We are your Bad Boy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2015 CZT Elite Engine (Vanguard 810cc). If you are not able to find the Bad Boy parts for your 2015 CZT Elite please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

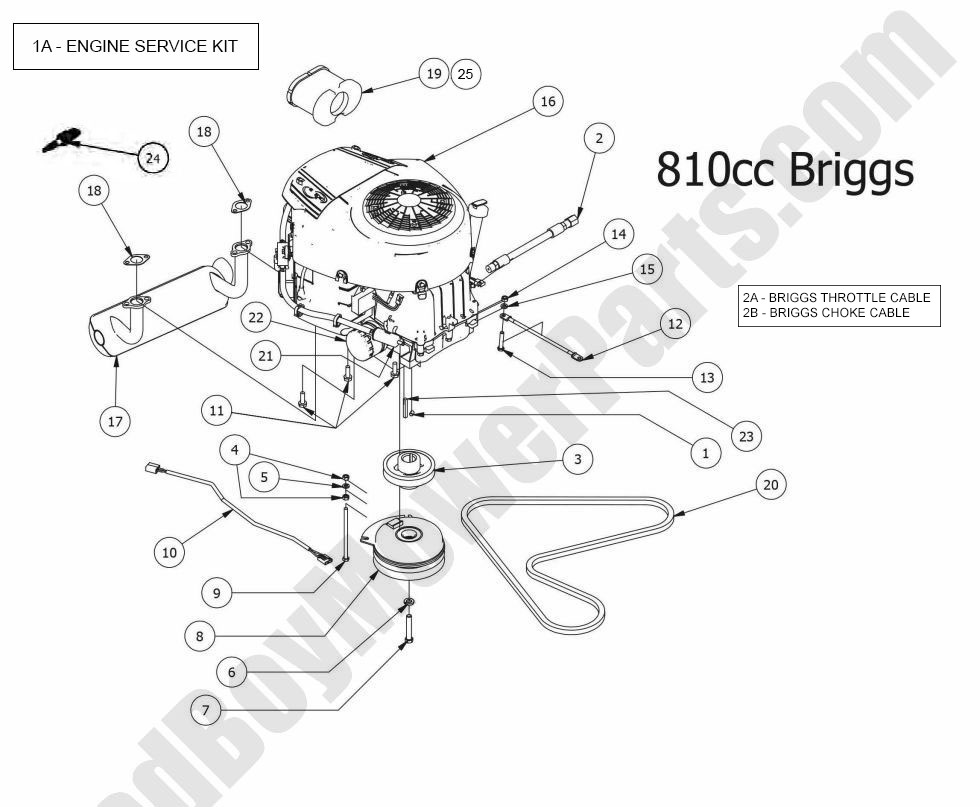

2015 CZT Elite Engine - Vanguard 810cc
  Position Number SKU Product Title Price
1A 063-2000-04 063-2000-04 - Briggs 30hp & CXI Engine Service Kit
$92.93
1 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
2 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
3 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
4 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
5 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
6 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
7 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
8 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
9 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 GR 5 Hex Bolt
$2.99
10 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
11 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
12 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
13 018-8059-00 018-8059-00 - 5/16-18x1-3/4 GR 5 Hex Bolts
$2.99
17 015-0027-00 015-0027-00 - Exhaust Briggs 26/27/30hp (See Models Used On For Detail)
$212.96
18 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
19 063-3003-00 063-3003-00 - 30hp & CXI Briggs Air Filter
$32.58
20 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
21 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
22 063-8018-00 063-8018-00 - Oil Filter
$21.39
23 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
24 015-8000-00 015-8000-00 - Spark Plug-Kohler Briggs
$10.99
25 063-1000-00 063-1000-00 - Pre-Cleaner for 063-3003-00
$12.83
