2015 MZ Engine - Kohler KT-725

Engine - Kohler KT-725

BadBoyMowerParts.com has the parts diagrams for the 2015 MZ models. Find all of your Bad Boy parts for your 2015 MZ parts here. We are your Bad Boy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2015 MZ Engine (Kohler KT-725). If you are not able to find the Bad Boy parts for your 2015 MZ please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

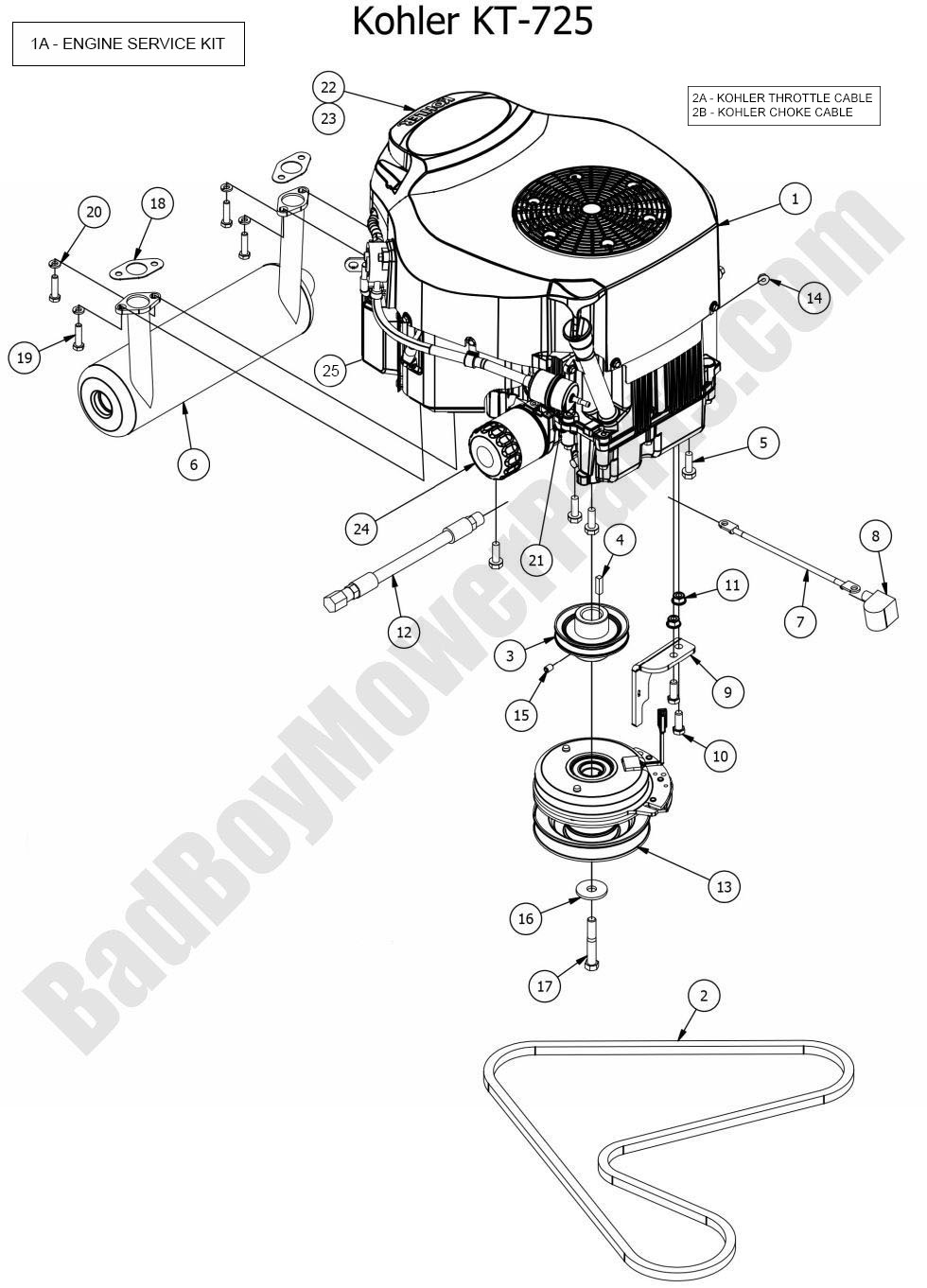

2015 MZ Engine - Kohler KT-725
  Position Number SKU Product Title Price
1A 063-2000-06 063-2000-06 - Kohler 7000 Series Engine Service Kit
$94.47

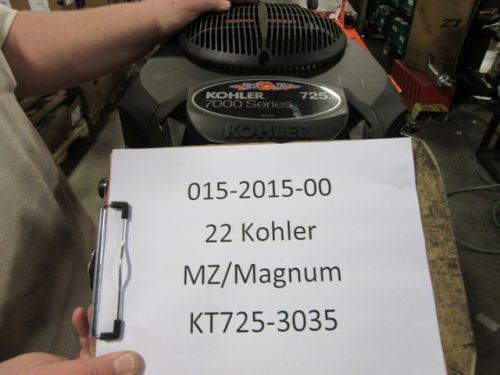

1 015-2015-00 015-2015-00 - 22 Kohler MZ/Magnum-KT725-3035
$1924.93
2 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
3 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
4 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
5 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
6 015-0060-00 015-0060-00 - 2014-2016 MZ Muffler-25 Kohler
$198.76
7 064-0030-00 064-0030-00 - 24 inch Black Cable
$18.72
8 103-5400-00 103-5400-00 - Black Cable Boot
$4.37

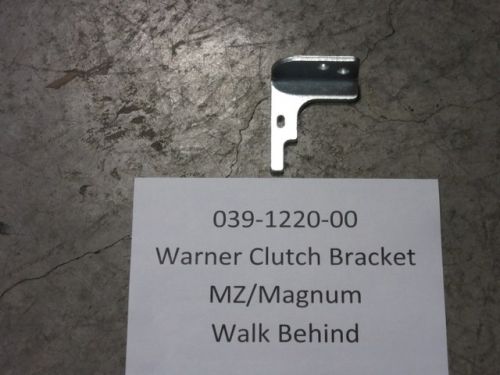

9 039-1220-00 039-1220-00 - Warner Clutch BracketFor MZ and Magnums
$12.63
10 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
12 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
13 070-0050-00 070-0050-00 - 2015 & 2016 Magnum/MZ PTO Clutch
$269.69
14 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/ Serrations
$2.99
15 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
16 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
17 018-5401-00 018-5401-00 - 7/16 x 2 3/4 Fine Thread Bolt
$2.99
18 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
19 018-2006-00 018-2006-00 - 5/16-18 X 1-1/4 GR 5 Hex Bolt
$2.99
20 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
21 063-5001-00 063-5001-00 - 25/26 HP Koh Fuel Filter
$19.25
22 063-5002-00 063-5002-00 - 25/26 HP Koh Precleaner ZT/MZ
$8.74
23 063-5003-00 063-5003-00 - 25/26 HP Koh Air Filter ZT/MZ
$26.74
24 063-5004-00 063-5004-00 - 25 HP Kohler Oil Filter (Short) ZT/MZ
$23.53
25 015-8000-00 015-8000-00 - Spark Plug-Kohler Briggs
$10.99
