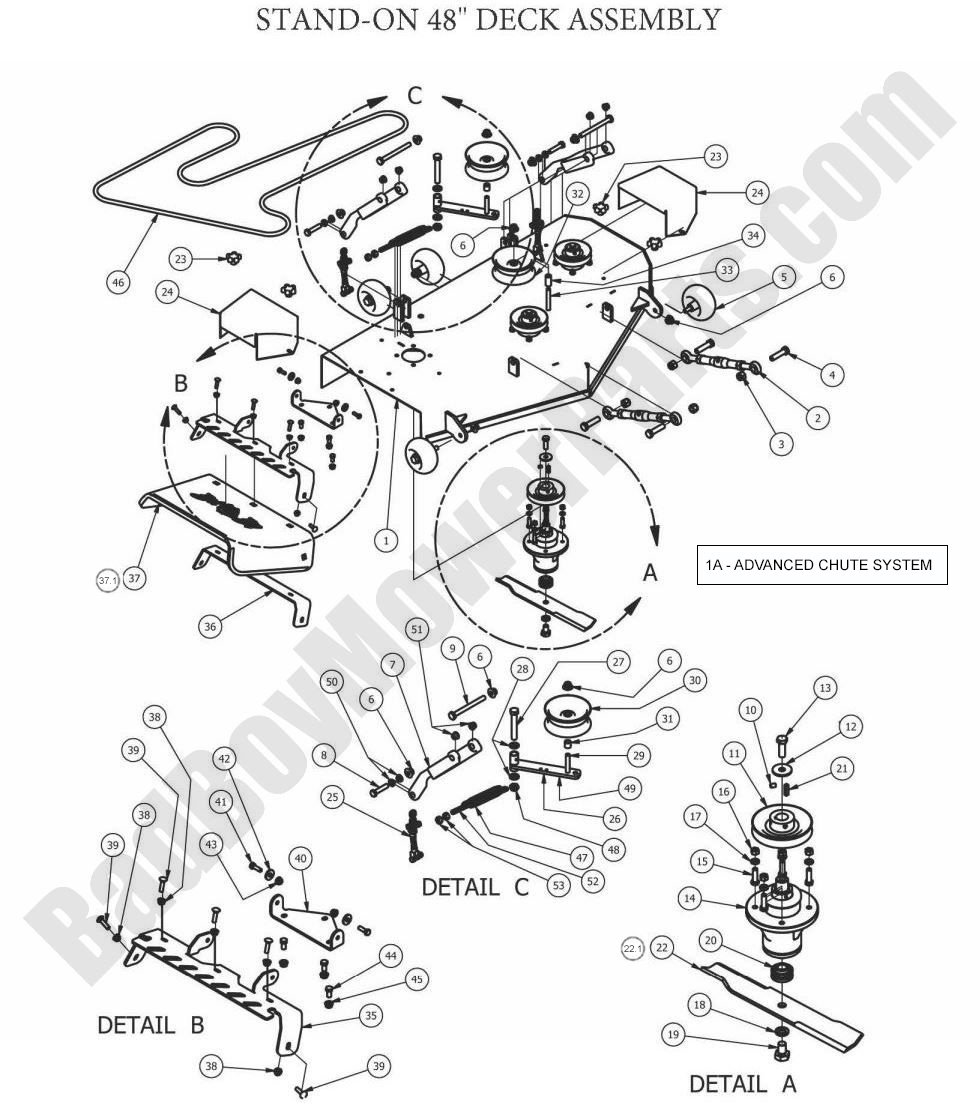

2012 Stand-On 48" Deck Assembly

48" Deck Assembly

The Bad Boy Mower parts diagram for the 2012 Stand-On 48" Deck is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2012 Stand-On models. Find all of your Bad Boy mowers 2012 Stand-On parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2012 Stand-On 48" Deck. If you are not able to find the Bad Boy parts for your 2012 Stand-On please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2012 Stand-On 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$266.43
1 060-1010-00 060-1010-00 - 2012-2014 48" Stand Up Deck
$1176.99
2 048-6056-00 048-6056-00 - Toplink/Turnbuckle-Deck Adjust (See Models Used On For Details)
$53.49
3 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
4 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 GR 5 Hex Bolts
$2.99
5A 022-1000-98 022-1000-98 - Deck Wheel Assembly
$25.99
5 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 031-6010-00 031-6010-00 - Deck Hanger (One Piece) (obsolete)
use part #031-6020-00
$141.97
8 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 GR 5 Hex Bolts
$2.99
9 018-1090-00 018-1090-00 - 1/2-13x5 1/2 Hex Bolt Grade 5
$3.29
10 030-6029-00 030-6029-00 - 3/8-16x1/2 Socket Set Cup Poin
$2.99
11 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
12 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
13 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
14 037-8000-50 037-8000-50 - Double Bearing Spindle - Aluminum Housing (obsolete)
use part #037-4000-00
$312.34
15 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
16 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
17 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
18 019-4807-00 019-4807-00 - 5/8 Lockwasher Zinc
$2.99
19 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
20 037-8001-00 037-8001-00 - Double Bearing for Spindle (See Models Used On For Details)
$46.78
21 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
22.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
22 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
23 045-6043-00 045-6043-00 - 5/16 Black Plastic Knob Spindle Cover
$4.39
24 014-6010-00 014-6010-00 - Plastic Pulley Cover (See Models Used On For Details) (obsolete)
use part #014-4000-00
$28.39
25 047-4000-00 047-4000-00 - 4 - Link Adjustable Deck Hanger - Pup Models (obsolete)
use part #046-6048-98
$32.09
26 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
27 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
28 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
29 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99
30 033-5001-00 033-5001-00 - 5 3/4" Flat Idler Double Width Pulley
$56.77
31 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
32 033-7201-00 033-7201-00 - 5 3/4 Idler Pulley
$35.48
33 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
34 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
35 039-4870-00 039-4870-00 - 48/52 Discharge Top Bracket Ru bber Chute Assembly
$42.52
36 039-4871-00 039-4871-00 - 48/52 Discharge Lower Bracket Rubber Chute
$32.65
37.1 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$181.89
37 210-6005-00 210-6005-00 - Rubber Discharge Chute (See Models Used On For Detail)
$59.91
38 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
39 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
40 206-6017-00 206-6017-00 - Discharge Chute Hanger-Deck (See Models Used On For Detail)
$39.03
41 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
42 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
44 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
45 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
46 041-5200-00 041-5200-00 - Deck Belt (Not for 48"/50" ZT) (See Models Used On For Details)
$80.24
47 034-2009-00 034-2009-00 - Deck/Pump Idler Spring (See Models Used On For Detail)
$18.18
48 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
49 039-6945-98 039-6945-98 - Deck Idler Assy (See Models Used On For Details)
$78.08
50 032-5057-00 032-5057-00 - Flange for Lower Deck Arm SF-1622-5
$5.82
51 032-5056-00 032-5056-00 - Flange Bushing-Deck Arms EF081108 - Frame Mounted
$5.82
52 018-2004-00 018-2004-00 - All Thread-Pump Idler Tensione
$12.94
53 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
