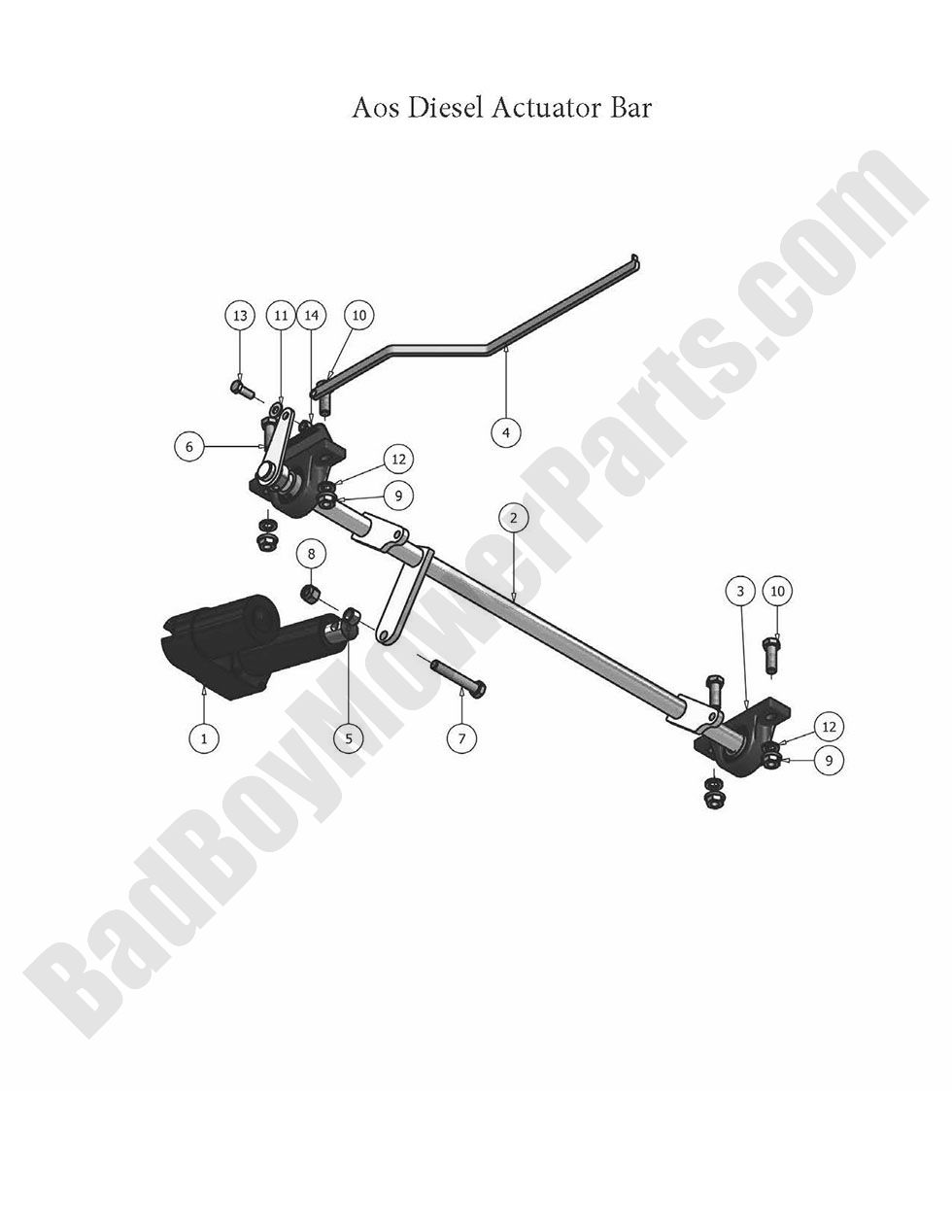

2010 AOS Diesel Actuator Bar

Actuator Bar

The Bad Boy Mower parts diagram for the 2010 AOS Diesel Actuator Bar is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2010 AOS Diesel models. Find all of your Bad Boy mowers 2010 AOS Diesel parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2010 AOS Diesel Actuator Bar. If you are not able to find the Bad Boy parts for your 2010 AOS Diesel please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2010 AOS Diesel Actuator Bar
  Position Number SKU Product Title Price
1 035-7033-00 035-7033-00 - Actuator
$437.36
3 017-7008-00 017-7008-00 - 1" Pillow Block Bearing
$21.29
4 028-5203-00 028-5203-00 - Height Indicator (See Models Used On For Detail)
$28.39
5 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
6 031-7000-00 031-7000-00 - Height Indicator Tab and Collar (See Models Used On For Details)
$11.29
7 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
8 013-6037-00 013-6037-00 - 1/2-13 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
9 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
10 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 GR 5 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
11 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
12 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
13 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
14 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
