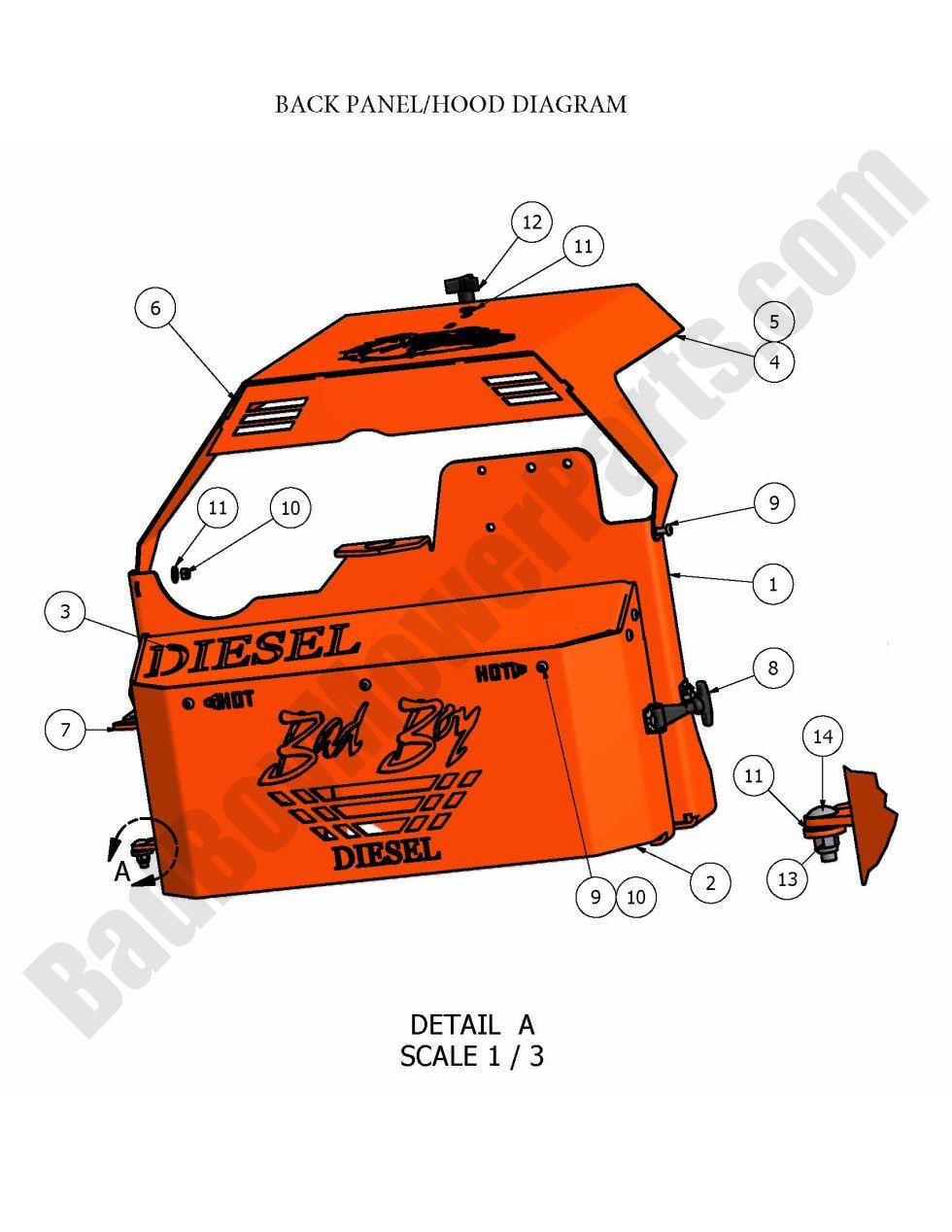

The Bad Boy Mower parts diagram for the 2008 Diesel Back Panels is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the parts diagrams for the 2008 Diesel models. Find all of your Bad Boy mowers 2008 Diesel parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. The Bad Boy parts diagram below is for the 2008 Diesel Back Panels. If you are not able to find the Bad Boy parts for your 2008 Diesel please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.
Position Number | SKU | Product Title | Price | ||
---|---|---|---|---|---|
1 | 026-8030-00 | 026-8030-00 - Pump Plate Diesel (See Models Used On For Details) |
$117.99
|
||
2 | 014-5920-00 | 014-5920-00 - Diesel Back Pump Cover 2008 |
$42.79
|
||
4 | 059-8010-00 | 059-8010-00 - 2008-2018 Diesel Hood 4cyl |
$171.19
|
||
5 | 059-8020-00 | 059-8020-00 - 2008-2017 Diesel Hood 3 Cyl |
$171.19
|
||
6 | 059-8011-00 | 059-8011-00 - 2008-2010 Diesel Hood back (Suspension) |
$53.49
|
||
7 | 039-0070-00 | 039-0070-00 - Back Cover Hinge Bracket |
$14.19
|
||
8 | 052-5020-00 | 052-5020-00 - Rubber Pump Cover Latch 2010 and below-Diesel and AOS |
$14.19
|
||
9 | 018-5007-00 | 018-5007-00 - 5/16-18 X 3/4 Button Head Sock et C/S 18-8 SS |
$2.99
|
||
10 | 013-8047-00 | 013-8047-00 - 5/16-18 Nylon Insert Locknut Z inc Orange Nylon |
$2.99
|
||
11 | 019-6042-00 | 019-6042-00 -.360 ID Plastic Washer |
$2.99
|
||
12 | 045-6043-00 | 045-6043-00 - 5/16 Black Plastic Knob Spindle Cover |
$4.39
|
||
14 | 018-8065-00 | 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc |
$2.99
|
