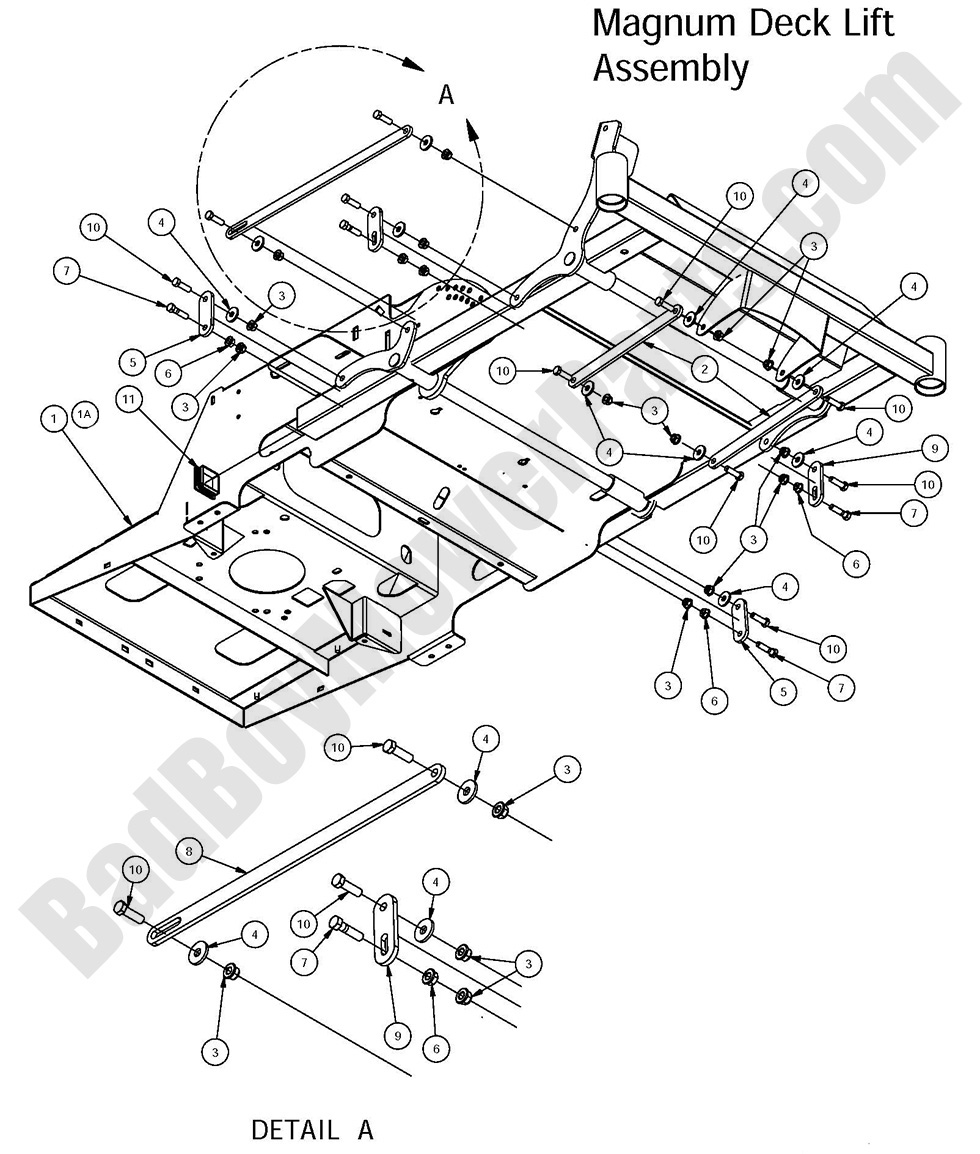

2016 MZ Magnum Deck Lift Assembly

Deck Lift Assembly

You have selected the Deck Lift Assembly diagram for your 2016 Bad Boy MZ Magnum. BadBoyMowerParts.com has the diagrams you need for the 2016 MZ Magnum models. Find all of your Bad Boy parts for your 2016 MZ Magnum parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 MZ Magnum Deck Lift Assembly . If you are not able to find the Bad Boy parts for your 2016 MZ Magnum please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

2016 MZ Magnum Deck Lift Assembly
  Position Number SKU Product Title Price
1A 070-5900-00 070-5900-00 - 2014 - 2016 54" MZ Magnum Frame
$1563.84
1 070-5800-00 070-5800-00 - 2012-2016 MZ, 2013-2016 MZ Magnum Frame
$1563.84
2 031-1010-00 031-1010-00 - MZ Front Arm
$25.54
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
5 025-0010-00 025-0010-00 - 2010-2016 MZ/MZ Magnum Deck Spacer - Rear Hanger Tab
$18.94
6 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
7 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
8 028-0050-00 028-0050-00 - MZ Deck Linkage Rod
$7.28
9 025-0020-00 025-0020-00 - 42/48 Deck Spacer MZ (Front) 2014 54 MZ
$18.94
10 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
11 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
