2016 Outlaw XP Engine - Vanguard 993cc

Engine - Vanguard 993cc

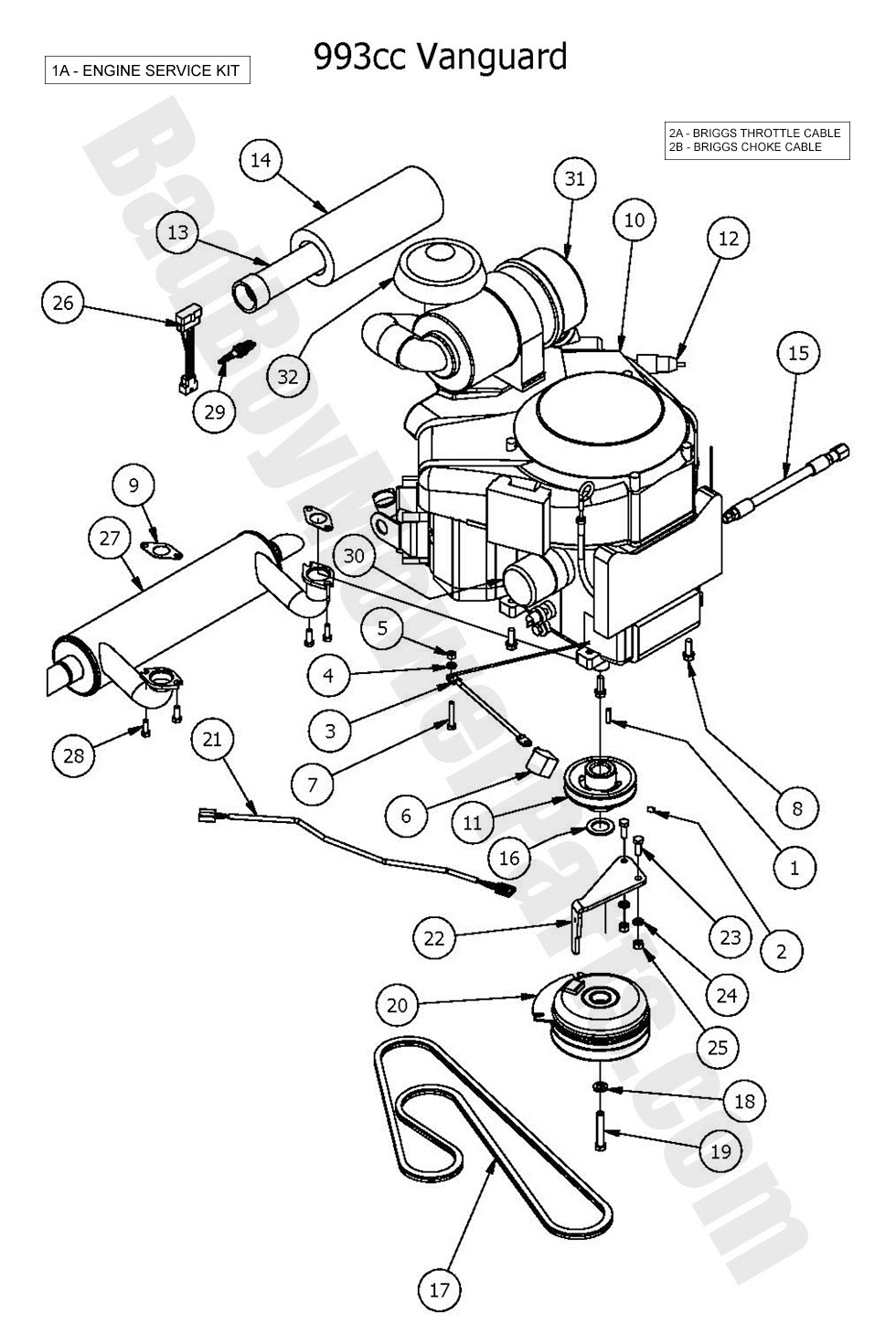

You have selected the Engine - Vanguard 993cc diagram for your 2016 Bad Boy Outlaw XP. BadBoyMowerParts.com has the diagrams you need for the 2016 Outlaw XP models. Find all of your Bad Boy parts for your 2016 Outlaw XP parts here. We are your BadBoy mower parts source. The Bad Boy parts diagram below is for the 2016 Outlaw XP Engine - Vanguard 993cc . If you are not able to find the Bad Boy parts for your 2016 Outlaw XP please contact us using our Bad Boy parts live chat or toll free at 318.654.8520. Thanks for shopping with us for all of your Bad Boy parts needs.

Bad Boy Mower Parts Lookup

2016 Outlaw XP Engine - Vanguard 993cc
  Position Number SKU Product Title Price
1A 063-2000-10 063-2000-10 - Briggs Vanguard 810/993/999cc Engine Service Kit
$127.15
1 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
2 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
3 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
4 019-8051-00 019-8051-00 - 5/16 Lockwashwer Zinc
$2.99
5 013-8043-00 013-8043-00 - 5/16-18 Hex Nuts Zinc
$2.99
6 103-5400-00 103-5400-00 - Black Cable Boot
$4.37
7 018-8059-00 018-8059-00 - 5/16-18x1-3/4 GR 5 Hex Bolts
$2.99
8 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
9 015-2708-00 015-2708-00 - Exhaust Gasket - 36hp Vanguard
$16.04
10 015-3600-00 015-3600-00 - 36hp Briggs Vanguard Engine
$4686.00
11 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley w/ Extended Shaft (See Models Used On For Details)
$42.58
12 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
13 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
14 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
15 051-5402-00 051-5402-00 - 14mm Oil Drain Hose-36hp Vanguard
$31.22
16 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
17 041-8411-00 041-8411-00 - Pump Belt (See Models Used On For Detail)
$64.19
18 019-8053-00 019-8053-00 - 7/16 Lockwasher zinc
$2.99
19 018-5300-00 018-5300-00 - 7/16-20 X 2-1/2 GR 5 Hex Bolt
$2.99
20 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$299.59
21 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
22 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch Pup/Lightning/Outlaws
$20.67
23 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
24 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
25 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
26 086-9001-00 086-9001-00 - Harness Adaptor-36 Vanguard
$35.30
27 015-0049-00 015-0049-00 - Exhaust-36hp Vanguard
$170.24
28 018-0017-00 018-0017-00 - Torx Bolt-Exhaust-23hp Vanguar
$5.82
29 015-8000-00 015-8000-00 - Spark Plug-Kohler Briggs
$10.99
30 063-8018-00 063-8018-00 - Oil Filter
$21.39
31 015-2705-00 015-2705-00 - 30KO pre-2010/26KA complete canis.
$288.89
32 063-2045-00 063-2045-00 - Rain Cap-Fits all Canisters (obsolete)
use part #088-3060-00
$53.49
