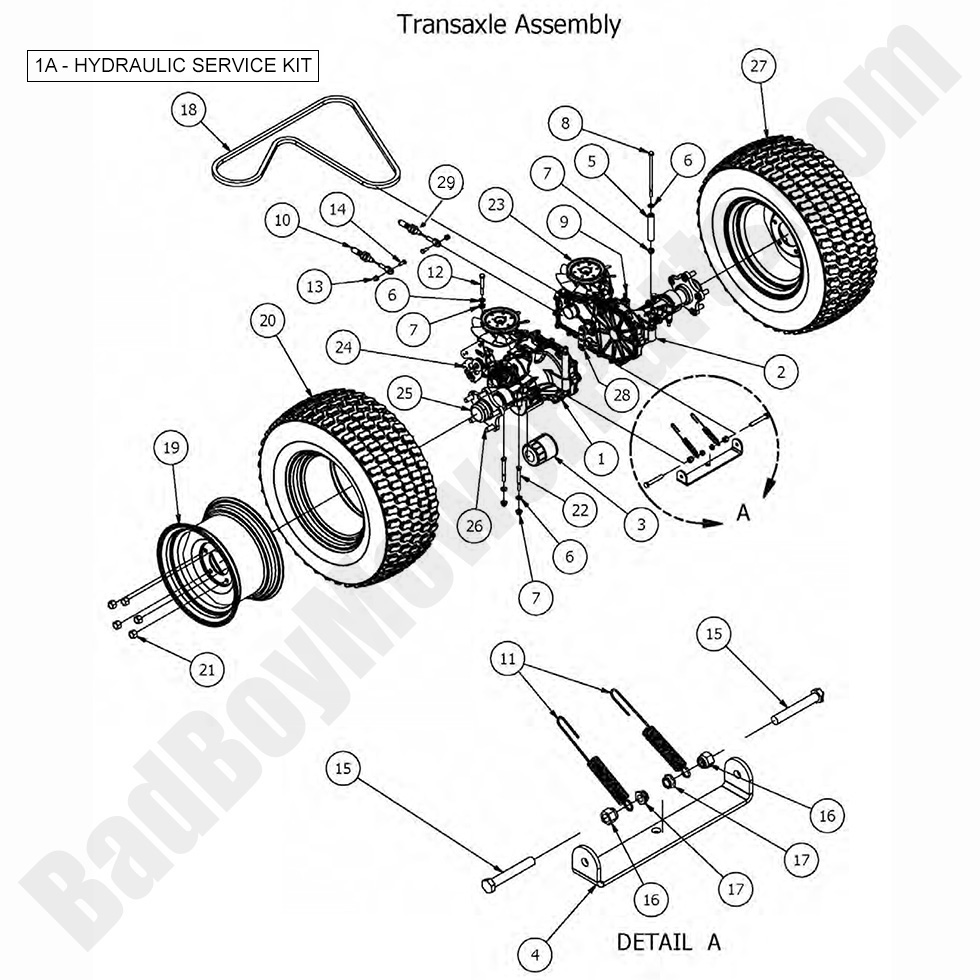

2017 Compact Outlaw Transaxle Assembly

Transaxle Assembly

The Bad Boy Mower Transaxle Assembly for the 2017 Compact Outlaw is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Compact Outlaw models as well. Find all of your Bad Boy mowers 2017 Compact Outlaw parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Compact Outlaw please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Compact Outlaw Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - 2020 Models and Older - ZT2800 - ZT3100 - ZT3200 & ALL ZT3400 Hydro Service Package With Expansion Tanks
$104.74
1 050-6000-00 050-6000-00 - ZT3400 Transaxle - Left (obsolete)
use part #050-6000-01
$877.39
2 050-6001-00 050-6001-00 - ZT3400 Transaxle - Right (obsolete)
use part #050-6001-01
$877.39
3 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
4 028-4802-00 028-4802-00 - Crossover Bar 2016-2017 (See Models Used On For Detail) (obsolete)
use part #028-4801-00
$28.10
5 025-0070-00 025-0070-00 - 2017-2022 Transaxle Spacer
$6.41
6 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
7 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
8 018-5355-00 018-5355-00 - 5/16-18 X 6 GR 5 Hex Bolt Zinc
$2.99
9 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
10 064-3050-00 064-3050-00 - Brake Cable-18.50"
$51.47
11 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
12 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
13 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
14 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
15 018-2071-00 018-2071-00 - 3/8 x 2 1/2 Hex Tap Bolt - Ful l Thread - ACS
$2.99
16 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
17 013-9003-00 013-9003-00 - 3/8 Nylock Jam Nut 1/2 Nut
$2.99
18 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
19 022-3011-00 022-3011-00 - 12x7" Black Wheel-48" EZT Only
$114.48
20 022-3025-00 022-3025-00 - 23 x 8.50 - 12 Turf Tire
$224.99
21 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
22 018-4701-00 018-4701-00 - 5/16-18 X 3 GR 5 Hex Bolt Zinc
$2.99
23 050-2072-00 050-2072-00 - Fan/Pulley Kit for CZT
$63.96
24 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
25 050-2076-00 050-2076-00 - ZT Transaxle Wheel Hub
$90.56
26 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
27 022-3010-00 022-3010-00 - 23x8.50-12 Tire Assembly-Black
$265.99
28 092-8000-00 092-8000-00 - Transaxle Brake Lever
$21.28
29 064-3051-00 064-3051-00 - Brake Cable-24.50" (See Models Used On For Details)
$57.72
