2017 Diesel - 1100cc Frame & Deck Lift

Frame & Deck Lift

The Bad Boy Mower Frame & Deck Lift for the 2017 Diesel - 1100cc is shown below. You may select the item you need by clicking on the Bad Boy Parts item number in the diagram or by finding it in the list below the diagram. BadBoyMowerParts.com has the bad boy mowers parts diagrams for the 2017 Diesel - 1100cc models as well. Find all of your Bad Boy mowers 2017 Diesel - 1100cc parts here. We are your BadBoy mower parts source. Thanks for shopping with us for all of your Bad Boy parts needs. If you are not able to find the Bad Boy parts for your 2017 Diesel - 1100cc please contact us using our Bad Boy parts live chat or toll free at 318.654.8520.

Bad Boy Mower Parts Lookup

2017 Diesel - 1100cc Frame & Deck Lift
  Position Number SKU Product Title Price
1A 088-3500-00 088-3500-00 - Mount Assist Handle
$58.84

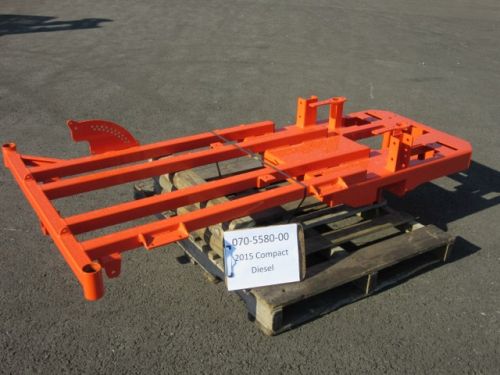

1 070-5580-00 070-5580-00 - 2015-2018 Compact Outlaw Diesel
$1497.99
2 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
3 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
4 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
5 030-3050-00 030-3050-00 - 10 X 1/2 Pan Phil a T/S Zinc
$2.99
6 029-4010-00 029-4010-00 - Button Bumper
$2.99

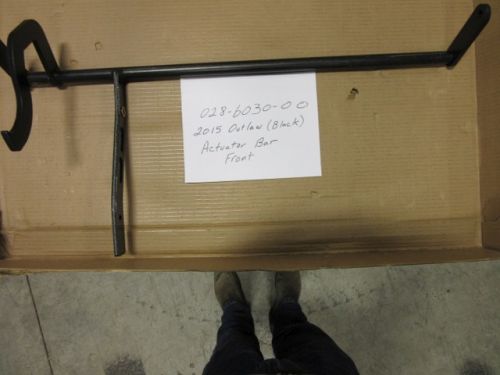

7 028-6030-00 028-6030-00 - Actuator Bar (Front) (See Models Used On For Detail)
$202.99

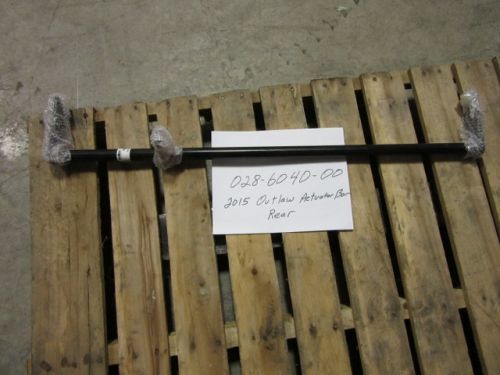

8 028-6040-00 028-6040-00 - Actuator Bar (Rear) (See Models Used On For Detail)
$188.99
9 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99

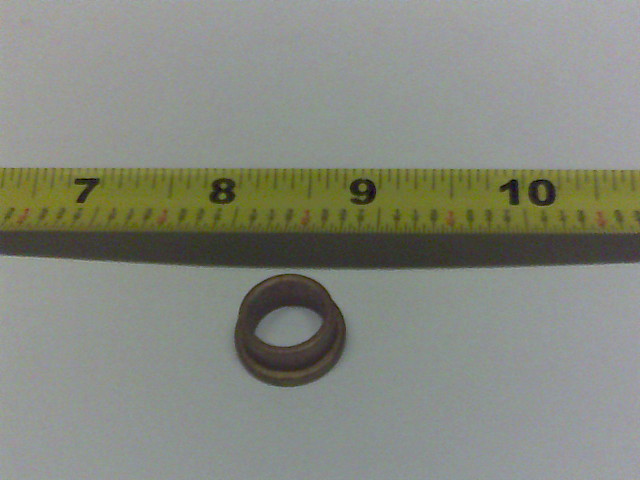

10 032-3000-00 032-3000-00 - Actuator Bar Bushing
$2.99
11 018-0008-00 018-0008-00 - 1/2 x 1 1/2 Carriage Bolt
$2.99
12 017-9000-00 017-9000-00 - Two Piece Pillow Block-Male
$10.99
13 017-9050-00 017-9050-00 - Two Piece Pillow Block-Female
$10.99
14A 017-9075-00 017-9075-00 - Pillow Block Assembly (See Models Used On For Details)
$23.41
14 017-9025-00 017-9025-00 - Two Piece Pillow Block-Plate
$32.09
15 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt Yello
$4.39
16 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29

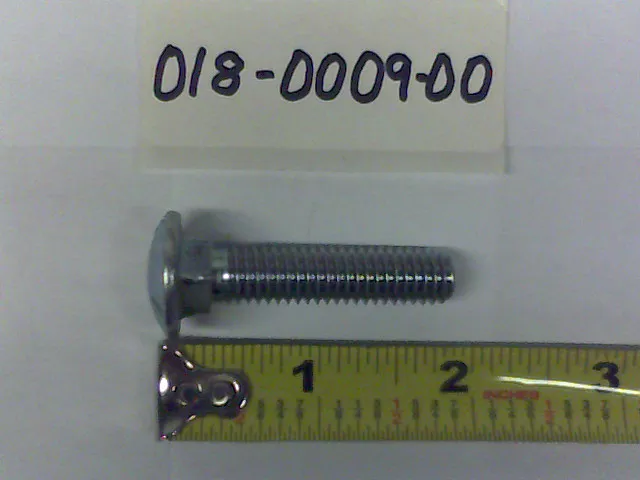

17 018-0009-00 018-0009-00 - 3/8 x 1 3/4 Carriage Bolt
$2.99

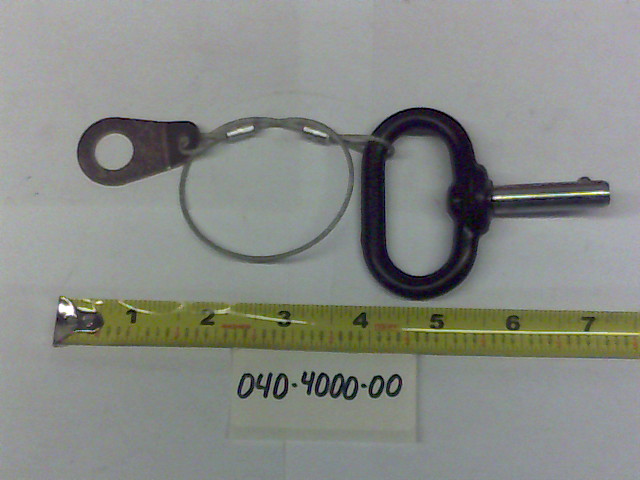

18 040-4000-00 040-4000-00 - MZ, Diesel & Outlaw Deck Height Lever Pin
$17.16
19 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
20 031-0100-00 031-0100-00 - Deck Lever Lock (See Models Used On For Details)
$18.45
21 026-2100-00 026-2100-00 - Diesel & Outlaw Height Indicator Plate (Outer)
$12.83

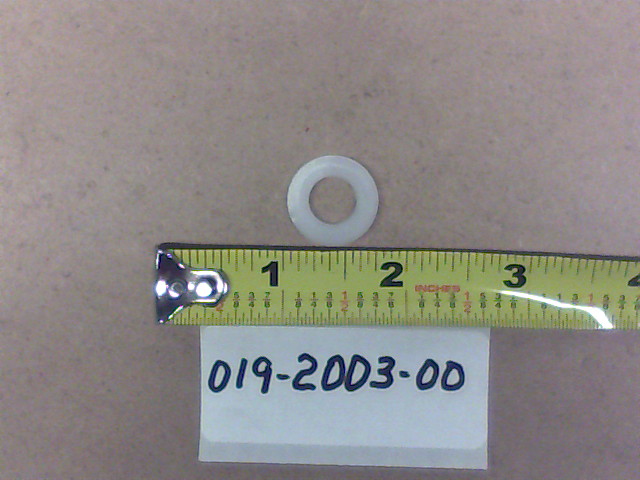

22 019-2003-00 019-2003-00 -.390x.750x.062 Nylon Washer
$2.99

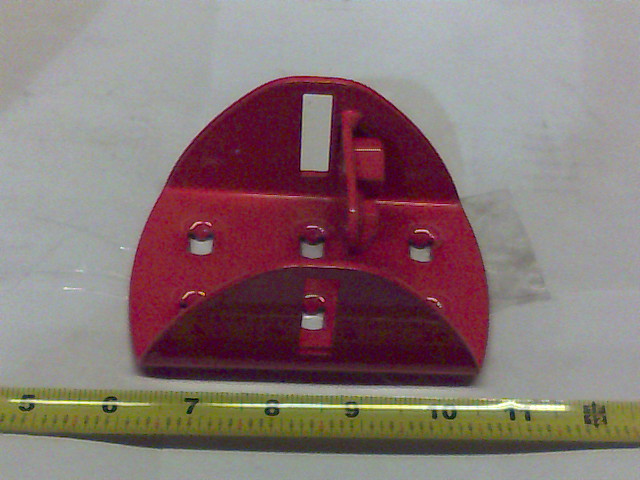

23 026-0013-00 026-0013-00 - 2010-2018 Outlaw & 2012-2018 Compact Diesel Deck Lift Pedal
$21.28
24 040-5000-00 040-5000-00 - Pull Pin - Foot Assist w/Ring
$21.39

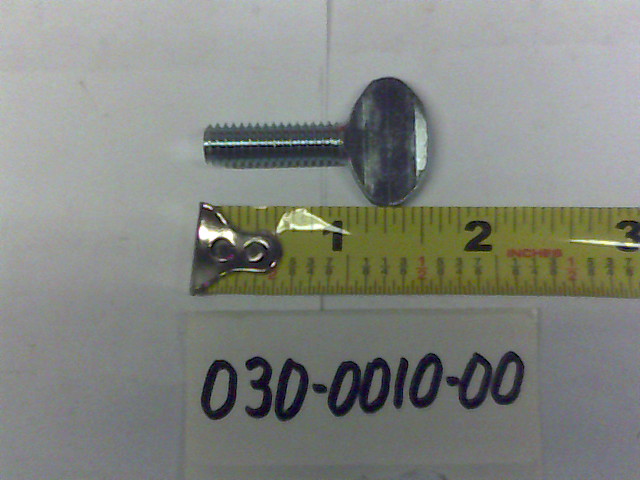

25 030-0010-00 030-0010-00 - 5/16-18 x 1 Thumb Screw Zinc (No Shoulder)
$3.29
26 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
27 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
28 087-6100-00 087-6100-00 - 250lb Gas Spring - 61" Outlaw Deck Damper
$78.01
29 018-2055-00 018-2055-00 - 10mm Damper Stud-XP Linkage
$2.99
29 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
30 028-6055-00 028-6055-00 - Linkage Bar Suspension Frame (See Models Used On For Detail)
$28.39

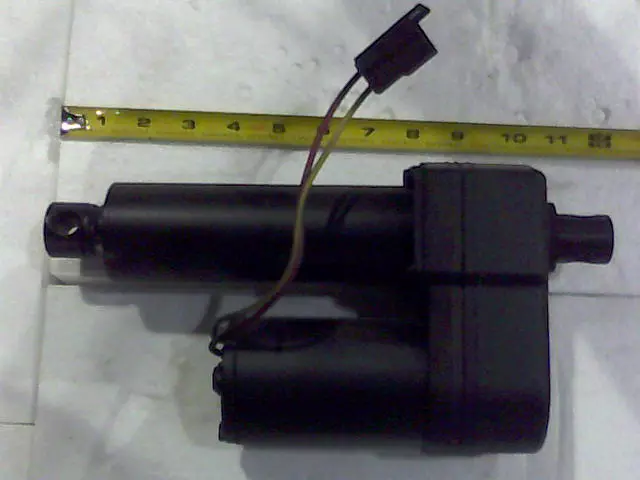

31 035-7033-00 035-7033-00 - Actuator
$437.36
32 018-0022-00 018-0022-00 - 1/2-13 x 2 Grade 8 Hex Bolt
$2.99
33 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
34 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknu t Zinc Orange Nylon
$2.99
35 018-7016-00 018-7016-00 - 1/2-13 X 3 GR 5 Hex Bolts Zinc
$2.99

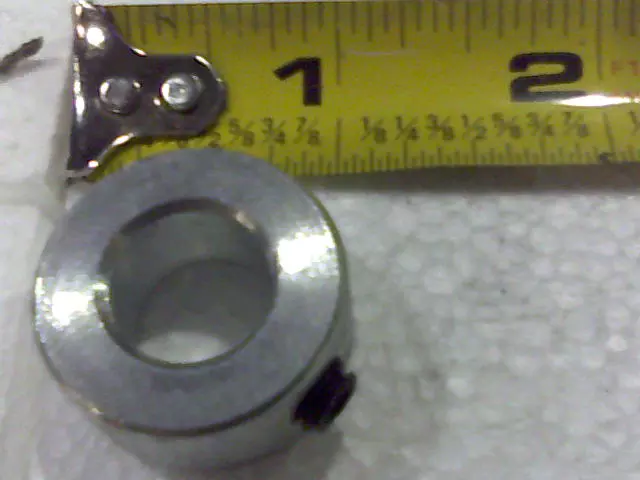

36 025-7036-00 025-7036-00 - 1/2 Set Collar w/set collar
$4.60
37 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
38 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
39 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/ Serrations
$2.99

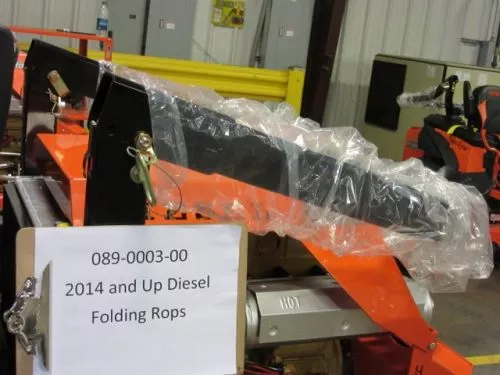

40 089-0003-00 089-0003-00 - 2016-2018 Diesel 2x3 Folding ROPS
$801.43
41 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 GR 5 Hex Bolts
$2.99
42 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99

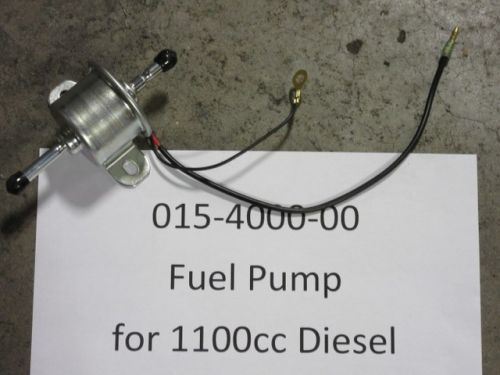

43 015-4000-00 015-4000-00 - Fuel Pump for 1100cc Diesel
$354.94

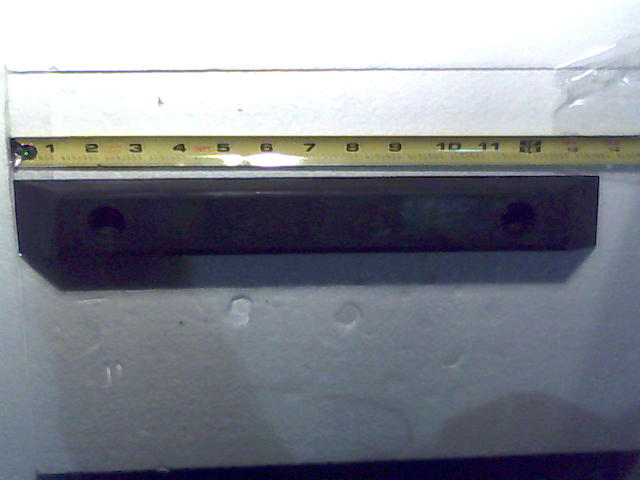

44 029-7037-00 029-7037-00 - 14 Bumper
$42.79
45 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
46 030-7039-00 030-7039-00 - 14 X 1-1/2 HWA A T/S Zinc
$2.99
47 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
48 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99

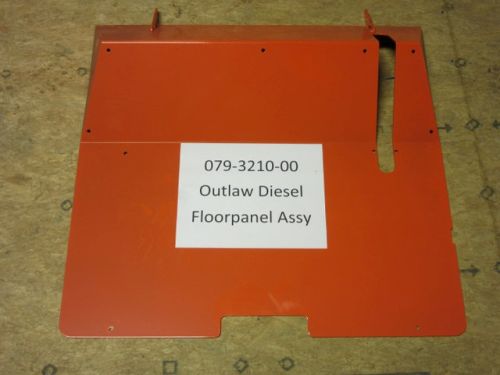

49 079-3210-00 079-3210-00 - 2017-2018 Diesel Floor panel Assembly
$117.69

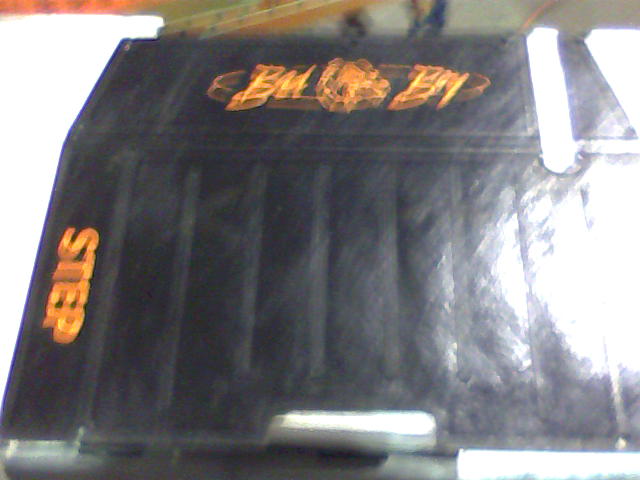

50 081-2008-00 081-2008-00 - Foot Assist Floor Mat (See Models Used On For Details)
$66.76
51 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
52 018-8064-00 018-8064-00 - 1/4-20 X 5/8 BS C/S 18-8 SS
$2.99

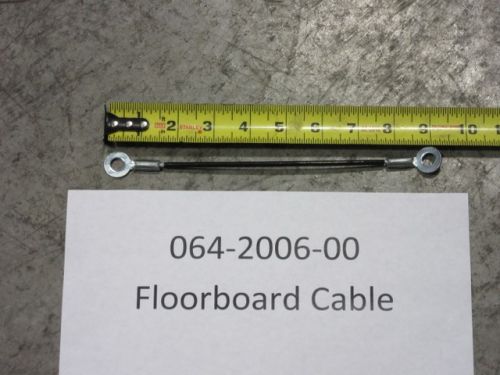

53 064-2006-00 064-2006-00 - Floorboard Cable
$15.55
