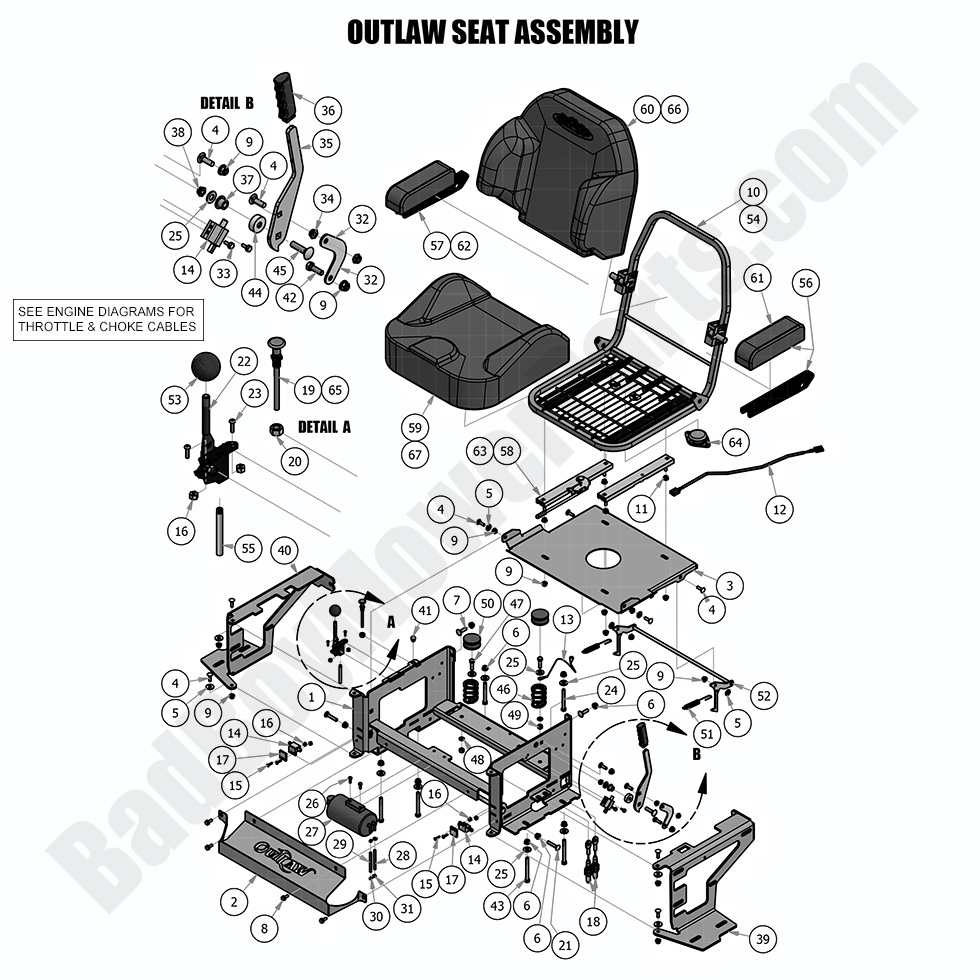

2018 Outlaw & Outlaw Extreme Seat Assembly

Seat Assembly

Find the parts for your 2018 Outlaw & Outlaw Extreme Seat Assembly at BadBoyMowerParts.com. We have the Seat Assembly parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

2018 Outlaw & Outlaw Extreme Seat Assembly
  Position Number SKU Product Title Price
1 080-5116-17 080-5116-17 - 2017 Outlaw Seat Bracket
$427.99
2 014-2100-00 014-2100-00 - Outlaw Cooler Cover
$21.39
3 026-2016-00 026-2016-00 -Outlaw Seat Plate (See Models Used On For Details)
$99.32
4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
5 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
6 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
7 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
8 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F
$2.99
9 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
10 071-5060-00 071-5060-00 - 2011-2018 Outlaw Models & 2019 Rebel Seat
$748.99
11 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
12 036-5300-00 036-5300-00 - Seat Switch Adaptor
$15.55
13 064-8081-00 064-8081-00 - Seat Cable (See Models Used On For Details)
$15.60
14 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
15 018-8058-00 018-8058-00 - 10-24 X 1 BS C/S 18-8 SS
$2.99
16 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
17 025-6041-00 025-6041-00 - Switch Block Plastic
$2.99
18 064-8056-00 064-8056-00 - Long Brake Cable
$53.49
19 054-8017-00 054-8017-00 - 62" Choke Cable For MZ, ZT, CZT, Maverick, Rebel, Rogue, Outlaw XP Also Works On Outlaw & Pup/Lightning Models with 30hp Kohler (Not For 2013-2016 MZs With Kawasaki Engines)
$25.80
20 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nuts Zinc
$2.99
21 018-0009-00 018-0009-00 - 3/8 x 1 3/4 Carriage Bolt
$2.99
22 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
23 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
24 018-4700-00 018-4700-00 - 3/8-16 X 3 GR 5 Hex Bolts Zinc
$2.99
25 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
26 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT CL 8
$2.99
27 067-0020-00 067-0020-00 - Carbon Canister ZT,CZT,Outlaw RY652CC
$62.40
28 051-8072-00 051-8072-00 - 1/4" Vinyl Tubing - Black (Priced Per Foot)
$2.99
29 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
30 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
31 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 Vinyl Hose (See Models Used On For Detail)
$2.99
32 039-0150-00 039-0150-00 - Brake Cable Adapter Bracket2015 Outlaws/XP
$18.72
32 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch-ZT
$2.99
34 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
35 069-1000-00 069-1000-00 - Brake Handle Cam Over
$7.28
36 069-7000-00 069-7000-00 - Rubber Brake Grip
$6.41
37 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
38 013-0009-00 013-0009-00 - 3/8-16 Hex Flange Top L/N
$2.99
39 031-2045-00 031-2045-00 - 2016-2018 Outlaw Tank Support (Left)
$58.84
40 031-2040-00 031-2040-00 - 2015-2018 Outlaw Tank Support (Right)
$58.84
41 014-2000-00 014-2000-00 - Black Plug - 5/8" Head
$2.99
42 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
43 018-1010-00 018-1010-00 - 3/8-16x3-1/2 Grade 5 Hex Bolt
$2.99
44 025-0001-00 025-0001-00 - 2015-2022 Brake Lever Spacer
$8.01
45 018-4706-00 018-4706-00 - 3/8 x 1 1/2 Carriage Bolt
$2.99
46 034-8045-00 034-8045-00 - Seat Spring
$20.49
47 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
49 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
50 014-8047-00 014-8047-00 - Rubber Cap Cover
$8.93
51 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
52 028-0085-00 028-0085-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$26.70
53 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
54 071-5055-00 071-5055-00 - 2016-2018 Compact Outlaw Seat
$534.99
55A 055-8017-00 055-8017-00 - Throttle Cable - For Outlaws With FX850 Kawasaki Engines and All Pup/Lightning/AOS Gas Models without 32hp Briggs
$45.29
55 055-8021-75 055-8021-75 - 52" Outlaw Throttle Cable ONLY (Excludes Outlaws w/ FX850 Kawasaki Engines), Also Fits 2019-2022 Rebel, Renegade, Rogue, and Revolt (27hp Kawasaki, Yamaha, and Kohler, 29.5 EFI Kawasaki, 33hp EFI Kohler and Yamaha, 37hp EFI Vanguard)
$28.88
56 071-5056-00 071-5056-00 - Left Armrest w/Pad-071-5055-00
$70.97
57 071-5057-00 071-5057-00 - Righ Armrest w/Pad-071-5055-00
$70.97
58 071-2020-50 071-2020-50 - Seat Rails-Wise Seats (obsolete)
use part #071-2012-00
$70.92
59 071-5063-00 071-5063-00 - Seat Cover for 071-5060-00 for the 2016 - 2018 Outlaw, Outlaw/XP, 2019-2021 Rebel
$129.13
60 071-5064-00 071-5064-00 - Back Cover for 071-5060-00 Used on 2016- 2018 Outlaw, Outlaw/XP, 2019 - 2021 Rebel
$171.72
61 071-5062-00 071-5062-00 - Pair of Arm Pads for the071-5060-00 2015 Outlaw Seat
$79.58
62 071-5061-00 071-5061-00 - Pair of Armrest for the 071-5060-00 2016 - 2018 Outlaw, Outlaw/XP, 2019-2021 Rebel
$124.87
63 071-5015-00 071-5015-00 - Seat Rails (See Models Used On for Details)
$93.69
64 071-8061-00 071-8061-00 - Seat Switch (See Models Used On For Detail)
$19.14
65 054-8016-00 054-8016-00 - 47" Choke Cable For AOS, Pup, Lightning, 2016-2018 Outlaw/Outlaw Extreme Units with Kawasaki FX730 & FX850 Engines and 2013-2016 MZ Units With Kawasaki Engines. (Will Not Work On Units With 30hp Engines)
$28.88
66 071-5058-00 071-5058-00 - Back Cover for 071-5055-00
$160.49
