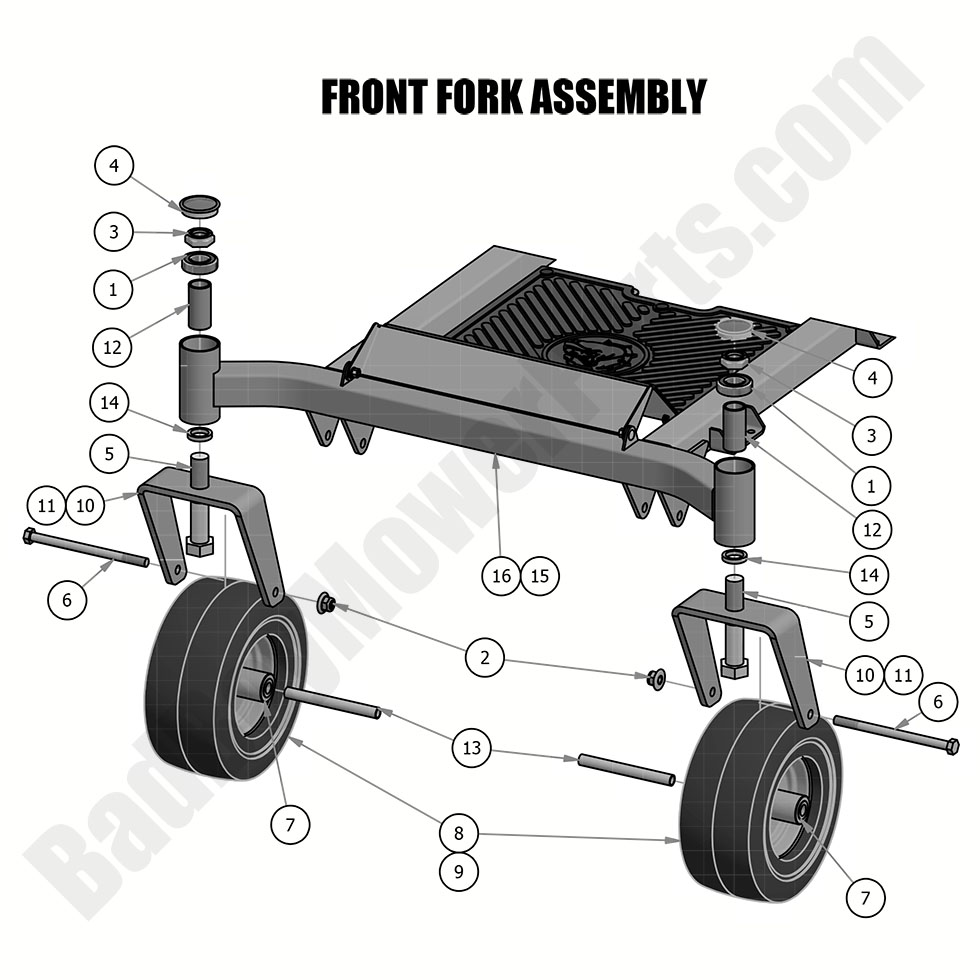

2019 MZ & MZ Magnum Front Fork Assembly

Front Fork Assembly

Find the parts for your 2019 MZ & MZ Magnum Front Fork Assembly at BadBoyMowerParts.com. We have all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

2019 MZ & MZ Magnum Front Fork Assembly
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine
$3.62
4 014-2025-00 014-2025-00 - 2017-2022 Caster Bearing Cover (See Models Used On For Details)
$2.99
5 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 ZC YELLOW
$6.48
6 018-0035-00 018-0035-00 - 1/2-13 x 7 1/2 Grade 5 Hex Bolt
$4.83
7 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
8 022-8049-00 022-8049-00 - 11x6.00-5 Front Assembly (One Tire and Rim Assy)
$99.39
9 022-8051-00 022-8051-00 - 11 x 4.00 - 5 Front Tire and Wheel Assembly, 2010 MZ and 2019-2021 42" MZ
$76.60
10 023-0002-00 023-0002-00 - 2017-2022 Walkbehind & MZ Front Fork
$31.23
11 023-0005-00 023-0005-00 - MZ 8mm Front Fork 42" only
$42.58
12 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
13 025-0008-00 025-0008-00 - Front Wheel Spanner - MZ
$15.60
14 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
15 070-5420-00 070-5420-00 - 2017-2021 MZ/ZT Frame For 54" & 60" Deck Units
$1283.99
16 070-5810-00 070-5810-00 - 2017-2021 ZT/MZ/MZ Magnum Frame For 42" & 48" Deck Units
$1283.99
