The 2019 MZ & MZ Magnum Seat Detail for Kawasaki Units provides enhanced comfort and stability for Kawasaki-powered mowers. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower Parts, including seat cushions, brackets, shock absorbers, and securing hardware to enhance operator experience. Our Bad Boy Lawn Mower Parts inventory ensures factory-grade replacements for long-term durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the correct seat detail components for Kawasaki-powered units. Regular maintenance prevents seat wear, improves operator posture, and enhances ride comfort. We stock Bad Boy Parts Online for fast replacements and easy ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 MZ & MZ Magnum Seat Detail for Kawasaki Units is now more affordable. Order today for superior comfort and a smoother mowing experience.

|

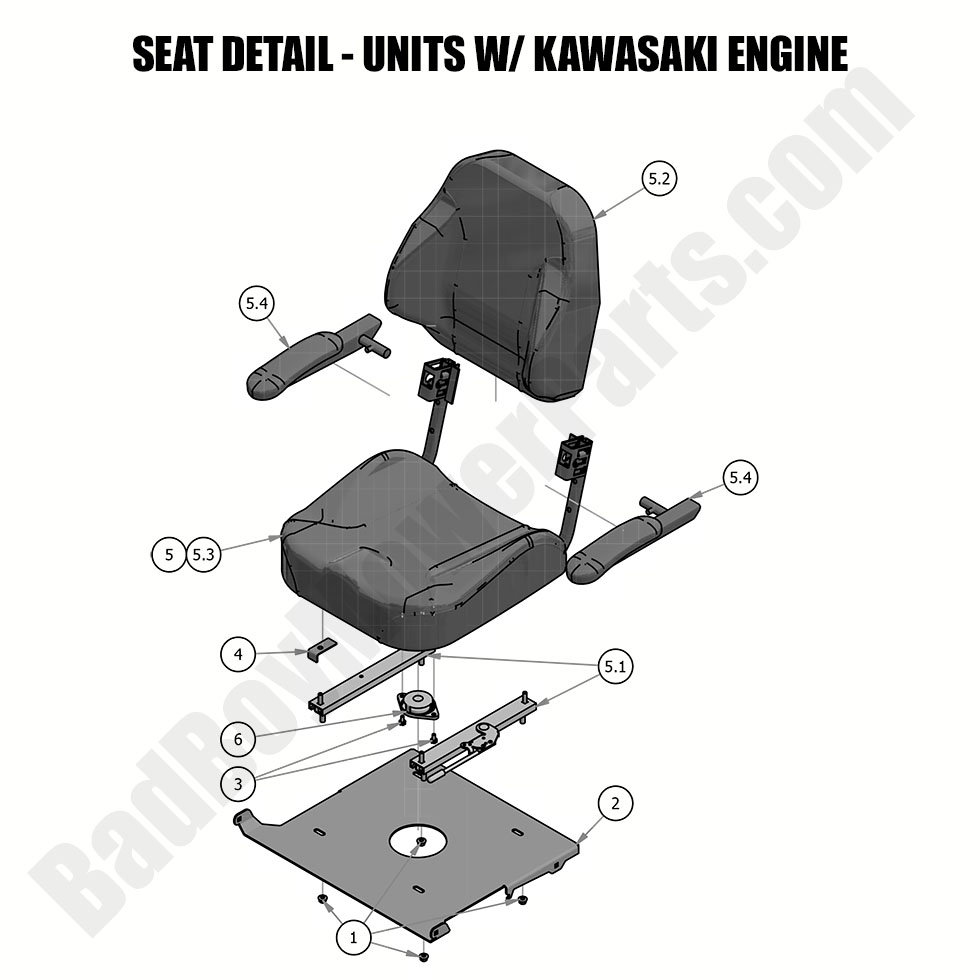

| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 1 | 013-8049-00 | 013-8049-00 - 5/16-18 Nylon Flange Nut |
$2.99
|
||
| 2 | 026-1016-00 | 026-1016-00 - Seat Plate |
$112.99
|
||
| 3 | 030-7041-00 | 030-7041-00 - 1/4-20x1/2 HWH Bolt Slot Type |
$2.99
|
||
| 5.0 | 071-2040-17 | 071-2040-17 - Seat for 2017-2018 ZT & 2019-2021 MZ & MZ Magnum For 48" & 54" Units w/ Kawasaki Engines |
$559.99
|
||
| 5.1 | 071-5015-00 | 071-5015-00 - Seat Rails |
$93.69
|
||
| 5.2 | 071-2050-00 | 071-2050-00 - 2017-2021 MZ & MZ Magnum Back Cover For 071-2040-17 |
$193.99
|
||
| 5.3 | 071-2051-00 | 071-2051-00 - Seat Cushion Cover For 071-2040-17 |
$193.99
|
||
| 5.4 | 071-2054-00 |
071-2054-00 - Arm Rest Kit (See Models Used On For Details) (obsolete) use part #071-2119-00 |
$139.99
|
||
| 6 | 071-8061-00 | 071-8061-00 - Seat Switch (See Models Used On For Detail) |
$19.14
|
