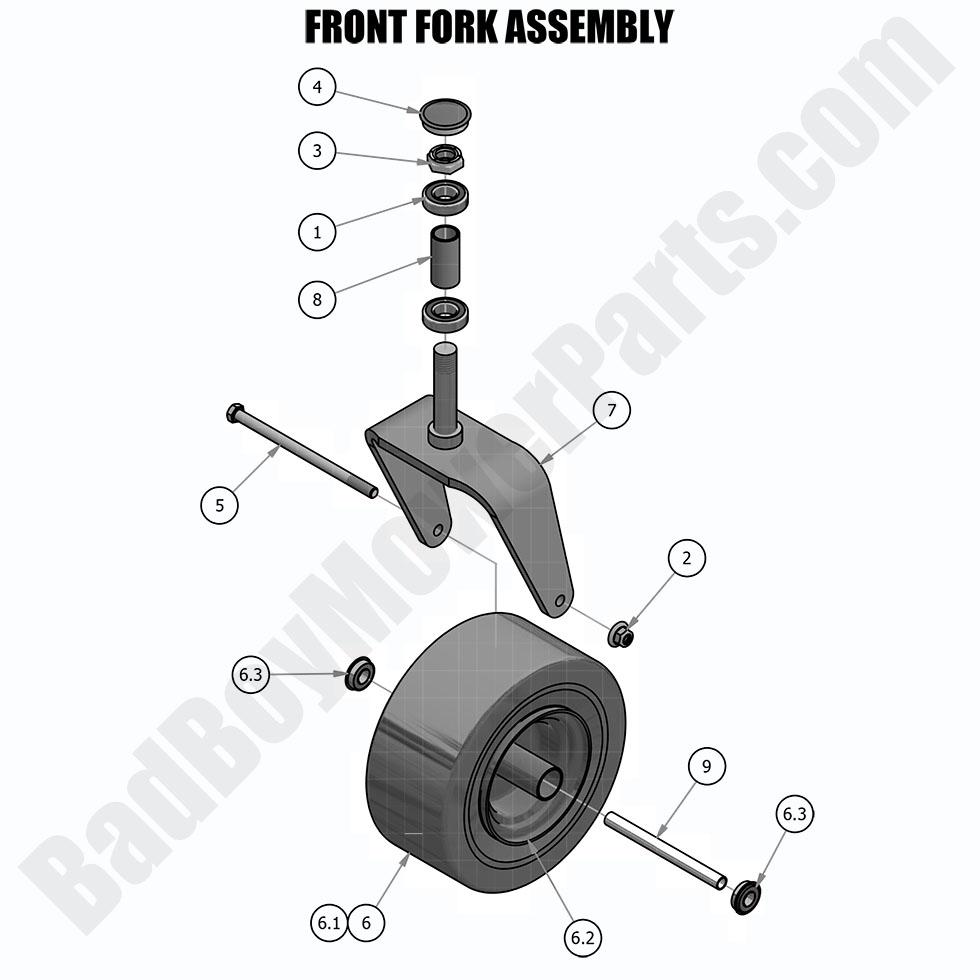

The 2019 Maverick Front Fork Assembly is crucial for stability and precise control, ensuring smooth operation over uneven terrain. At BadBoyMowerParts.com, we provide top-quality Bad Boy Mower Parts, including front fork assemblies, caster wheels, bushings, and securing hardware to maintain superior handling. Our Bad Boy Lawn Mower Parts inventory offers factory-grade replacements for long-term durability. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary front fork components for fast installation. Regular maintenance ensures optimal maneuverability, reduces vibration, and extends component lifespan. We offer Bad Boy Parts Online for quick replacements and hassle-free ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Maverick Front Fork Assembly is now more affordable. Order today for smoother steering and a more comfortable mowing experience.

|
| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 1 | 010-1050-00 | 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details) |
$18.39
|
||
| 2 | 013-8050-00 | 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon |
$2.99
|
||
| 3 | 013-9004-00 | 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread |
$3.62
|
||
| 4 | 014-2025-00 | 014-2025-00 - Caster Bearing Cover (See Models Used On For Details) |
$2.99
|
||
| 5 | 018-7010-00 | 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc |
$5.82
|
||
| 6.0 | 022-2017-00 | 022-2017-00 - 13 x 6.50 - 6 Black Tire and Wheel Assembly |
$94.15
|
||
| 6.1 | 022-5347-00 | 022-5347-00 - 13 x 6.50 - 6 Tire |
$96.29
|
||
| 6.2 | 022-7007-00 | 022-7007-00 - 6 x 4.5 Black Wheel Small Bore (See Models Used On For Details) |
$56.81
|
||
| 6.3 | 022-7009-00 | 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier |
$13.36
|
||
| 7 | 023-7913-00 | 023-7913-00 - Front Fork-Non Suspension |
$139.99
|
||
| 8 | 025-0003-00 | 025-0003-00 - Front Bearing Spacer |
$14.04
|
||
| 9 | 025-5202-00 | 025-5202-00 - Front Wheel Spanner-All Models Except MZ |
$10.44
|
