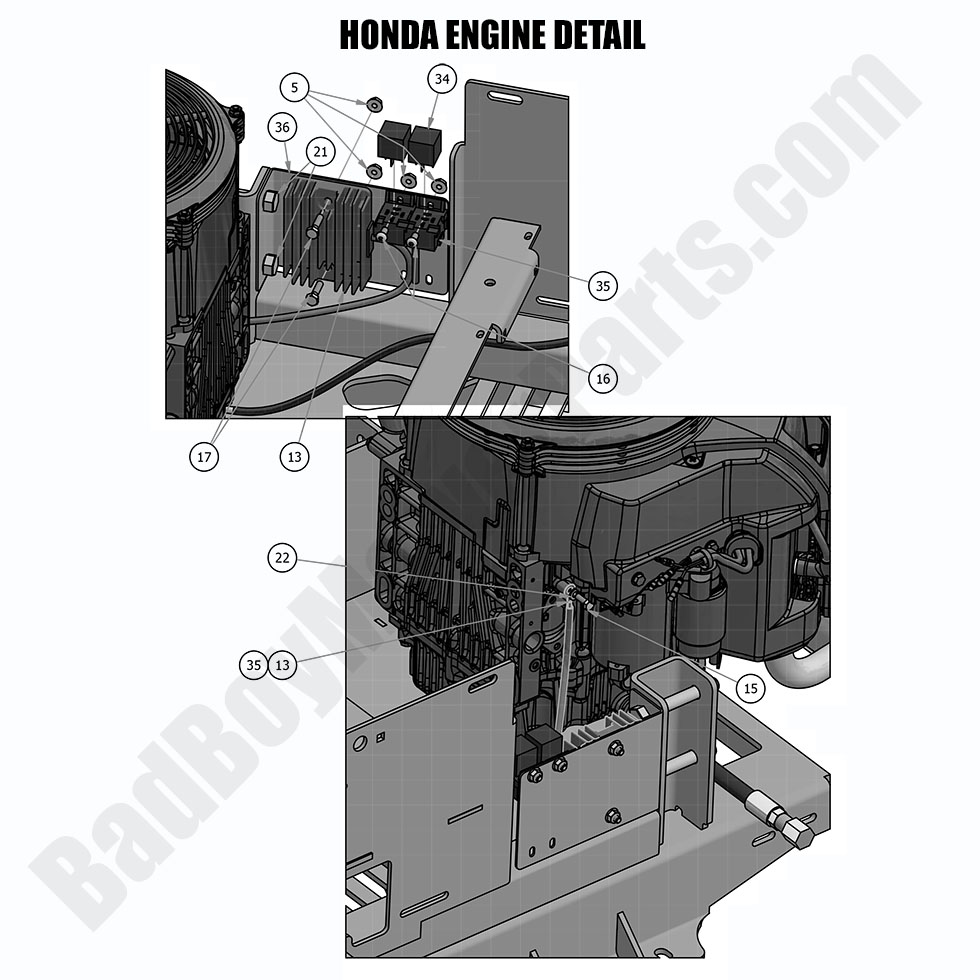

The 2019 Maverick Honda Engine Detail system highlights the power and efficiency of the Honda GXV630 engine. At BadBoyMowerParts.com, we provide top-quality Bad Boy Mower Parts, including fuel filters, air intake components, cooling systems, and ignition parts for superior engine performance. Our Bad Boy Lawn Mower Parts inventory offers factory-grade replacements designed for durability and efficiency. Using our Bad Boy Mower Part diagrams, you can quickly locate and order the necessary Honda engine components for easy installation. Proper maintenance ensures smooth operation, prevents overheating, and extends engine life. We offer Bad Boy Parts Online for fast replacements and convenient ordering. Plus, with Free Shipping On Orders Over $100, maintaining your 2019 Maverick Honda Engine Detail system is now more affordable. Order today for reliable engine performance and extended mower lifespan.

|
| Position Number | SKU | Product Title | Price | ||
|---|---|---|---|---|---|
| 5 | 013-9001-00 | 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations |
$2.99
|
||
| 13 | 015-0091-06 | 015-0091-06 - Regulator Rectifier for Honda (015-0091-00) |
$242.99
|
||
| 15 | 018-0024-00 | 018-0024-00 - M6-1.0 X 16MM HEX BOLT |
$2.99
|
||
| 16 | 018-2012-00 | 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS |
$2.99
|
||
| 17 | 018-4007-00 | 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc |
$2.99
|
||
| 21 | 018-6054-00 | 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts |
$2.99
|
||
| 22 | 019-4008-00 | 019-4008-00 - 1/4 Lockwasher Zinc |
$2.99
|
||
| 34 | 086-1201-00 | 086-1201-00 - Relay Terminal (See Models Used On For Details) |
$24.97
|
||
| 35 | 086-9012-00 | 086-9012-00 - 2019 Harness Adaptor- Honda Engine |
$32.09
|
||
| 36 | 201-0020-00 | 201-0020-00 - Honda Rectifier Mount |
$10.99
|
