2020 Rogue Control Panel Detail

Control Panel Detail

Find the parts for your 2020 Rogue at BadBoyMowerParts.com. We have the Control Panel Detail parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

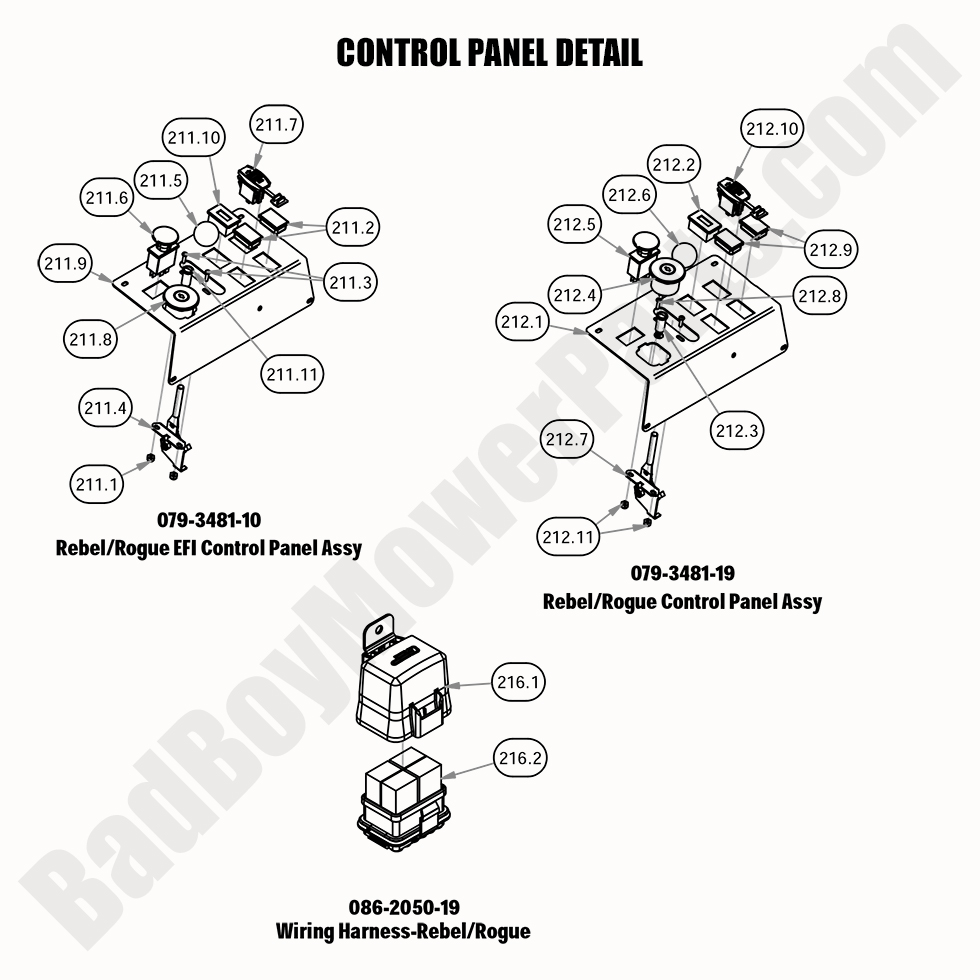

2020 Rogue Control Panel Detail
  Position Number SKU Product Title Price
211.0 079-3481-10 079-3481-10 - Rogue/Rebel EFI Control Panel Assy
$116.63
211.1 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
211.2 018-1040-00 018-1040-00 - Light Plug
$2.99
211.3 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
211.4 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
211.5 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
211.6 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
211.7 077-2076-00 077-2076-00 - USB Port
$46.84
211.8 077-8076-00 077-8076-00 - Ignition Switch (key not included)
$21.39
211.9 079-3481-00 079-3481-00 - Control Panel
$10.99
211.10 083-4050-00 083-4050-00 - Tachometer For Briggs EFI/Kohler EFI/Yamaha EFI Units
$80.24
211.11 089-1000-00 089-1000-00 - Oil Light
$12.63
212.0 079-3481-19 079-3481-19 - Rebel/Rogue Control Panel Assy
$116.63
212.2 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
216.0 086-2050-19 086-2050-19 - Harness-No Display 2019-2024 Rebel & Rogue
$388.88
216.1 086-1202-01 086-1202-01 - 2019-2023 Relay Cap Kit
$18.45
216.2 086-1202-19 086-1202-19 - Relay Terminal (See Models Used On For Details)
$24.97
