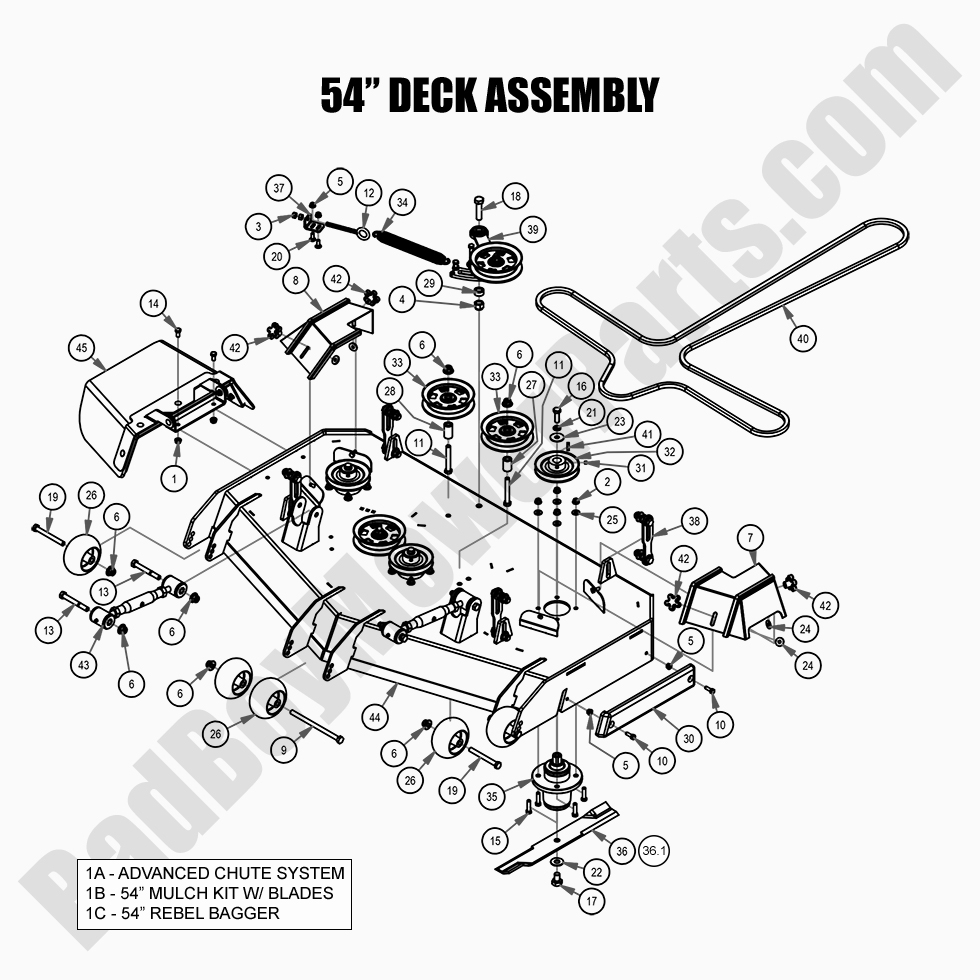

2021 Rebel 54" Deck Assembly

54" Deck Assembly

Find the parts for your 2021 at BadBoyMowerParts.com. We have the 54" Deck Assembly parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

2021 Rebel 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-5419-00 088-5419-00 - Advanced Chute System for 2019-2024 54" Outlaws
$266.99
1B 210-0354-00 210-0354-00 - 2019-2024 54" Mulch Kit w/Blades (Not for MZ or Avenger)
$340.74
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
4 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 014-5050-00 014-5050-00 - 54" Deck Left Pulley Cover 2019-2022 Rebel & Rogue
$17.86
8 014-5051-00 014-5051-00 - 54" Deck Right Pulley Cover 2019-2022 Rebel & Rogue
$17.86
9 018-0046-00 018-0046-00 - 1/2-13 x 8" Grade 5 Hex Bolt
$4.06
10 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
11 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
12 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
13 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt Yello
$4.39
14 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
15 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
16 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
17 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
18 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 GR 5 Hex Bolts
$2.99
19 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 GR 5 Hex Bolts
$2.99
20 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
21 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
22 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
25 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
26 022-1001-00 022-1001-00 - 2019-2024 Outlaw Series (Rebel, Renegade, Rogue) Deck Wheel
$17.11
27 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
28 025-5339-00 025-5339-00 -.502 ID X 1.00 OD X 1.750 Leng th Spacer Zinc
$5.36
29 025-7020-00 025-7020-00 - 5/8 Set Collar W/One Set Screw
$4.37
30 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
31 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
32 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
33 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley-Capitol Stampings
$35.48
34 034-2030-00 034-2030-00 -2019-2024 Deck Spring (See Models Used On)
$31.22
35 037-4000-00 037-4000-00 - All Diesel/Outlaw Models (Will Not Work on Compact Outlaw), 2017 Stand-On (Will Not Work on 36" Stand-On), 2022 Maverick HD Spindle Assembly
$312.34
36.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
36 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
37 039-0144-00 039-0144-00 - Deck Eye Bolt Tab 2019-2022 Rebel, Renegade & Rogue
$14.19
38 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
39 039-6946-18 039-6946-18 - Deck Idler 2019-2022 Rebel & Rogue
$78.08
40 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
41 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
42 045-6043-00 045-6043-00 - 5/16 Black Plastic Knob Spindle Cover
$4.39
43 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
44 060-5551-19 060-5551-19 - 2019 54" Sloped Deck Weldment
$1176.99
45 210-7000-98 210-7000-98 - Chute Assembly 2019-2022 Rebel, Revolt, Renegade & Rogue
$170.37
