2021 Walk Behind 48" Deck Assembly

48" Deck Assembly

Find the parts for your 2021 Walk Behind at BadBoyMowerParts.com. We have the 48" Deck Assembly parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

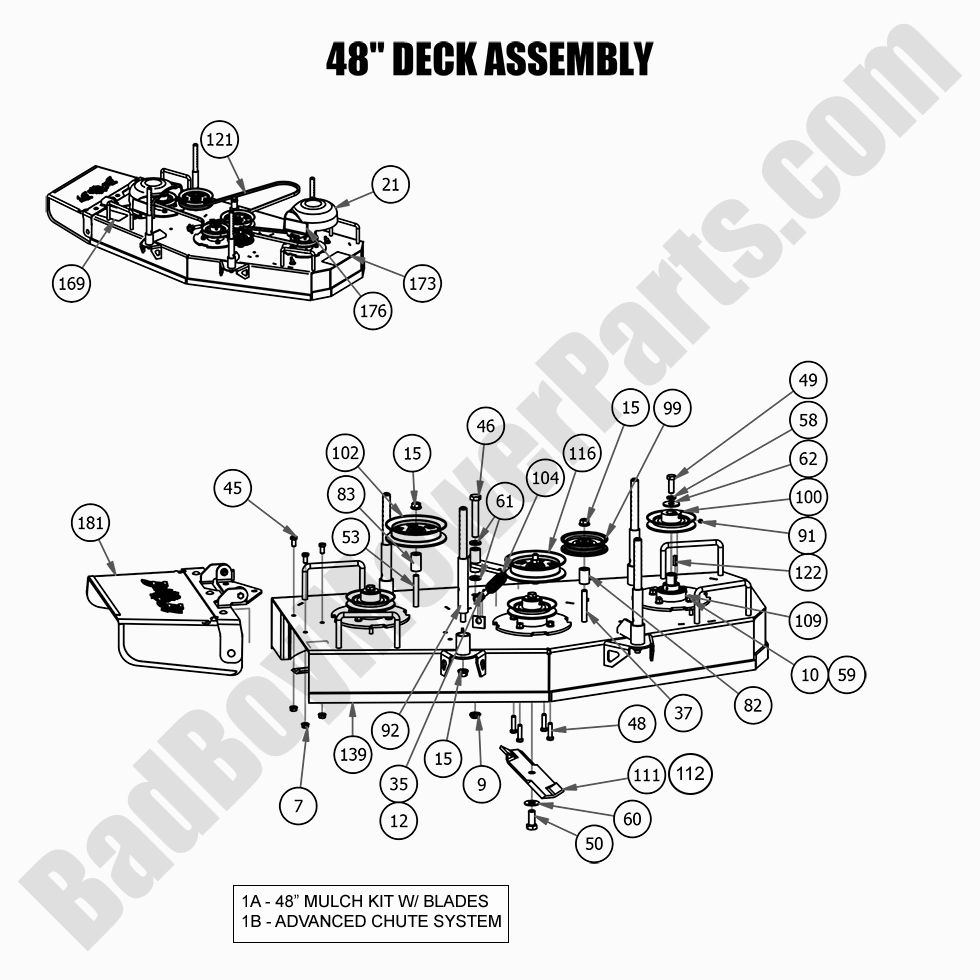

2021 Walk Behind 48" Deck Assembly
  Position Number SKU Product Title Price

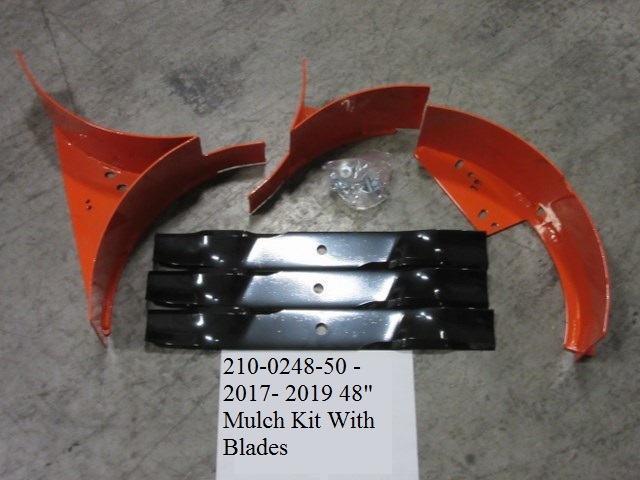

1A 210-0248-50 210-0248-50 - 2017- 2024 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$340.74
1B 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$266.43
7 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
9 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
10 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
12 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
15 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99

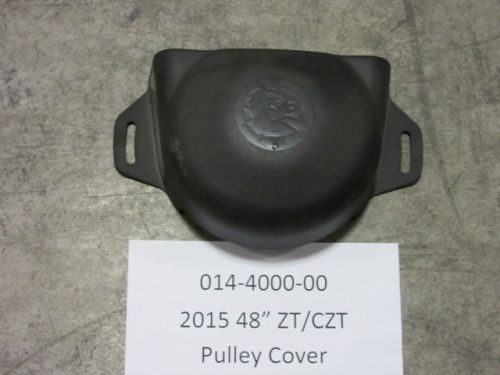

21 014-4000-00 014-4000-00 - Pulley Cover (See Models Used On For Details)
$28.39
35 018-2004-50 018-2004-50 -2017-2022 All Thread (See Models Used On)
$12.94
37 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
45 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
46 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
48 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S (GR 5) ZC
$3.29
49 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
50 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
53 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 GR 5 Hex Bolts
$2.99
58 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
59 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
60 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
61 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
62 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
82 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500 Leng th Spacer Zinc
$3.62
83 025-5339-00 025-5339-00 -.502 ID X 1.00 OD X 1.750 Leng th Spacer Zinc
$5.36
91 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
99 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
100 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
102 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley-Capitol Stampings
$35.48
104 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
109 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$213.99
111 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
112 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
116 039-6945-17 039-6945-17 - Deck Idler Assembly 2018-2022 ZT, Maverick & Walk Behind
$70.97

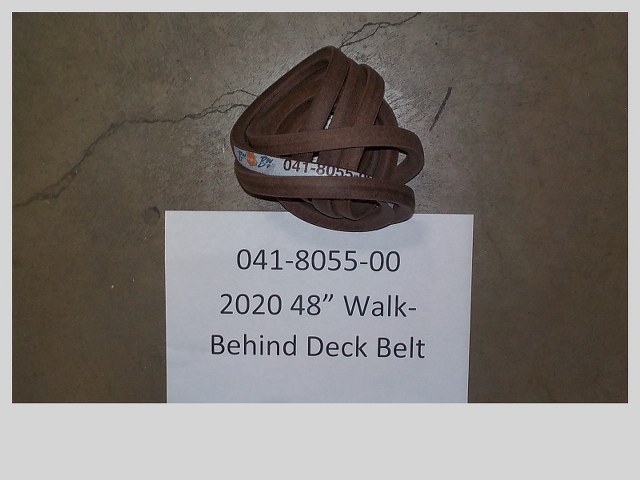

121 041-8055-00 041-8055-00 - 48" Walk Behind Deck Belt
$85.59
122 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81

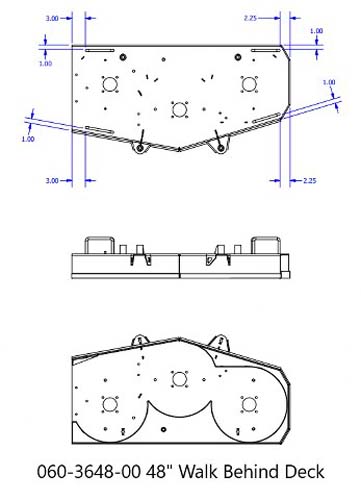

139 060-3648-00 060-3648-00 - 2020 48" Walkbehind Deck Assembly-Painte No Longer Available
Obsolete.

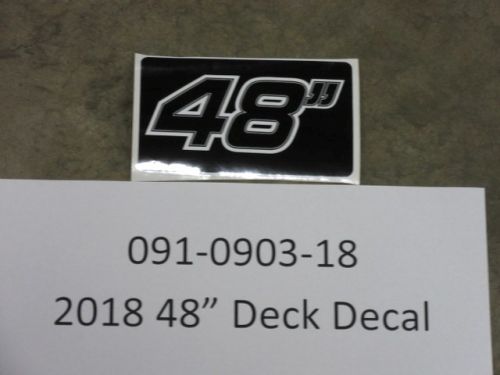

173 091-0903-18 091-0903-18 - 48" Deck Decal (See Models Used On For Details)
$8.01
176 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
181 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$181.89
