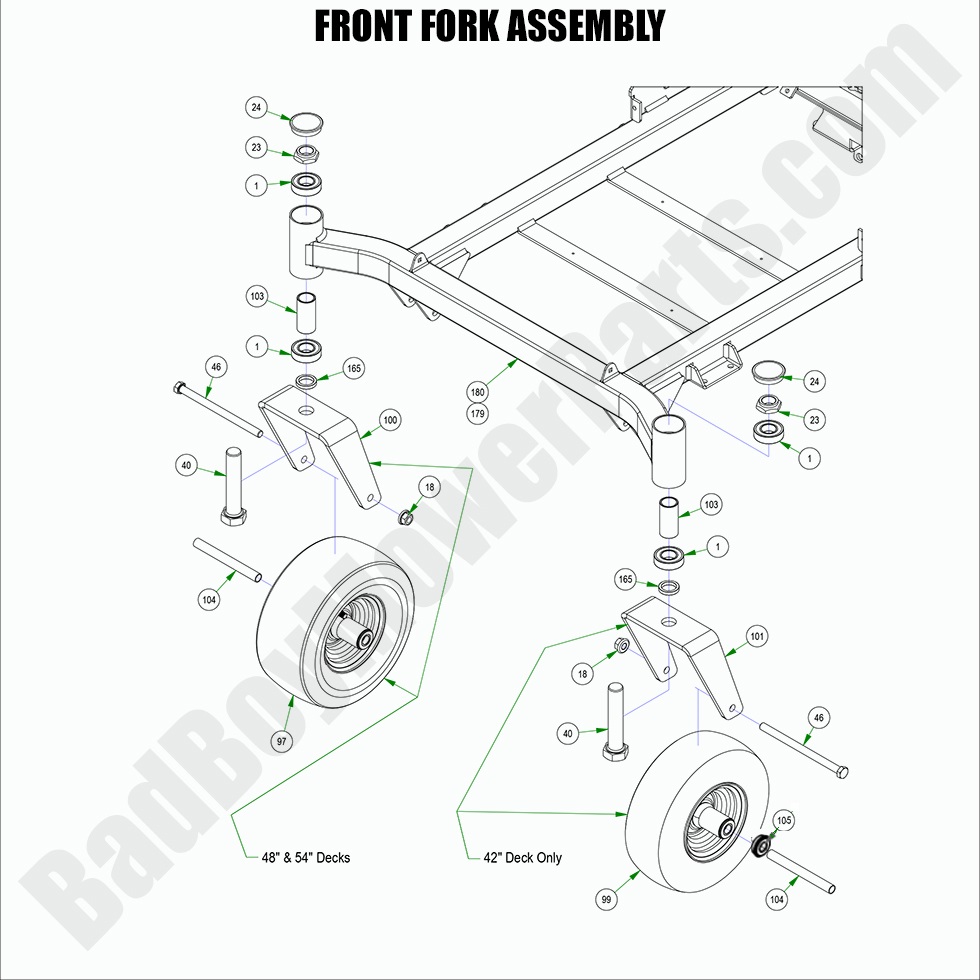

2022 MZ & MZ Magnum Front Fork Assembly

Front Fork Assembly

Find the parts for your 2022 MZ Rambler and MZ Magnum at BadBoyMowerParts.com. We have the MZ front fork assembly parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

2022 MZ & MZ Magnum Front Fork Assembly
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
18 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
23 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine
$3.62
24 014-2025-00 014-2025-00 - 2017-2022 Caster Bearing Cover (See Models Used On For Details)
$2.99
40 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 ZC YELLOW
$6.48
46 018-0035-00 018-0035-00 - 1/2-13 x 7 1/2 Grade 5 Hex Bolt
$4.83
97 022-8049-22 022-8049-22 - 11x6.00-5 Front Assembly - Black Wheel
$99.39
99 022-8051-22 022-8051-22 - 11 x 4.00 - 5 Front Tire Assembly( Black)
$57.67
100 023-0002-00 023-0002-00 - 2017-2022 Walkbehind & MZ Front Fork
$31.23
101 023-0005-00 023-0005-00 - MZ 8mm Front Fork 42" only
$42.58
103 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
104 025-0008-00 025-0008-00 - Front Wheel Spanner - MZ
$15.60
165 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
