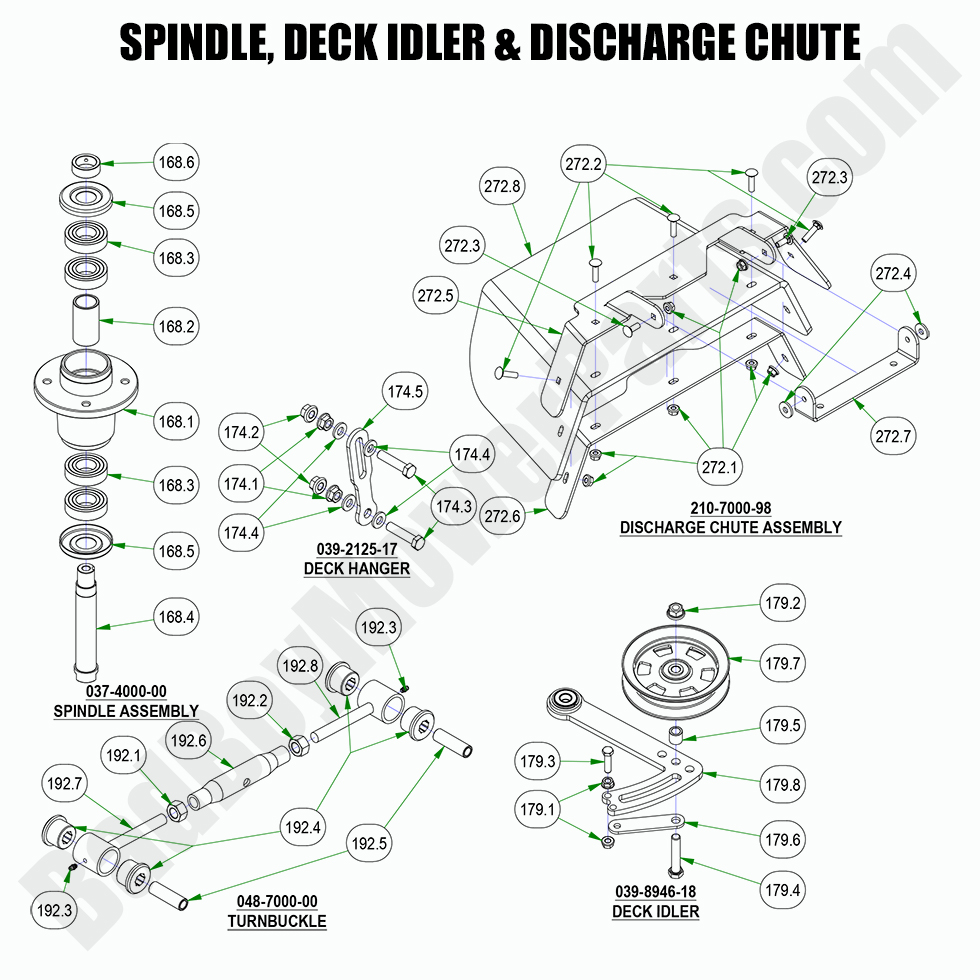

2022 Rebel Spindle, Idler & Discharge Chute

Spindle, Idler & Discharge Chute

Find the parts for your 2022 at BadBoyMowerParts.com. We have the Spindle, Idler & Discharge Chute parts and all the Bad Boy Mower parts you nee.

Bad Boy Mower Parts Lookup

2022 Rebel Spindle, Idler & Discharge Chute
  Position Number SKU Product Title Price
1A 037-4000-00 037-4000-00 - All Diesel/Outlaw Models (Will Not Work on Compact Outlaw), 2017 Stand-On (Will Not Work on 36" Stand-On), 2022 Maverick HD Spindle Assembly
$312.34

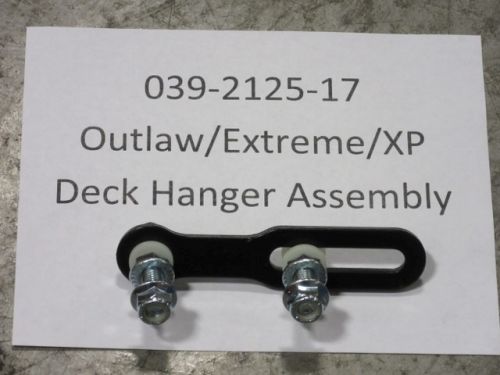

1B 039-2125-17 039-2125-17 - Deck Hanger Assembly (See Models Used On For Details)
$15.60
1C 210-7000-98 210-7000-98 - Chute Assembly 2019-2022 Rebel, Revolt, Renegade & Rogue
$170.37
1D 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24

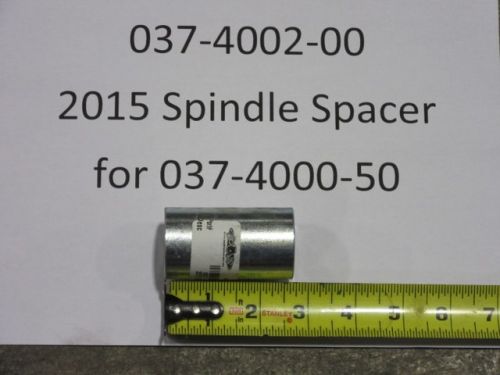

168.2 037-4002-00 037-4002-00 - Spindle Spacer (Used on 037-4000-00 & 037-4000-50)
$7.28
168.3 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
168.4 037-6026-00 037-6026-00 - Short Spindle Shaft w/Locking Collar - No Grooved Shaft
$83.77
168.5 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
168.6 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
174.1 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
174.2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99

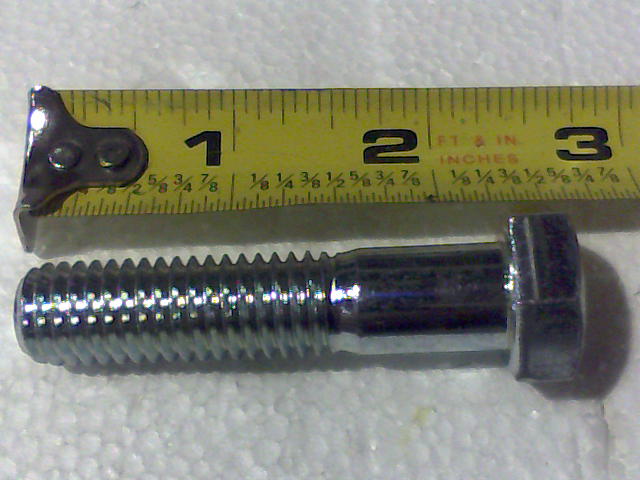

174.3 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 GR 5 Hex Bolts
$2.99
174.4 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
174.5 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
179.1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
179.3 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
179.4 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 GR 5 Bolt Zinc
$2.99
179.5 025-5203-00 025-5203-00 - Spacer 3/4ODx1/2IDx0.75 Susp f ork
$3.29
179.6 026-0167-00 026-0167-00 - Belt Tensioner Retainer Plate 2019-2022 Rebel, Renegade & Rogue
$26.74
179.7 033-8050-00 033-8050-00 - 2017-2024 5" Split Idler Pulley-Tensioner Only
$35.48
179.8 039-6946-00 039-6946-00 - Deck Tensioner 2019-2022 Rebel, Renegade & Rogue
$35.48

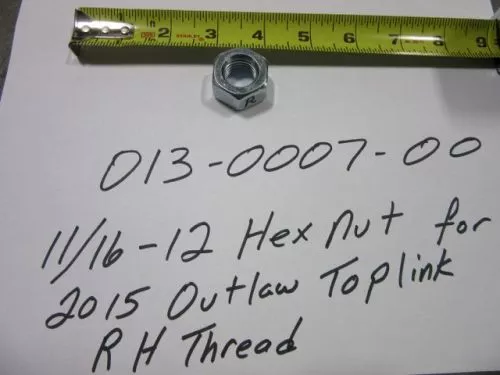

192.1 013-0007-00 013-0007-00 - 11/16-12 Hex Nut Toplink
$2.99

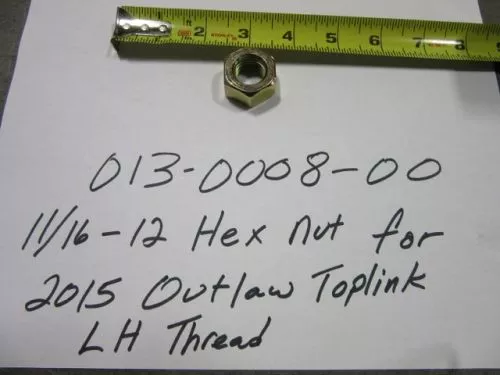

192.2 013-0008-00 013-0008-00 - 11/16-12 Lefthand Hex Nut-Topl ink
$2.99
192.3 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99

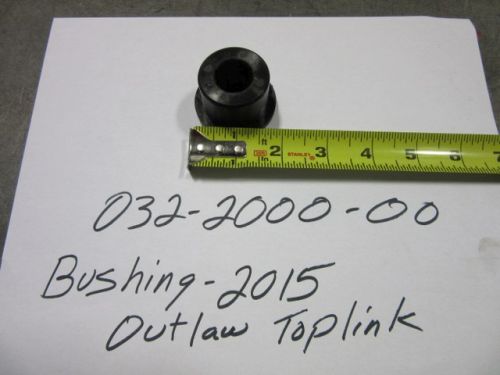

192.4 032-2000-00 032-2000-00 - Toplink Bushing (See Models Used On For Detail)
$4.37

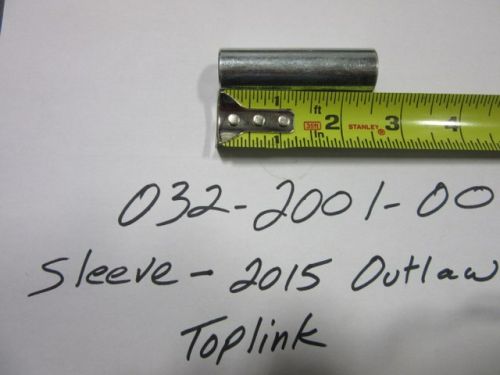

192.5 032-2001-00 032-2001-00 - Toplink Sleeve (See Models Used On For Detail)
$4.37

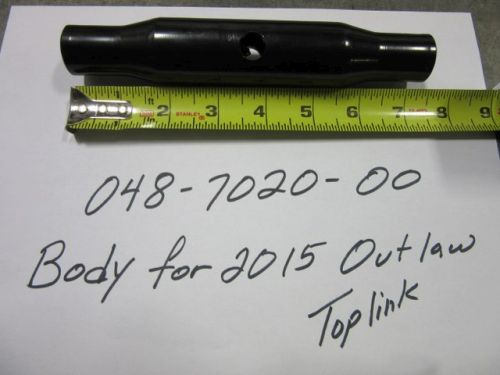

192.6 048-7020-00 048-7020-00 - Outlaw Toplink Body (See Models Used On For Details)
$28.32

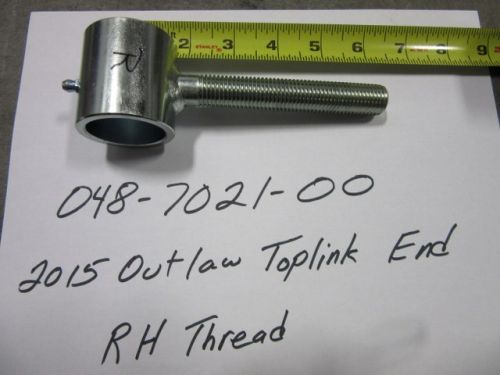

192.7 048-7021-00 048-7021-00 - Outlaw Toplink RH End (See Models Used On For Details) (obsolete)
use part #048-7000-00
$80.24

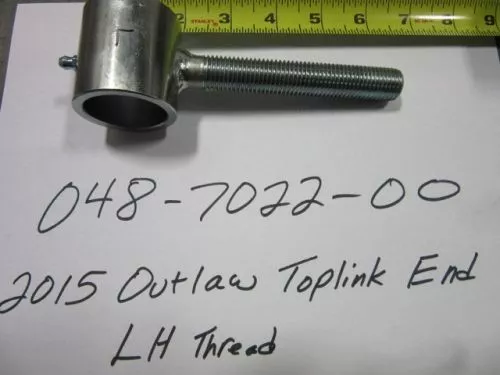

192.8 048-7022-00 048-7022-00 - Outlaw Toplink LH End (See Models Used On For Details) (obsolete)
use part #048-7000-00
$80.24
272.1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
272.2 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
272.3 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
272.4 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99

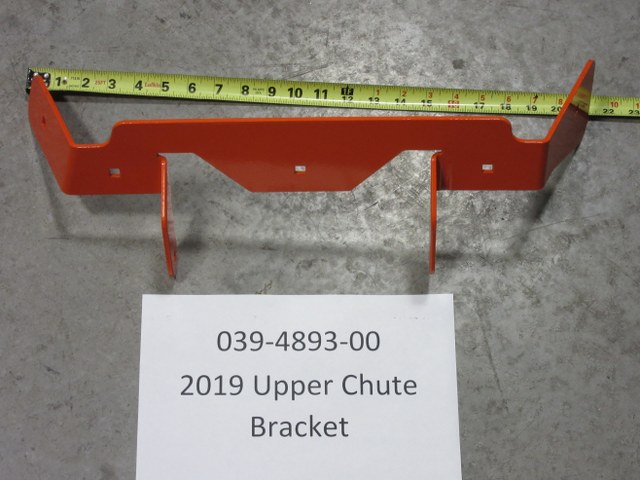

272.5 039-4893-00 039-4893-00 - Upper Chute Bracket (See Models Used On For Details)
$46.84

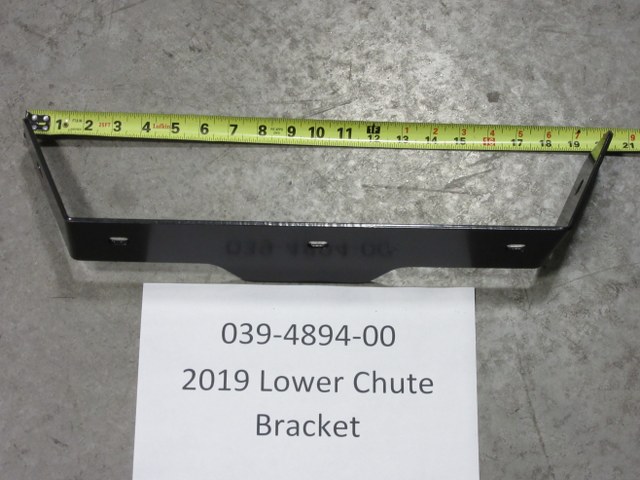

272.6 039-4894-00 039-4894-00 - Lower Chute Bracket (See Models Used On For Details)
$43.72
272.7 206-6018-00 206-6018-00 - Chute Hanger 2019-2022 Rebel, Revolt, Renegade & Rogue
$9.67
272.8 210-6025-00 210-6025-00 - Belted Chute with Logo 2019-2022 Rebel, Revolt, Renegade & Rogue
$62.40
