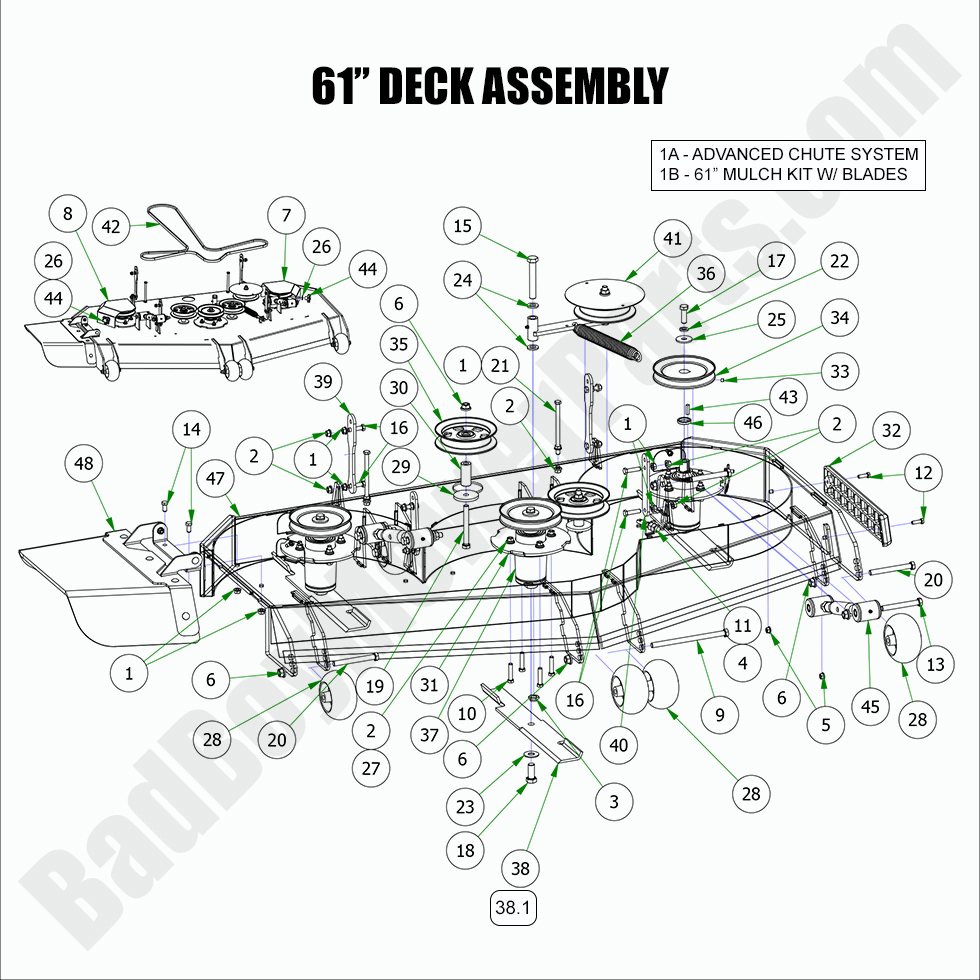

2022 Revolt 61" Deck Assembly

61" Deck Assembly

Find the parts for your 2022 Revolt at BadBoyMowerParts.com. We have the 61" Deck Assembly parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

2022 Revolt 61" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6048-00 088-6048-00 - Advanced Chute System for Revolt with 48", 54", and 61" Decks
$266.99
1B 210-0361-00 210-0361-00 - Rebel/Rogue/Renegade 61" Mulch Kit w/Blades
$340.74
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknu t Zinc
$2.99
4 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 014-4811-00 014-4811-00 - Trim Side Pulley Cover (See Models Used On For Details)
$16.04
8 014-4812-00 014-4812-00 - 54" Discharge Side Pulley Cover (See Models Used On For Detail)
$26.74
9 018-0046-00 018-0046-00 - 1/2-13 x 8" Grade 5 Hex Bolt
$4.06
10 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S (GR 5) ZC
$3.29
11 018-2004-50 018-2004-50 -2017-2022 All Thread (See Models Used On)
$12.94
12 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
13 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt Yello
$4.39
14 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
15 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
16 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
17 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
18 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
19 018-7049-00 018-7049-00 - 1/2 -13 x 4.25 gr. 5 hex bolt
$2.99
20 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 GR 5 Hex Bolts
$2.99
21 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt - Grade 5
$2.99
22 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
23 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
24 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
25 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
26 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
27 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
28 022-1001-00 022-1001-00 - 2019-2024 Outlaw Series (Rebel, Renegade, Rogue) Deck Wheel
$17.11
29 025-0025-00 025-0025-00 -2019-2022 Round Spacer (See Models Used On For Details)
$7.28
30 025-0032-00 025-0032-00 - 2019-2022 Revolt Stationary Idler Spacer
$8.46
31 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
32 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
33 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
34 033-6004-00 033-6004-00 - 6 1/4 Spindle Deck Pulley 60 & 61 Decks DDB-100 (without set screw)
$35.48
35 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley-Capitol Stampings
$35.48
36 034-2030-00 034-2030-00 -2019-2024 Deck Spring (See Models Used On)
$31.22
37 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$213.99
38.1 038-6081-00 038-6081-00 - 61" Gator Blade for Outlaw
$22.99
38 038-6080-00 038-6080-00 - 61" High Lift Fusion Blade
$22.99
39 039-2128-00 039-2128-00 - 2019-2022 Stand On Deck Hanger Rear
$14.19
40 039-2129-00 039-2129-00 - Stand On Deck Hanger Front (See Models Used On For Detail)
$16.04
41 039-6945-20 039-6945-20 - Idler Assembly (61" Deck)
$58.84
42 041-4022-00 041-4022-00 - B138 Deck Belt (See Models Used On For More Details, Not For 54" CZT/Stand-On)
$78.01
43 042-6030-00 042-6030-00 - 1/4 x 1 Square Key
$4.81
44 045-6043-00 045-6043-00 - 5/16 Black Plastic Knob Spindle Cover
$4.39
45 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
46 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
48 210-7000-98 210-7000-98 - Chute Assembly 2019-2022 Rebel, Revolt, Renegade & Rogue
$170.37
