2023 Renegade - Diesel Floorboard & Radiator - Detail

Floorboard & Radiator - Detail

Find the parts for your 2023 at BadBoyMowerParts.com. We have the Floorboard & Radiator parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

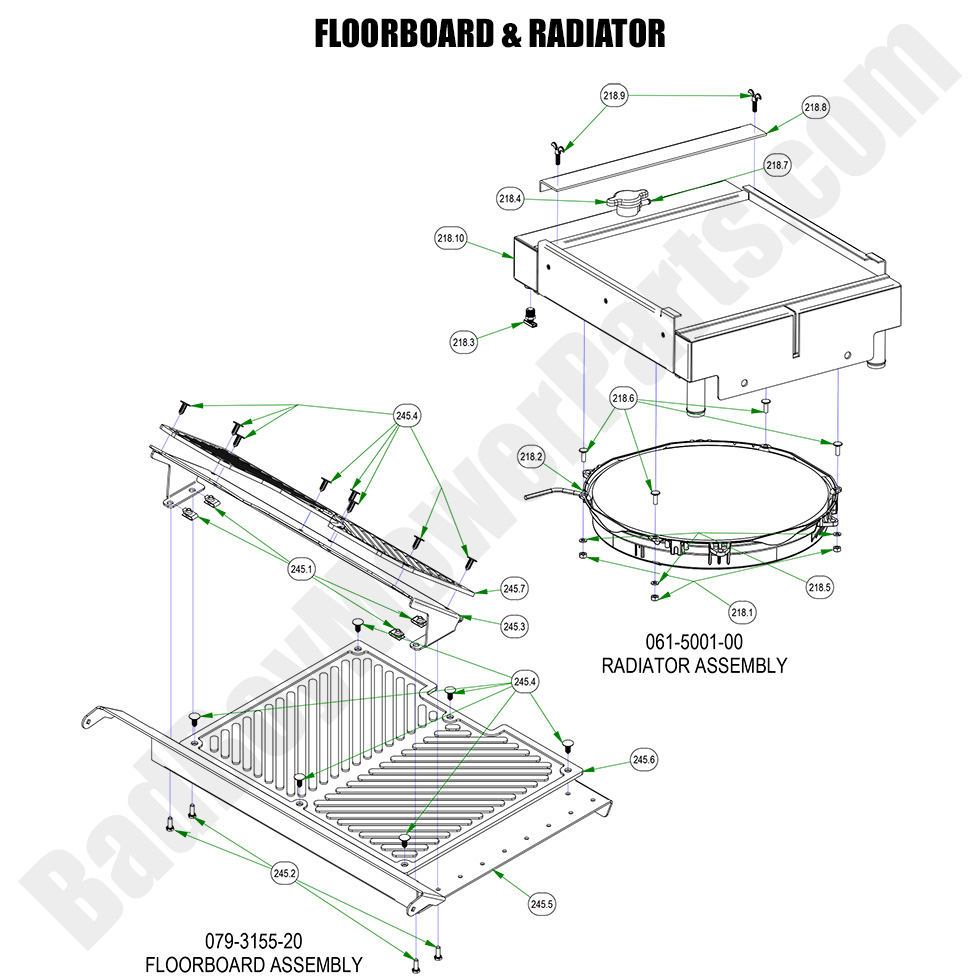

2023 Renegade - Diesel Floorboard & Radiator - Detail
  Position Number SKU Product Title Price

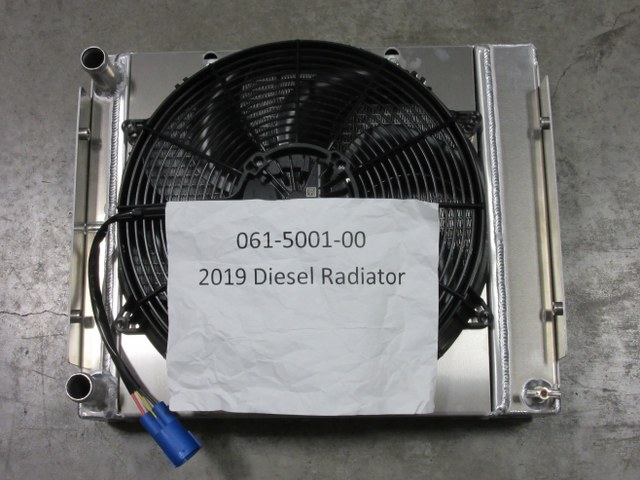

218.0 061-5001-00 061-5001-00 - 2019 Diesel Radiator
$1390.99

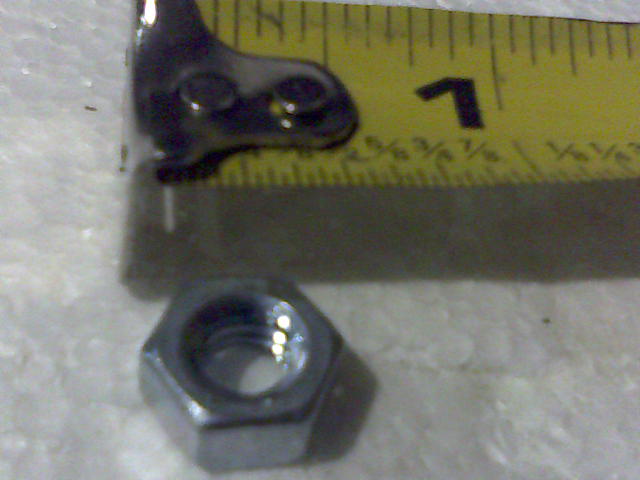

218.1 013-8039-00 013-8039-00 - 1/4-20 Hex Nuts Zinc
$2.99

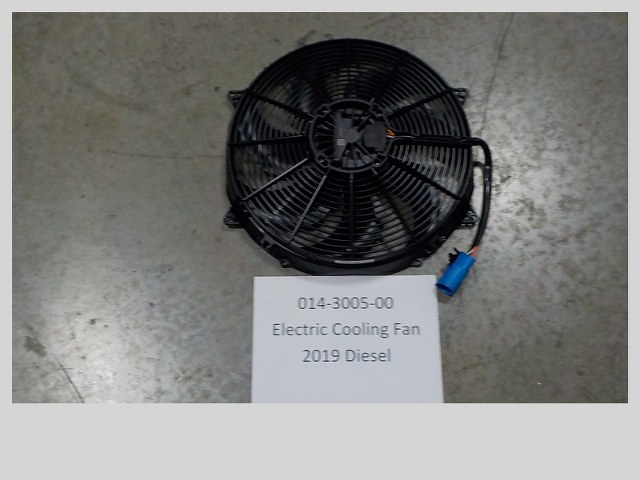

218.2 014-3005-00 014-3005-00 - Electric Fan for Radiator 2019-2021 Renegade Diesel
$781.99

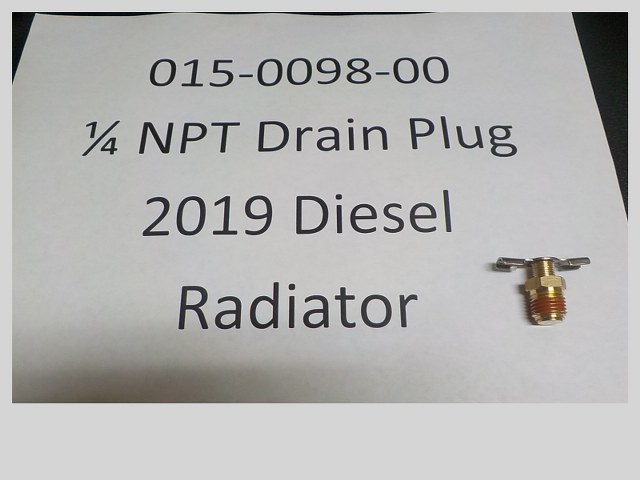

218.3 015-0098-00 015-0098-00 - 1/4 NPT Drain Plug for the Radiator 2019-2021 Renegade Diesel
$8.79

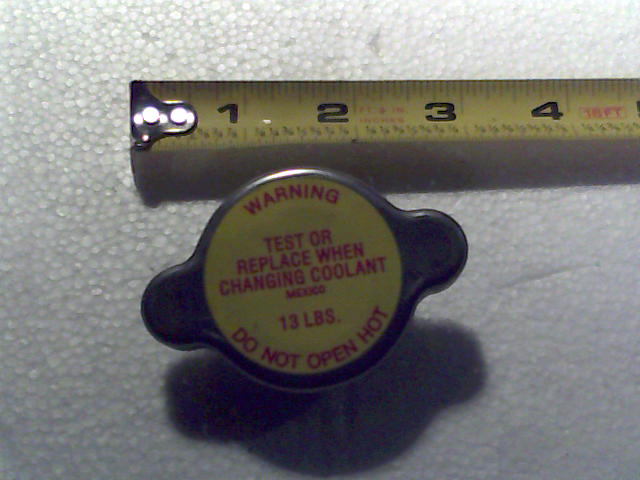

218.4 015-0104-00 015-0104-00 - Cat Diesel Radiator Cap
$31.22
218.5 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
218.6 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99
218.7 024-0015-00 024-0015-00 - 1/4 Barb to 3/16 NPT Overflow Fitting fits the 2019-2021 Renegade Diesel Radiator
$16.04
218.8 026-2008-00 026-2008-00 - Screen Retention Plate for 2019 Diesel Radiator Ki
$26.74

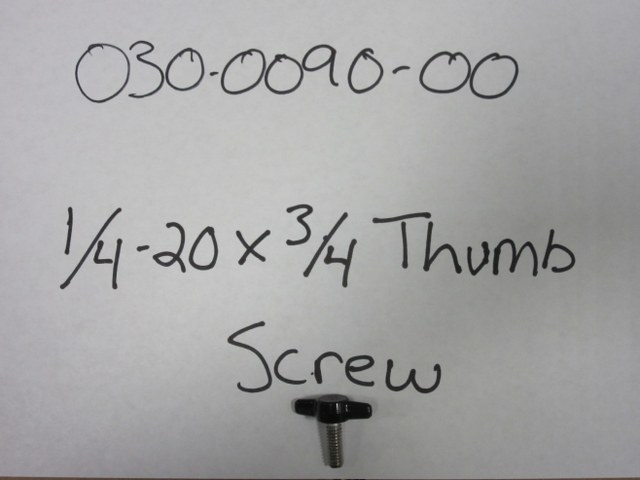

218.9 030-0090-00 030-0090-00 - 1/4-20 x 3/4 Thumb Screw
$7.36
245.1 013-0054-00 013-0054-00 - 1/4-20 Cage Nut
$2.99
245.2 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
245.3 026-2230-00 026-2230-00 - Adjustable Foot Plate 2019-2022 Rebel, Renegade & Rogue
$70.97
245.4 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
245.5 079-3155-00 079-3155-00 - Floorboard (See Models Used On For Detail)
$117.69
245.6 081-0050-00 081-0050-00 - Floor Mat 2019-2022 Rebel, Renegade & Rogue
$78.10
245.7 081-0051-00 081-0051-00 - Foot Plate Mat 2019-2023 Rebel, Renegade & Rogue
$78.10
