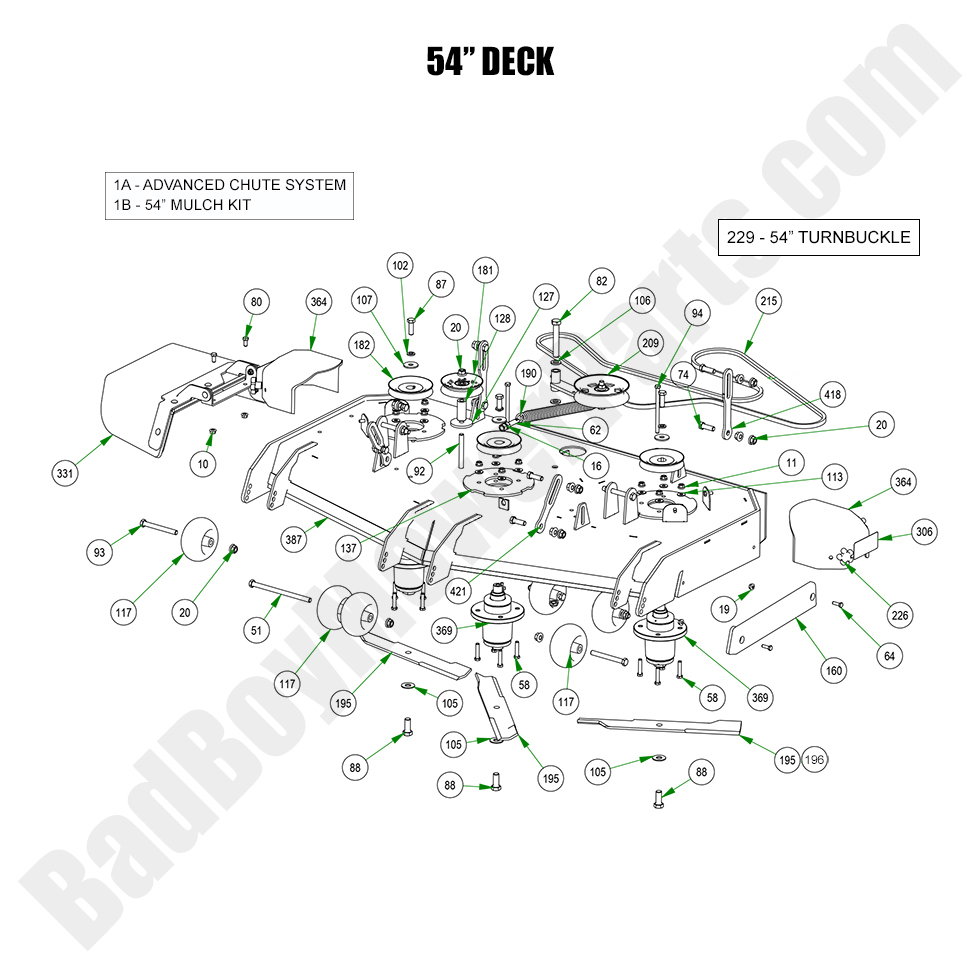

2023 Revolt 54" Deck Assembly

54" Deck Assembly

Find the parts for your 2023 Revolt at BadBoyMowerParts.com. We have the 54" Deck Assembly parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

2023 Revolt 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6048-00 088-6048-00 - Advanced Chute System for Revolt with 48", 54", and 61" Decks
$266.99
1B 210-0354-00 210-0354-00 - 2019-2024 54" Mulch Kit w/Blades (Not for MZ or Avenger)
$340.74
10 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
11 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
16 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
19 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
20 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
51 018-0046-00 018-0046-00 - 1/2-13 x 8" Grade 5 Hex Bolt
$4.06
58 018-0075-00 018-0075-00 - 3/8-16 x 1-3/4 Hex C/S (GR 5) ZC
$3.29
62 018-2004-50 018-2004-50 -2017-2022 All Thread (See Models Used On)
$12.94
64 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99
74 018-5006-00 018-5006-00 - 1/2-13 X 1-1/2 GR 5 Hex Bolt, Coarse Thread Bolt (For Use On Spindles Please Refer To Item Details)
$2.99
80 018-5250-00 018-5250-00 - 3/8-16 X 3/4 GR 5 Hex Bolts
$2.99
82 018-5311-00 018-5311-00 - 5/8-11 X 4 GR 5 Hex Bolts Zinc
$4.06
87 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 GR 5 Bolts Zinc, Fine Thread Bolt
$2.99
88 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
92 018-7049-00 018-7049-00 - 1/2 -13 x 4.25 gr. 5 hex bolt
$2.99
93 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 GR 5 Hex Bolts
$2.99
94 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt - Grade 5
$2.99
102 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
105 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
106 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
107 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
113 091-4019-00 091-4019-00 - 2019-2022 Revolt Deck Belt Route Decal
$6.04
117 022-1001-00 022-1001-00 - 2019-2024 Outlaw Series (Rebel, Renegade, Rogue) Deck Wheel
$17.11
127 025-0025-00 025-0025-00 -2019-2022 Round Spacer (See Models Used On For Details)
$7.28
128 025-0032-00 025-0032-00 - 2019-2022 Revolt Stationary Idler Spacer
$8.46
137 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
160 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
181 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
182 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
190 034-2030-00 034-2030-00 -2019-2024 Deck Spring (See Models Used On)
$31.22
195 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
196 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
209 039-6945-19 039-6945-19 - Revolt Deck Idler
$70.97
215 041-0120-00 041-0120-00 - Deck Belt (See Models Used On For More Details - Not for 54" MZ)
$88.80
226 045-6043-00 045-6043-00 - 5/16 Black Plastic Knob Spindle Cover
$4.39
229 048-7000-00 048-7000-00 - Toplink-Outlaw Decks (See Models Used On For Details) (obsolete)
use part #048-8000-00
$80.24
306 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
331 210-7000-98 210-7000-98 - Chute Assembly 2019-2022 Rebel, Revolt, Renegade & Rogue
$170.37
364 014-4006-00 014-4006-00 - 2023 Revolt Pulley Covers No Longer Available
Obsolete.
369 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$213.99
387 060-2327-00 060-2327-00 - 2023 54" Revolt Deck--Painted
$1497.99
421 039-2125-00 039-2125-00 - Outlaw Deck Hanger Bracket (See Models Used On For Details) (obsolete)
use part #039-2125-17
$15.60
