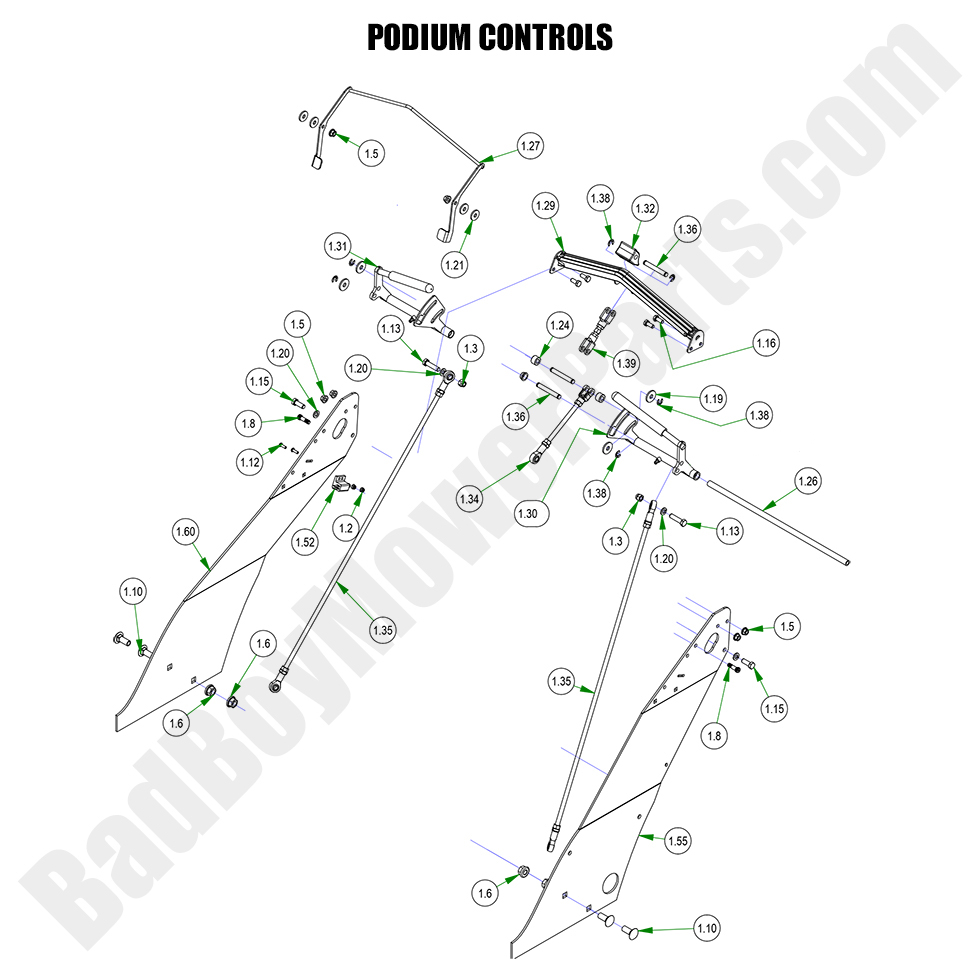

2023 Walk Behind Podium Controls

Podium Controls

Find the parts for your 2023 Walk Behind at BadBoyMowerParts.com. We have the Podium Controls parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

2023 Walk Behind Podium Controls
  Position Number SKU Product Title Price
1.2 019-5037-00 019-5037-00 - 3/8 Lockwasher Zinc
$2.99
1.2 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zin c Orange Nylon
$2.99
1.3 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zi nc Orange Nylon
$2.99
1.5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
1.6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
1.8 018-0076-00 018-0076-00 - 18-8 Stainless Steel Sholder Screw
$23.53
1.10 018-3003-00 018-3003-00 - 1/2 x 1 1/4 Carriage Bolt
$2.99
1.12 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
1.13 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
1.15 018-6049-00 018-6049-00 - 3/8-16 X 1 GR 5 Hex Bolts Zinc
$2.99
1.16 018-8063-00 018-8063-00 - 5/16-18 X 3/4 GR 5 Hex Bolts Z
$2.99
1.19 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
1.21 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
1.24 025-2025-00 025-2025-00 - MZ Tank Spacer
$2.99
1.26 028-0009-00 028-0009-00 - 2017-2022 Walk Behind Control Pivot Rod
$31.17
1.27 028-0043-00 028-0043-00 - 2020 Walk-Behind Presence-Weldment No Longer Available
Obsolete.
1.29 031-0039-70 031-0039-70 - 2020-2022 Walkbehind Overmolded Bolt on Handle
$64.19
1.30 031-0042-00 031-0042-00 - Walk-Behind Control Lever Assy-Left (See Models Used On For Detail)
$42.58
1.31 031-0043-00 031-0043-00 - Walk-Behind Control Lever Assy-Right (See Models Used ON For Detail)
$42.58
1.34 035-0002-98 035-0002-98 - 2017-2022 Walk Behind Speed Control Rod Assembly
$38.47
1.35 035-0007-98 035-0007-98 - 2020 Walk-Behind Push Rod Assembly
$42.79
1.36 035-0008-00 035-0008-00 - 2020 Walk-Behind Control Pin
$32.09
1.39 047-9000-00 047-9000-00 - Adjustable Yoke Male/Female
$14.12
1.52 077-0002-00 077-0002-00 - Safety Switch (See Models Used On For Detail)
$23.41
