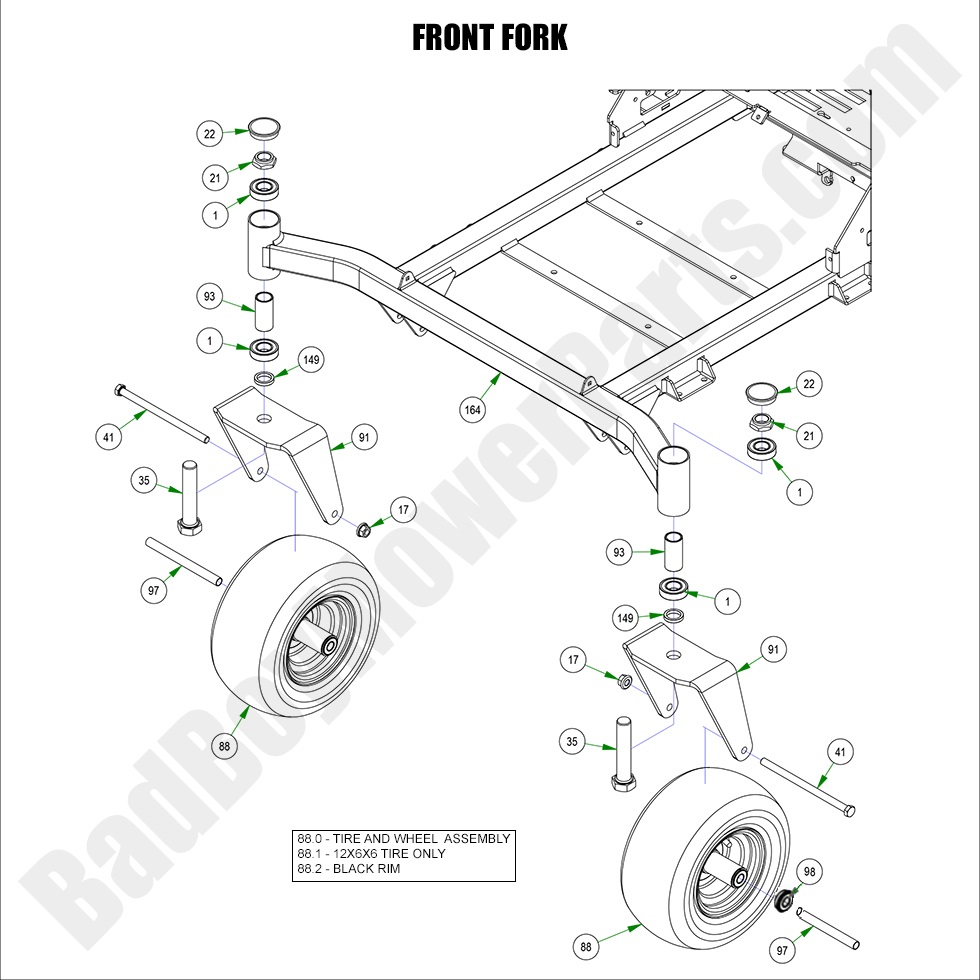

2023 ZT Avenger Front Fork

Front Fork

Find the parts for your 2023 ZT Avenger at BadBoyMowerParts.com. We have the Front Fork parts for all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

2023 ZT Avenger Front Fork
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
17 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
21 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine
$3.62
22 014-2025-00 014-2025-00 - 2017-2022 Caster Bearing Cover (See Models Used On For Details)
$2.99
35 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 ZC YELLOW
$6.48
41 018-0040-00 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt
$15.61
88.0 022-0007-00 022-0007-00 12X6X6 Black Wheel Assembly
$149.79
88.1 022-0010-00 022-0010-00 - 12x6x6 Front Tire
$78.10
88.2 022-0009-00 022-0009-00 - 6 x 4.50 Black Wheel
$85.27
91 023-0003-00 023-0003-00 - 2017-2024 ZT Front Fork
$39.04
93 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
97 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
149 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
