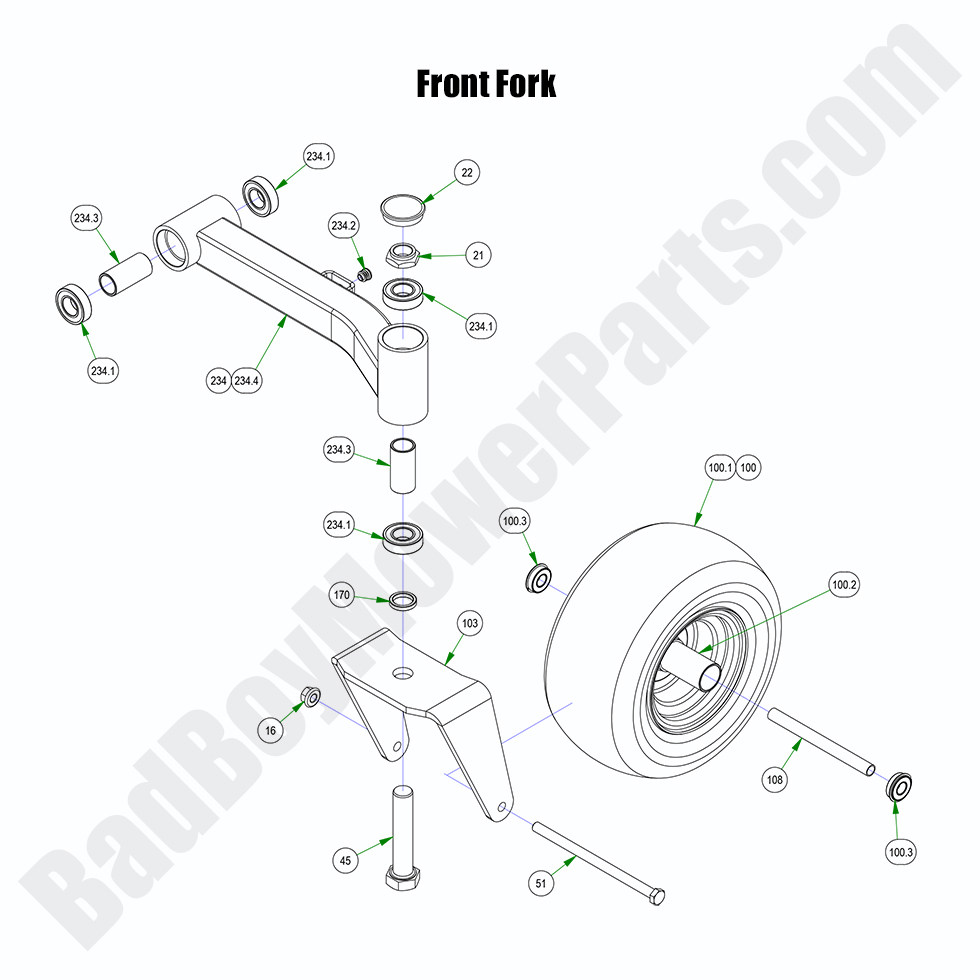

2023 ZT Elite Limited Front Fork

Front Fork

Find the parts for your 2023 ZT Elite Limited at BadBoyMowerParts.com. We have the front fork parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

2023 ZT Elite Limited Front Fork
  Position Number SKU Product Title Price
16 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
21 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine
$3.62
22 014-2025-00 014-2025-00 - 2017-2022 Caster Bearing Cover (See Models Used On For Details)
$2.99
45 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 ZC YELLOW
$6.48
51 018-0040-00 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt
$15.61
100.0 022-2017-00 022-2017-00 - 13 x 6.50 - 6 Black Tire and Wheel Assembly
$94.15
100.1 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
100.2 022-7007-00 022-7007-00 - 6 x 4.5 Black Wheel - Small Bore fits th
$56.81
100.3 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
108 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
170 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
234.0 250-1801-21 250-1801-21 - 2021-2022 ZT Suspension Arm Assembly Left
$106.99
234.1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
234.2 014-3010-00 014-3010-00 - 5/8 Round Insert - Deck
$2.99
234.3 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
234.4 250-1801-00 250-1801-00 - 2021-2022 ZT Suspension Component Left
$80.24
