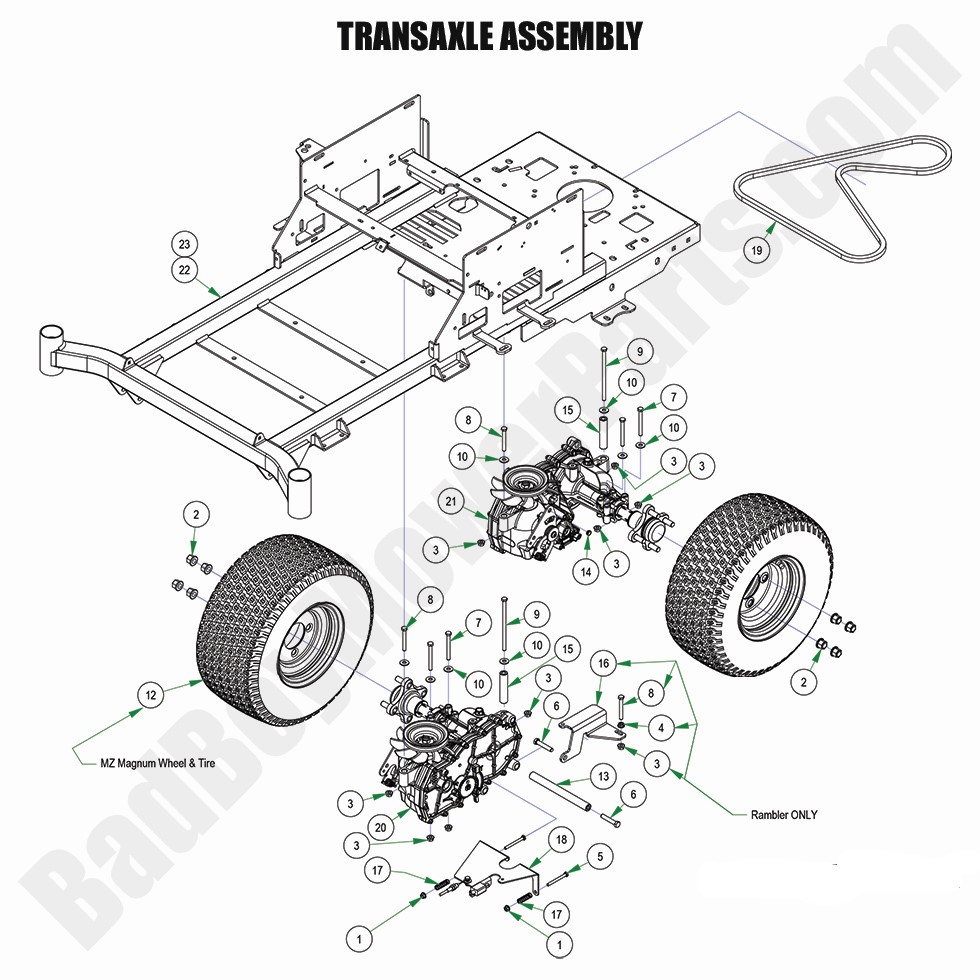

2024 MZ Magnum Transaxle Assembly

Transaxle Assembly

Find the parts for your 2024 MZ Magnum at BadBoyMowerParts.com. We have the MZ Transaxle Assembly parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

2024 MZ Magnum Transaxle Assembly
  Position Number SKU Product Title Price
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
5 018-1076-00 018-1076-00 - 1/4-20 x 2-1/2 Gr2 Hex C/S Zinc
$2.99
6 018-3000-00 018-3000-00 - 3/8-16 X 2 GR 5 Hex Bolts Zinc
$2.99
7 018-4701-00 018-4701-00 - 5/16-18 X 3 GR 5 Hex Bolt Zinc
$2.99
8 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
9 018-5355-00 018-5355-00 - 5/16-18 X 6 GR 5 Hex Bolt Zinc
$2.99
10 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
12 022-8050-22 022-8050-22 - 18x9.50-8 Tire and Wheel - Black Wheel
$175.99
13 025-0016-00 025-0016-00 - 2017-2022 Transaxle Spacer-MZ
$14.04
14 025-0070-00 025-0070-00 - 2017-2022 Transaxle Spacer
$6.41
17 034-3050-00 034-3050-00 - Spring-Brake Lock Bracket MZ
$2.99
19 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
20 050-4070-00 050-4070-00 - 2017-2022 - Right - MZ Models
$641.99
21 050-4071-00 050-4071-00 - 2017-2022 - Left - MZ Models
$641.99
