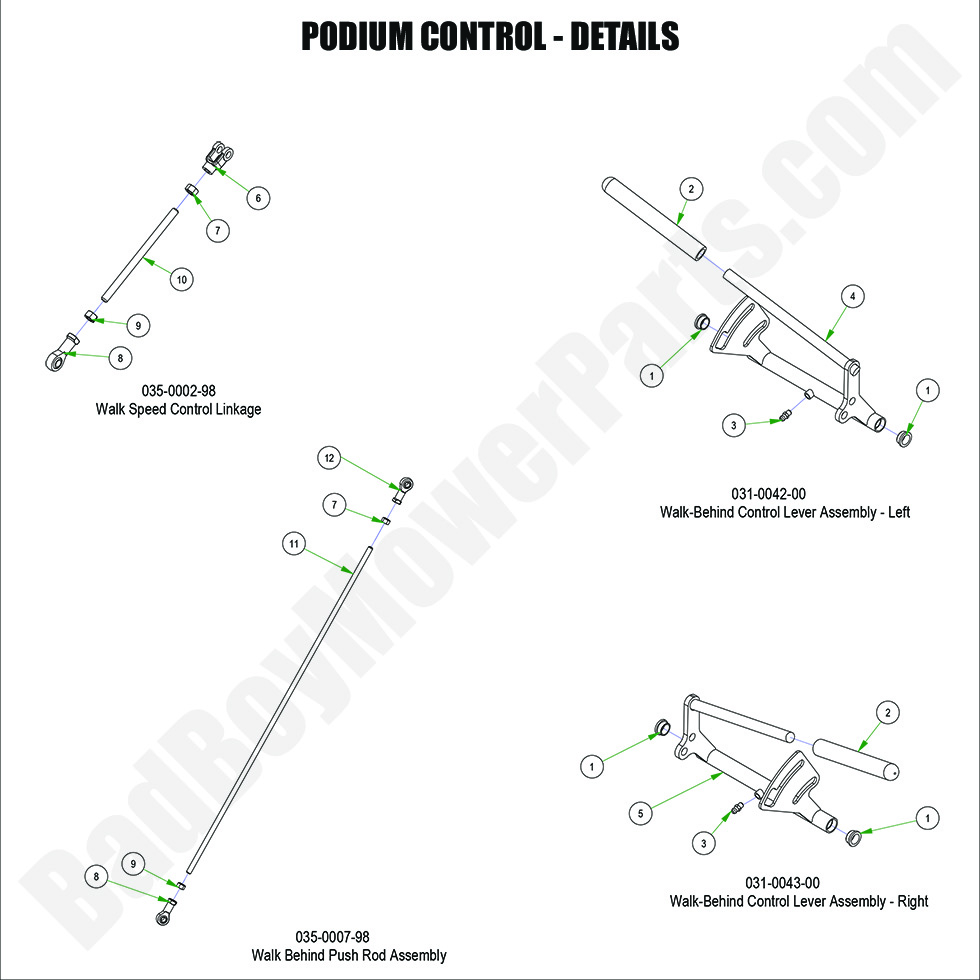

2024 Raider Podium Control - Details

Podium Control - Details

Find the parts for your 2024 Raider at BadBoyMowerParts.com. We have the Podium Control detail parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

2024 Raider Podium Control - Details
  Position Number SKU Product Title Price
1.0 031-0043-00 031-0043-00 - Walk-Behind Control Lever Assy-Right (See Models Used ON For Detail)
$42.58
1.0 031-0042-00 031-0042-00 - Walk-Behind Control Lever Assy-Left (See Models Used On For Detail)
$42.58
1 031-0032-00 031-0032-00 - Drive Arm Bushing (Plastic Flange) 2019-2022 Revolt, Renegade, Walk Behind & Maverick
$7.28
2 069-2014-00 069-2014-00 - 2019-2022 Cushioned Grip (See Models Used On For Details)
$8.01
3 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
4 031-0042-01 031-0042-01 - 2020-2022 Walk-Behind Control Lever Weldment-Left
$32.09
6.0 035-0002-98 035-0002-98 - 2017-2022 Walk Behind Speed Control Rod Assembly
$38.47
6.1 035-0007-98 035-0007-98 - 2020 Walk-Behind Push Rod Assembly
$42.79
6 046-0001-00 046-0001-00 - Walk Behind Left Hand Yoke Speed Control
$10.99
8 048-3000-00 048-3000-00 - Spherical Rod End-Outlaw Only (See Models Used On For Details)
$14.19
9 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nuts Zinc
$2.99
10 035-0002-00 035-0002-00 - Walk Behind Speed Control Rod (See Models Used On For Detail)
$17.07
11 035-0007-00 035-0007-00 - 2020 Walk-Behind Push Rod (Rod Only) No Longer Available
Obsolete.
12 048-3001-00 048-3001-00 - Left Handed Spherical Rod End
$10.99
