2024 Revolt (36" Deck) Fenders

Fenders

Find the parts for your 2024 Revolt (36" Decks) at BadBoyMowerParts.com. We have the Fender parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

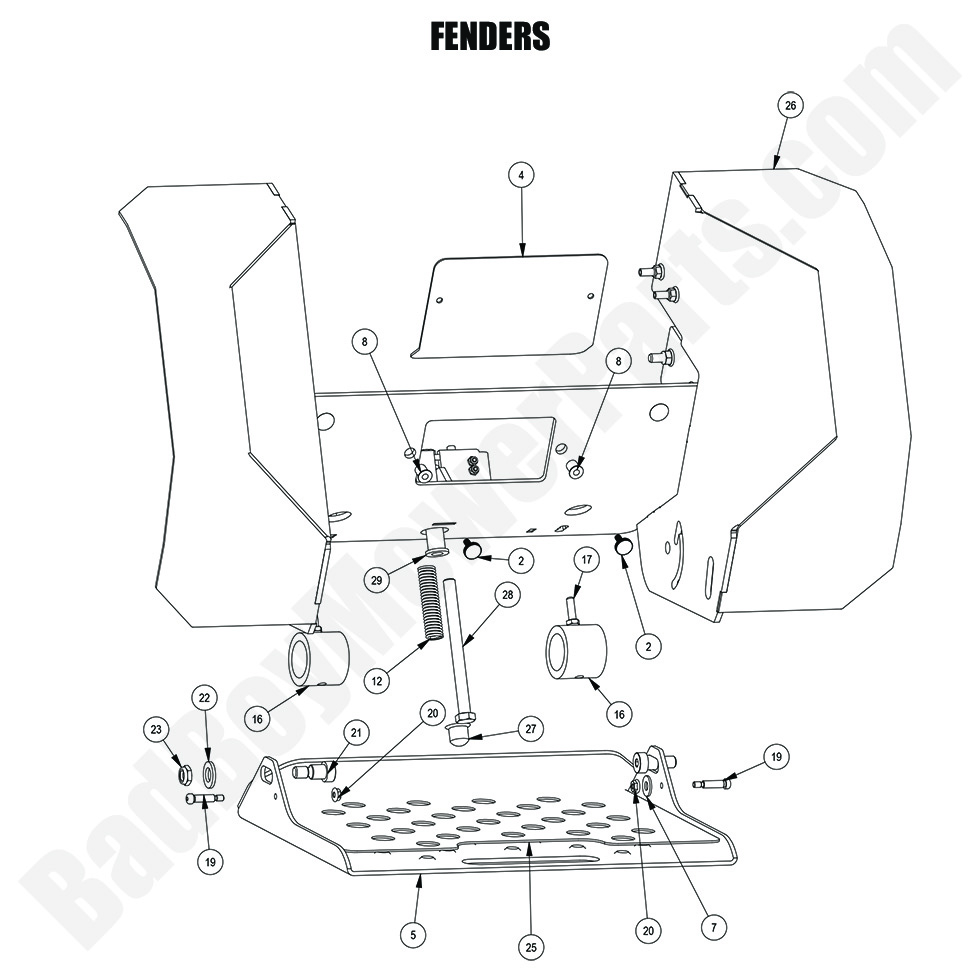

2024 Revolt (36" Deck) Fenders
  Position Number SKU Product Title Price

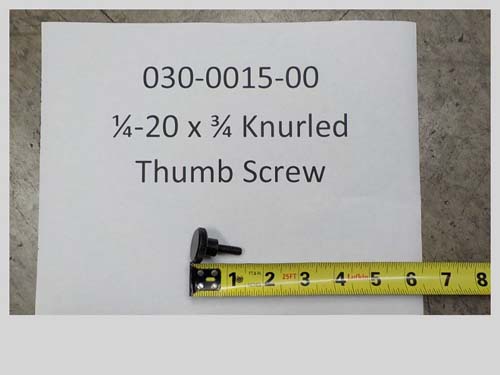

2 030-0015-00 030-0015-00 - 1/4-20 x 3/4 Knurled Thumb Screw
$16.04
4 026-0063-00 026-0063-00 - 2019-2022 Revolt Access Panel Plate
$35.48
5 026-0158-00 026-0158-00 - 36" Revolt Platform Plate (Not for 48"-61" Models)
$106.99
7 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99

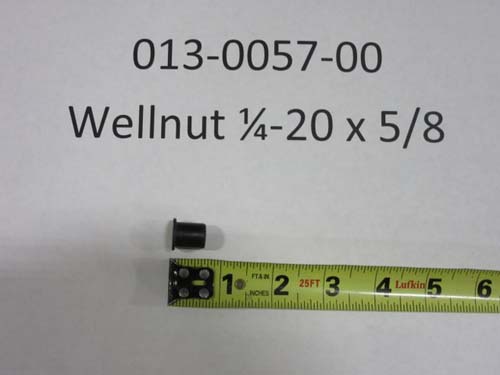

8 013-0057-00 013-0057-00 - Wellnut 1/4-20 x 5/8
$4.39
12 034-1001-00 034-1001-00 - 3-1/8" x 0.75 OD x 0.568 ID Compression Spring
$12.83
16 087-0003-00 087-0003-00 - 2019-2022 Revolt Platform Dampener
$85.17
17 018-2007-00 018-2007-00 - 5/16-18 X 1 GR 5 Hex Bolt Zinc
$2.99

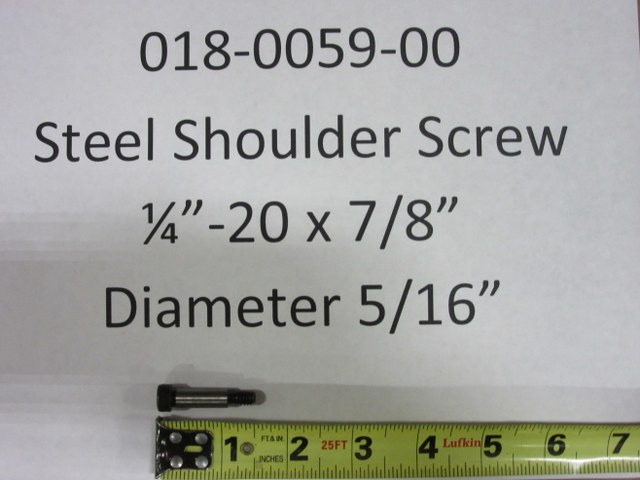

19 018-0059-00 018-0059-00 - Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16"
$4.39
20 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/ Serrations
$2.99
21 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
22 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
23 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknu t Zinc Orange Nylon
$2.99
25 088-0051-00 088-0051-00 - Grip Tape for 026-0158-00
$25.67
27 013-0029-00 013-0029-00 - Hex Nut Cap
$4.39
28 018-0062-00 018-0062-00 - 1/2-13 X 6" Hex Head Bolt Gr5
$3.29
29 032-0006-00 032-0006-00 - Nylon 6 6 Sleeve Washer
$19.25
