2024 Revolt (48"-61" Decks) Fender Assembly

Fender Assembly

Find the parts for your 2024 Revolt (48"-61" Decks) at BadBoyMowerParts.com. We have the Fender Assembly parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

2024 Revolt (48"-61" Decks) Fender Assembly
  Position Number SKU Product Title Price
2 030-0015-00 030-0015-00 - 1/4-20 x 3/4 Knurled Thumb Screw
$16.04
4 026-0063-00 026-0063-00 - 2019-2022 Revolt Access Panel Plate
$35.48
6 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
7 013-0057-00 013-0057-00 - Wellnut 1/4-20 x 5/8
$4.39
9 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
10 018-8052-00 018-8052-00 - 1/4-20 X 3/4 GR 5 Hex Bolts
$2.99
13 034-1001-00 034-1001-00 - 3-1/8" x 0.75 OD x 0.568 ID Compression Spring
$12.83
16 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
17 018-0059-00 018-0059-00 - Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16"
$4.39
18 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/ Serrations
$2.99
19 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
20 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
21 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknu t Zinc Orange Nylon
$2.99
22 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 GR 5 Hex Bolt
$2.99
27 088-0050-00 088-0050-00 - Grip Tape for 026-0062-00
$21.39

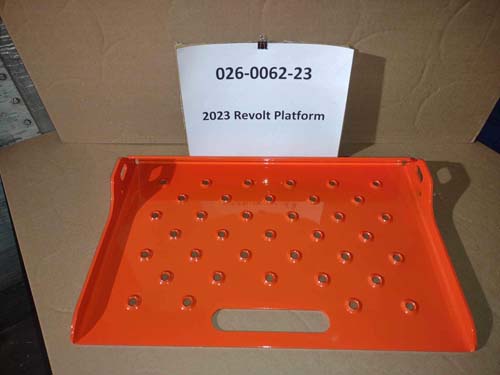

29 026-0062-23 026-0062-23 - 2023 Revolt Platform
$192.59
30 201-1125-00 201-1125-00 2023-2024 48/54" Stand On Platform Support - Orange
$192.99
31 013-0029-00 013-0029-00 - Hex Nut Cap
$4.39
32 018-0062-00 018-0062-00 - 1/2-13 X 6" Hex Head Bolt Gr5
$3.29
33 032-0006-00 032-0006-00 - Nylon 6 6 Sleeve Washer
$19.25
